Fujitsu PRIMERGY TX1330 M6 SPECpower_ssj2008 = 12,890 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Mar 23, 2025
Hardware Availability: Apr-2025 Software Availability: Jan-2024 Publication: Apr 9, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.9% 1,396,439 93.6 14,916
90% 91.2% 1,274,884 85.6 14,885
80% 79.7% 1,113,458 72.0 15,459
70% 69.9% 977,230 63.7 15,341
60% 60.2% 840,844 58.1 14,465
50% 49.8% 696,455 52.2 13,337
40% 39.9% 557,626 46.7 11,936
30% 30.1% 419,872 41.2 10,179
20% 20.0% 279,401 35.3 7,923
10% 10.0% 140,376 28.8 4,874
Active Idle 0 19.7 0
∑ssj_ops / ∑power = 12,890

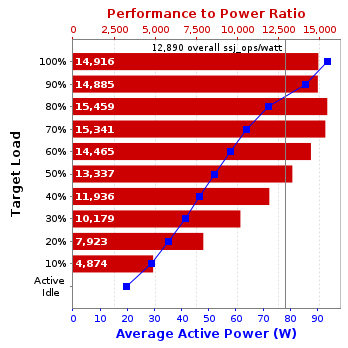

Graph of results
System Under Test
Set: 'TX1330M6'
Set Identifier: TX1330M6
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY TX1330 M6
Form Factor: Tower
CPU Name: Intel Xeon 6369P
CPU Characteristics: 8-Core, 3.30 GHz, 24 MB L3 Cache
CPU Frequency (MHz): 3300
CPU(s) Enabled: 8 cores, 1 chip, 8 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 2 x 16384 MB
Memory Details: 2 x 16 GB 1Rx8 DDR5-4800 U ECC; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: Standard 450W Platinum PSU, S26113-E663-V50-1
Disk Drive: 1 x M.2 SSD 240GB, PY-MF24YN5
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x RJ45 with integrated LEDs for fixed onboard 1Gb LAN
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver
Operating System (OS): Windows Server 2022 Standard
OS Version: Version 21H2, OS build 20348.1906
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:+UseLargePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:FreqInlineSize=2500 -XX:MaxInlineSize=270 -XX:UseAVX=0 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:+UseAdaptiveSizePolicy -XX:+UseParallelGC -XX:+UseBiasedLocking -XX:InitialTenuringThreshold=12 -XX:LoopUnrollLimit=45 -XX:+OptimizeFill
JVM Affinity: START /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000]
JVM Instances: 8
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: R2.1.0
Management Firmware Version: 2.58S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings

Set the following options in BIOS.

Management Firmware Settings
None
System Under Test Notes

Set the following options in OS.

Execute the following commands in OS.

Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX2530 M2
CPU Description: 2 x Intel Xeon E5-2643 v4
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019 Standard
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.211-b12, mixed mode), version 1.8.0_211
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: PW3336
Serial Number: 170213562
Connectivity: RS-232
Input Connection: Default
Metrology Institute: AIST (National Institute of Advanced Science and Technology)
Accredited by: Kyosai Technos Co.,Ltd.
Calibration Label: RY246003096
Date of Calibration: 18-Jun-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 93.6 20.3
90% 85.6 20.4
80% 72.0 20.4
70% 63.7 20.4
60% 58.1 20.4
50% 52.2 20.3
40% 46.7 20.2
30% 41.2 20.2
20% 35.3 20.2
10% 28.8 20.2
Active Idle 19.7 20.2
Line Standard Minimum Temperature (°C) Elevation (m)
200V / 50 Hz / 1 phase / 2 wires 20.2 15
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,400,411
Calibration 2     1,397,568
Calibration 3     1,396,767
ssj_ops@calibrated=1,397,168
100% 99.9% 1,397,168 1,396,439
90% 91.2% 1,257,451 1,274,884
80% 79.7% 1,117,734 1,113,458
70% 69.9% 978,017 977,230
60% 60.2% 838,301 840,844
50% 49.8% 698,584 696,455
40% 39.9% 558,867 557,626
30% 30.1% 419,150 419,872
20% 20.0% 279,434 279,401
10% 10.0% 139,717 140,376
Active Idle   0 0

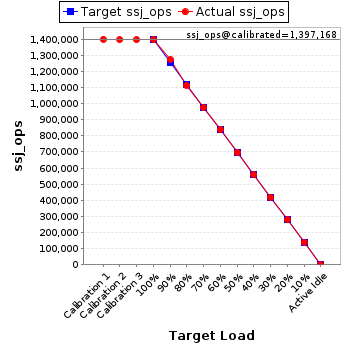

Graph of results
See the Host Performance Report for additional details.
