Hewlett Packard Enterprise ProLiant Compute ML350 Gen12 SPECpower_ssj2008 = 19,150 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 8, 2025
Hardware Availability: Mar-2025 Software Availability: Oct-2024 Publication: Apr 25, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 23,361,330 981 23,811
90% 90.0% 21,065,882 961 21,916
80% 80.0% 18,740,783 873 21,473
70% 70.0% 16,405,200 826 19,851
60% 60.0% 14,044,618 702 19,993
50% 50.0% 11,710,490 540 21,701
40% 40.0% 9,364,347 473 19,812
30% 30.0% 7,025,018 415 16,932
20% 20.0% 4,684,844 367 12,760
10% 10.0% 2,340,975 317 7,389
Active Idle 0 268 0
∑ssj_ops / ∑power = 19,150

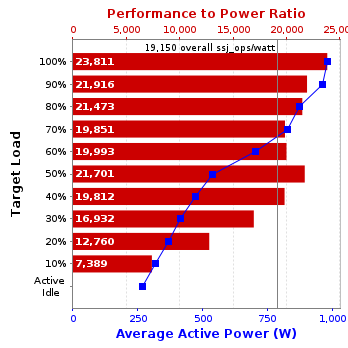

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant Compute ML350 Gen12
Form Factor: Tower
CPU Name: Intel Xeon 6787P Processor 2.0 GHz
CPU Characteristics: 86 core, 2.0 GHz, 336 MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 172 cores, 2 chips, 86 cores/chip
Hardware Threads: 344 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 336 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32 GB 2Rx8 PC5-6400B-R; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 2200
Power Supply Details: HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit 96% (P44712-B21)
Disk Drive: 1 x HPE 1.6tb Nvme High Performance Mixed Use Sff Sc U.3 Tlc Ssd
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x BCM 5719 1Gb 4p BASE-T OCP Adptr (P51178-B21)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: 21H2 (Build 20348.2700)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.13+10-LTS-268, mixed mode)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseBiasedLocking -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [[0x3,0xc - 0x3000000000,0xc000000000],0x70000000000]
JVM Instances: 168
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: U68 v1.20 (02/04/2025)
Management Firmware Version: 1.01.00 pass 142 Jan 01 2025
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings

BIOS Platform Configuration (RBSU):

Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: HPE
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-H48PA-80-1
Date of Calibration: 01-Aug-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 981 22.2
90% 961 22.3
80% 873 22.6
70% 826 22.6
60% 702 22.4
50% 540 22.3
40% 473 22.3
30% 415 22.3
20% 367 22.1
10% 317 21.8
Active Idle 268 21.7
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.7 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     24,085,033
Calibration 2     23,398,847
Calibration 3     23,439,897
ssj_ops@calibrated=23,419,372
100% 99.8% 23,419,372 23,361,330
90% 90.0% 21,077,435 21,065,882
80% 80.0% 18,735,498 18,740,783
70% 70.0% 16,393,560 16,405,200
60% 60.0% 14,051,623 14,044,618
50% 50.0% 11,709,686 11,710,490
40% 40.0% 9,367,749 9,364,347
30% 30.0% 7,025,812 7,025,018
20% 20.0% 4,683,874 4,684,844
10% 10.0% 2,341,937 2,340,975
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
