Hewlett Packard Enterprise ProLiant Compute DL360 Gen12 SPECpower_ssj2008 = 22,060 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 20, 2025
Hardware Availability: Mar-2025 Software Availability: Oct-2024 Publication: Apr 25, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 20,099,043 872 23,047
90% 90.0% 18,160,542 701 25,896
80% 80.0% 16,144,293 570 28,307
70% 70.0% 14,131,382 503 28,113
60% 60.0% 12,115,807 452 26,820
50% 50.0% 10,080,251 418 24,107
40% 40.0% 8,069,587 388 20,773
30% 30.0% 6,061,721 335 18,121
20% 20.0% 4,026,010 294 13,695
10% 10.0% 2,016,482 263 7,677
Active Idle 0 232 0
∑ssj_ops / ∑power = 22,060

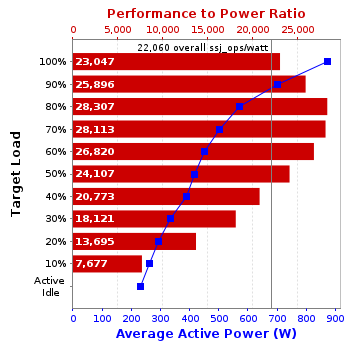

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant Compute DL360 Gen12
Form Factor: 1U
CPU Name: Intel Xeon 6780E 2.2 GHz
CPU Characteristics: 144 core, 2.2GHz, 108MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 288 cores, 2 chips, 144 cores/chip
Hardware Threads: 288 (1 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
Tertiary Cache: 108 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32 GB 2Rx8 PC5-5600; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit 96% (P03178-B21)
Disk Drive: 1 x HPE 1.6tb Nvme High Performance Mixed Use Sff Sc U.3 Tlc SSD
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x BCM 5719 1Gb 4p BASE-T OCP Adptr (P51178-B21)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP6
OS Version: 6.4.0-150600.21-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.13+10-LTS-268, mixed mode)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:+UseBiasedLocking -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: numactl -C $((physicalCoreId + 0)),$((physicalCoreId + 1)),$((physicalCoreId + 144)),$((physicalCoreId + 145))
JVM Instances: 72
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: U68 v1.20 (02/04/2025)
Management Firmware Version: 1.01.00 Jan 01 2025
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings

BIOS Platform Configuration (RBSU):

Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: HPE
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2019
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310E
Serial Number: C2SF14002V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-H48PA-200-1
Date of Calibration: 01-Aug-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 872 30.4
90% 701 31.1
80% 570 31.3
70% 503 31.6
60% 452 31.8
50% 418 31.5
40% 388 31.2
30% 335 30.8
20% 294 30.3
10% 263 29.8
Active Idle 232 29.1
Line Standard Minimum Temperature (°C) Elevation (m)
210V / 60 Hz / 1 phase / 2 wires 29.1 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     16,032,229
Calibration 2     20,185,730
Calibration 3     20,174,634
ssj_ops@calibrated=20,180,182
100% 99.6% 20,180,182 20,099,043
90% 90.0% 18,162,164 18,160,542
80% 80.0% 16,144,146 16,144,293
70% 70.0% 14,126,127 14,131,382
60% 60.0% 12,108,109 12,115,807
50% 50.0% 10,090,091 10,080,251
40% 40.0% 8,072,073 8,069,587
30% 30.0% 6,054,055 6,061,721
20% 20.0% 4,036,036 4,026,010
10% 10.0% 2,018,018 2,016,482
Active Idle   0 0

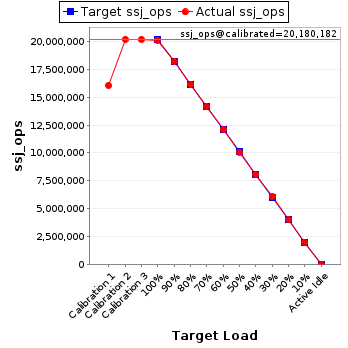

Graph of results
See the Host Performance Report for additional details.
