SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| xFusion Digital Technologies Co., Ltd FusionServer 2288H V8 | SPECpower_ssj2008 = 21,679 overall ssj_ops/watt | ||||
| Test Sponsor: | xFusion Digital Technologies Co., Ltd | SPEC License #: | 6488 | Test Method: | Single Node |
| Tested By: | xFusion Digital Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Mar 24, 2025 |
| Hardware Availability: | Apr-2025 | Software Availability: | Jan-2025 | Publication: | Apr 9, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

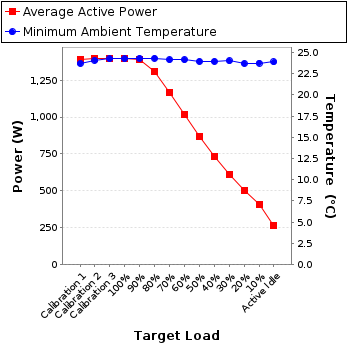

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,393 | 23.7 |
| Calibration 2 | 1,393 | 24.1 |
| Calibration 3 | 1,396 | 24.2 |
| 100% | 1,398 | 24.2 |
| 90% | 1,392 | 24.3 |
| 80% | 1,308 | 24.3 |
| 70% | 1,164 | 24.1 |
| 60% | 1,017 | 24.1 |
| 50% | 871 | 23.9 |
| 40% | 731 | 23.9 |
| 30% | 609 | 24.0 |
| 20% | 502 | 23.7 |
| 10% | 405 | 23.8 |
| Active Idle | 267 | 23.9 |

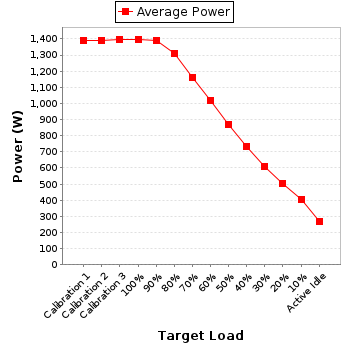

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA Inc. |
| Model: | WT210 |
| Serial Number: | 91M838229 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | 24BC8740B4E25737E0 |
| Date of Calibration: | 29-Jul-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | TM-STD30 |
| Driver Version: | 4.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 219 | 300.0 | 6.38 | 10.0 | 0.998 | 1,393 | 0.4% |
| Calibration 2 | 222 | 300.0 | 6.28 | 10.0 | 0.998 | 1,393 | 0.4% |
| Calibration 3 | 222 | 300.0 | 6.29 | 10.0 | 0.998 | 1,396 | 0.4% |
| 100% | 222 | 300.0 | 6.30 | 10.0 | 0.998 | 1,398 | 0.4% |
| 90% | 222 | 300.0 | 6.28 | 10.0 | 0.998 | 1,392 | 0.4% |
| 80% | 222 | 300.0 | 5.89 | 10.0 | 0.998 | 1,308 | 0.4% |
| 70% | 223 | 300.0 | 5.24 | 10.0 | 0.997 | 1,164 | 0.4% |
| 60% | 223 | 300.0 | 4.59 | 10.0 | 0.996 | 1,017 | 0.5% |
| 50% | 224 | 300.0 | 3.91 | 5.0 | 0.996 | 871 | 0.3% |
| 40% | 225 | 300.0 | 3.27 | 5.0 | 0.994 | 731 | 0.4% |
| 30% | 225 | 300.0 | 2.73 | 5.0 | 0.991 | 609 | 0.4% |
| 20% | 225 | 300.0 | 2.26 | 5.0 | 0.989 | 502 | 0.5% |
| 10% | 226 | 300.0 | 1.82 | 5.0 | 0.985 | 405 | 0.6% |
| Active Idle | 227 | 300.0 | 1.21 | 5.0 | 0.973 | 267 | 0.8% |
