SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R770 | SPECpower_ssj2008 = 21,232 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Mar 5, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Oct-2024 | Publication: | Mar 26, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

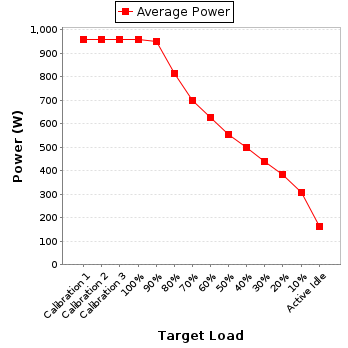

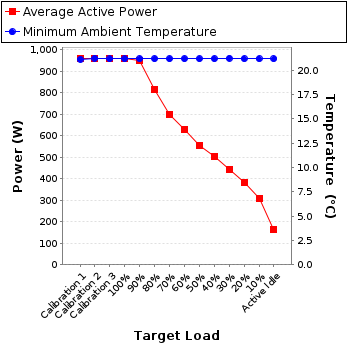

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 958 | 21.1 |
| Calibration 2 | 960 | 21.2 |
| Calibration 3 | 961 | 21.2 |
| 100% | 960 | 21.2 |
| 90% | 950 | 21.2 |
| 80% | 816 | 21.2 |
| 70% | 701 | 21.2 |
| 60% | 628 | 21.2 |
| 50% | 553 | 21.2 |
| 40% | 501 | 21.2 |
| 30% | 442 | 21.2 |
| 20% | 383 | 21.2 |
| 10% | 309 | 21.2 |
| Active Idle | 164 | 21.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310E |
| Serial Number: | T11733387 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T11733387 |
| Date of Calibration: | 24-Jul-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 4.60 | 5.0 | 0.995 | 958 | 0.2% |
| Calibration 2 | 209 | 300.0 | 4.60 | 5.0 | 0.996 | 960 | 0.2% |
| Calibration 3 | 209 | 300.0 | 4.61 | 5.0 | 0.996 | 961 | 0.2% |
| 100% | 209 | 300.0 | 4.60 | 5.0 | 0.996 | 960 | 0.2% |
| 90% | 209 | 300.0 | 4.56 | 5.0 | 0.995 | 950 | 0.2% |
| 80% | 210 | 300.0 | 3.92 | 5.0 | 0.994 | 816 | 0.2% |
| 70% | 210 | 300.0 | 3.37 | 5.0 | 0.992 | 701 | 0.2% |
| 60% | 210 | 300.0 | 3.02 | 5.0 | 0.990 | 628 | 0.3% |
| 50% | 210 | 300.0 | 2.67 | 5.0 | 0.989 | 553 | 0.3% |
| 40% | 210 | 300.0 | 2.42 | 5.0 | 0.988 | 501 | 0.3% |
| 30% | 210 | 300.0 | 2.13 | 5.0 | 0.987 | 442 | 0.3% |
| 20% | 210 | 300.0 | 1.85 | 5.0 | 0.986 | 383 | 0.3% |
| 10% | 210 | 300.0 | 1.50 | 2.0 | 0.981 | 309 | 0.2% |
| Active Idle | 210 | 300.0 | 0.823 | 2.0 | 0.952 | 164 | 0.3% |
