SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant Compute DL360 Gen12 | SPECpower_ssj2008 = 19,190 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 5, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Oct-2024 | Publication: | Feb 25, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

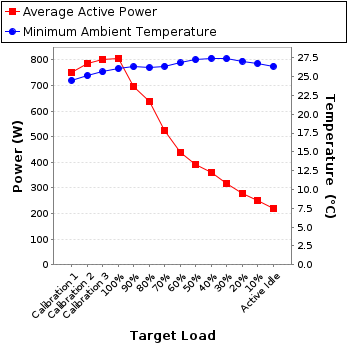

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 752 | 24.5 |
| Calibration 2 | 787 | 25.1 |
| Calibration 3 | 800 | 25.6 |
| 100% | 807 | 26.1 |
| 90% | 695 | 26.3 |
| 80% | 638 | 26.2 |
| 70% | 523 | 26.4 |
| 60% | 439 | 26.8 |
| 50% | 391 | 27.2 |
| 40% | 361 | 27.4 |
| 30% | 319 | 27.4 |
| 20% | 279 | 27.1 |
| 10% | 249 | 26.8 |
| Active Idle | 221 | 26.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310E |
| Serial Number: | C2SF14002V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H48PA-200-1 |
| Date of Calibration: | 01-Aug-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

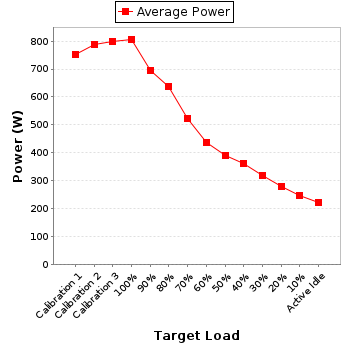

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 3.65 | 5.0 | 0.995 | 752 | 0.2% |
| Calibration 2 | 207 | 300.0 | 3.82 | 5.0 | 0.996 | 787 | 0.2% |
| Calibration 3 | 207 | 300.0 | 3.88 | 5.0 | 0.996 | 800 | 0.2% |
| 100% | 207 | 300.0 | 3.91 | 5.0 | 0.996 | 807 | 0.2% |
| 90% | 207 | 300.0 | 3.38 | 5.0 | 0.994 | 695 | 0.2% |
| 80% | 207 | 300.0 | 3.11 | 5.0 | 0.993 | 638 | 0.2% |
| 70% | 207 | 300.0 | 2.55 | 5.0 | 0.990 | 523 | 0.3% |
| 60% | 207 | 300.0 | 2.21 | 5.0 | 0.956 | 439 | 0.3% |
| 50% | 207 | 300.0 | 1.98 | 5.0 | 0.950 | 391 | 0.4% |
| 40% | 208 | 300.0 | 1.83 | 5.0 | 0.952 | 361 | 0.4% |
| 30% | 208 | 300.0 | 1.63 | 2.0 | 0.941 | 319 | 0.3% |
| 20% | 208 | 300.0 | 1.43 | 2.0 | 0.940 | 279 | 0.3% |
| 10% | 208 | 300.0 | 1.28 | 2.0 | 0.936 | 249 | 0.3% |
| Active Idle | 207 | 300.0 | 1.15 | 2.0 | 0.925 | 221 | 0.3% |
