SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant Compute DL380a Gen12 | SPECpower_ssj2008 = 21,837 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 5, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Oct-2024 | Publication: | Feb 25, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

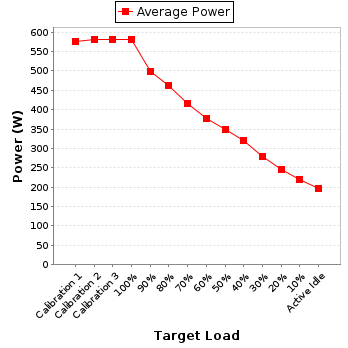

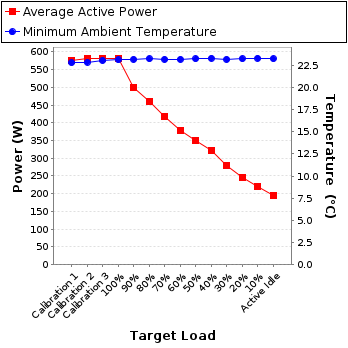

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 576 | 22.8 |
| Calibration 2 | 581 | 22.9 |
| Calibration 3 | 582 | 23.1 |
| 100% | 581 | 23.1 |
| 90% | 500 | 23.2 |
| 80% | 461 | 23.2 |
| 70% | 416 | 23.2 |
| 60% | 379 | 23.2 |
| 50% | 350 | 23.2 |
| 40% | 322 | 23.3 |
| 30% | 279 | 23.2 |
| 20% | 247 | 23.2 |
| 10% | 221 | 23.3 |
| Active Idle | 196 | 23.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91K218964 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H16YM-120-1 |
| Date of Calibration: | 06-Jun-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 3.09 | 5.0 | 0.893 | 576 | 0.5% |
| Calibration 2 | 209 | 300.0 | 3.11 | 5.0 | 0.895 | 581 | 0.5% |
| Calibration 3 | 209 | 300.0 | 3.12 | 5.0 | 0.895 | 582 | 0.5% |
| 100% | 209 | 300.0 | 3.11 | 5.0 | 0.894 | 581 | 0.5% |
| 90% | 209 | 300.0 | 2.77 | 5.0 | 0.865 | 500 | 0.6% |
| 80% | 209 | 300.0 | 2.61 | 5.0 | 0.846 | 461 | 0.6% |
| 70% | 209 | 300.0 | 2.42 | 5.0 | 0.821 | 416 | 0.6% |
| 60% | 209 | 300.0 | 2.28 | 5.0 | 0.794 | 379 | 0.7% |
| 50% | 209 | 300.0 | 2.17 | 5.0 | 0.770 | 350 | 0.7% |
| 40% | 210 | 300.0 | 2.07 | 5.0 | 0.742 | 322 | 0.8% |
| 30% | 209 | 300.0 | 1.92 | 5.0 | 0.694 | 279 | 0.9% |
| 20% | 209 | 300.0 | 1.82 | 2.0 | 0.646 | 247 | 0.6% |
| 10% | 210 | 300.0 | 1.75 | 2.0 | 0.603 | 221 | 0.7% |
| Active Idle | 210 | 300.0 | 1.67 | 2.0 | 0.559 | 196 | 0.8% |
