SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Supermicro SYS-622B-TRT | SPECpower_ssj2008 = 15,802 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | Feb 4, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Jan-2025 | Publication: | Feb 25, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

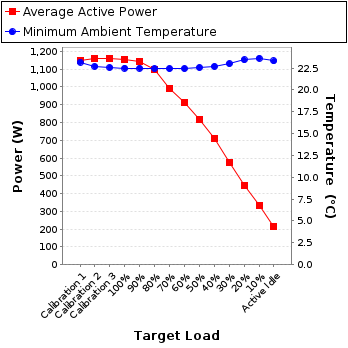

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,149 | 23.2 |
| Calibration 2 | 1,158 | 22.7 |
| Calibration 3 | 1,161 | 22.6 |
| 100% | 1,157 | 22.5 |
| 90% | 1,141 | 22.5 |
| 80% | 1,096 | 22.4 |
| 70% | 991 | 22.4 |
| 60% | 911 | 22.4 |
| 50% | 819 | 22.6 |
| 40% | 707 | 22.7 |
| 30% | 576 | 23.0 |
| 20% | 447 | 23.4 |
| 10% | 333 | 23.6 |
| Active Idle | 214 | 23.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT310 |
| Serial Number: | C3RF27027E |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Omnio Calibration Lab. Co., Ltd. |
| Calibration Label: | CI240131001 |
| Date of Calibration: | 13-Jan-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Cleware USB-Temp |
| Driver Version: | 10.0.17763.719 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10 mm in front of SUT main air intake |

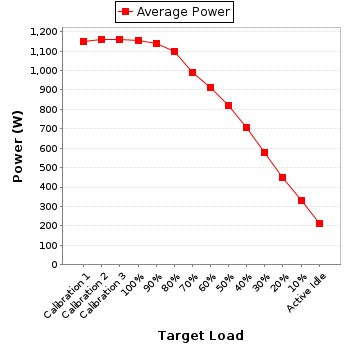

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 226 | 300.0 | 5.09 | 10.0 | 0.999 | 1,149 | 0.4% |
| Calibration 2 | 226 | 300.0 | 5.12 | 10.0 | 0.999 | 1,158 | 0.4% |
| Calibration 3 | 226 | 300.0 | 5.14 | 10.0 | 0.999 | 1,161 | 0.4% |
| 100% | 226 | 300.0 | 5.12 | 10.0 | 0.999 | 1,157 | 0.4% |
| 90% | 226 | 300.0 | 5.05 | 10.0 | 0.999 | 1,141 | 0.4% |
| 80% | 226 | 300.0 | 4.85 | 5.0 | 0.999 | 1,096 | 0.3% |
| 70% | 227 | 300.0 | 4.38 | 5.0 | 0.998 | 991 | 0.3% |
| 60% | 227 | 300.0 | 4.03 | 5.0 | 0.998 | 911 | 0.3% |
| 50% | 227 | 300.0 | 3.62 | 5.0 | 0.997 | 819 | 0.3% |
| 40% | 228 | 300.0 | 3.12 | 5.0 | 0.995 | 707 | 0.3% |
| 30% | 228 | 300.0 | 2.58 | 5.0 | 0.982 | 576 | 0.4% |
| 20% | 228 | 300.0 | 1.99 | 2.0 | 0.984 | 447 | 0.3% |
| 10% | 228 | 300.0 | 1.49 | 2.0 | 0.976 | 333 | 0.3% |
| Active Idle | 229 | 300.0 | 0.981 | 2.0 | 0.952 | 214 | 0.4% |
