SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| xFusion Digital Technologies Co., Ltd FusionServer 2288H V7 | SPECpower_ssj2008 = 20,494 overall ssj_ops/watt | ||||
| Test Sponsor: | xFusion Digital Technologies Co., Ltd | SPEC License #: | 6488 | Test Method: | Single Node |
| Tested By: | xFusion Digital Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Dec 19, 2024 |
| Hardware Availability: | Nov-2024 | Software Availability: | Nov-2024 | Publication: | Mar 5, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

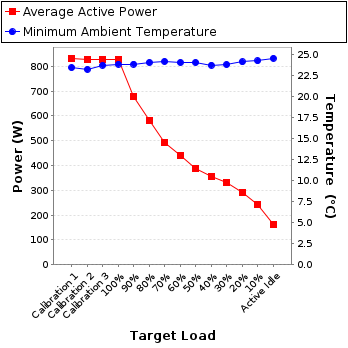

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 832 | 23.4 |
| Calibration 2 | 826 | 23.2 |
| Calibration 3 | 827 | 23.8 |
| 100% | 827 | 23.9 |
| 90% | 680 | 23.9 |
| 80% | 581 | 24.1 |
| 70% | 493 | 24.2 |
| 60% | 442 | 24.1 |
| 50% | 390 | 24.1 |
| 40% | 357 | 23.8 |
| 30% | 330 | 23.8 |
| 20% | 289 | 24.1 |
| 10% | 241 | 24.2 |
| Active Idle | 160 | 24.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA Inc. |
| Model: | WT210 |
| Serial Number: | 91M838229 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | 24BC8740B4E25737E0 |
| Date of Calibration: | 29-Jul-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | TM-STD30 |
| Driver Version: | 4.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm. |

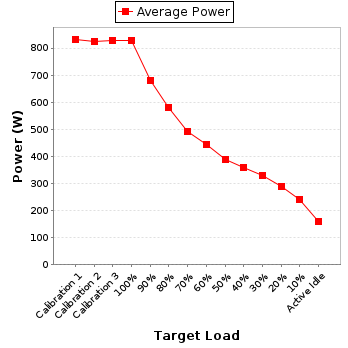

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 220 | 300.0 | 3.81 | 5.0 | 0.993 | 832 | 0.4% |
| Calibration 2 | 220 | 300.0 | 3.78 | 5.0 | 0.993 | 826 | 0.4% |
| Calibration 3 | 220 | 300.0 | 3.79 | 5.0 | 0.993 | 827 | 0.4% |
| 100% | 220 | 300.0 | 3.79 | 5.0 | 0.993 | 827 | 0.4% |
| 90% | 221 | 300.0 | 3.10 | 5.0 | 0.992 | 680 | 0.4% |
| 80% | 222 | 300.0 | 2.64 | 5.0 | 0.993 | 581 | 0.4% |
| 70% | 222 | 300.0 | 2.23 | 5.0 | 0.993 | 493 | 0.5% |
| 60% | 223 | 300.0 | 2.00 | 5.0 | 0.993 | 442 | 0.5% |
| 50% | 223 | 300.0 | 1.76 | 5.0 | 0.993 | 390 | 0.6% |
| 40% | 224 | 300.0 | 1.61 | 5.0 | 0.992 | 357 | 0.6% |
| 30% | 224 | 300.0 | 1.49 | 5.0 | 0.985 | 330 | 0.6% |
| 20% | 224 | 300.0 | 1.31 | 2.0 | 0.983 | 289 | 0.4% |
| 10% | 225 | 300.0 | 1.10 | 2.0 | 0.977 | 241 | 0.4% |
| Active Idle | 226 | 300.0 | 0.742 | 2.0 | 0.957 | 160 | 0.6% |
