Supermicro SuperServer SYS-212HA-TN SPECpower_ssj2008 = 20,102 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Dec 10, 2024
Hardware Availability: Dec-2024 Software Availability: Dec-2024 Publication: Jan 23, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 13,964,348 587 23,783
90% 90.1% 12,645,929 550 22,979
80% 80.0% 11,222,392 470 23,899
70% 70.0% 9,828,643 424 23,202
60% 60.0% 8,422,747 377 22,318
50% 50.0% 7,015,629 337 20,791
40% 40.0% 5,612,000 297 18,869
30% 30.0% 4,215,202 257 16,430
20% 20.0% 2,805,934 221 12,686
10% 10.0% 1,405,681 185 7,611
Active Idle 0 132 0
∑ssj_ops / ∑power = 20,102

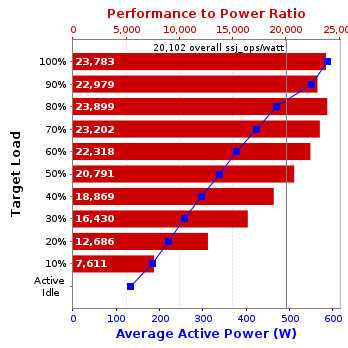

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SuperServer SYS-212HA-TN
Form Factor: 2U
CPU Name: Intel Xeon 6980P 2.00 GHz
CPU Characteristics: 128-Core, 2.00GHz, 504MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 128 cores, 1 chip, 128 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 504 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 12 x 32 GB
Memory Details: 12 x 32GB 2Rx8 PC5-6400B; CPU1 A1,B1,C1,D1,E1,F1,G1,H1,I1,J1,K1,L1 populated.
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: PWS-1K63A-1R
Disk Drive: 1x480GB M.2 NVMe GEN4 Micron,MTFDKBA480TFR-1BC1ZABYY
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller, AOC-AG-i2M
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 20348 (OS Build 20348.2966)
Filesystem: NTFS
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.5+9-LTS-191, mixed mode, sharing)
JVM Command-line Options: -server -Xmn1825m -Xms1995m -Xmx1995m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelGC -XX:UseAVX=0 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:+UseBiasedLocking -XX:+UseOptoBiasInlining -XX:+UseFastStosb -XX:MaxInlineLevel=9 -XX:MaxVectorSize=32 -XX:-UseSharedSpaces -XX:-UseXMMForObjInit -XX:-UseBASE64Intrinsics -XX:+OptimizeFill -XX:+CriticalJNINatives
JVM Affinity: start /NODE [0-3] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0X300, 0XC00, 0X3000, 0XC000, 0X30000, 0XC0000, 0X300000, 0XC00000, 0X3000000, 0XC000000, 0X30000000, 0XC0000000, 0X300000000, 0XC00000000, 0X3000000000, 0XC000000000, 0X30000000000, 0XC0000000000, 0X300000000000, 0XC00000000000, 0X3000000000000, 0XC000000000000, 0X30000000000000, 0XC0000000000000, 0X300000000000000, 0XC00000000000000, 0X3000000000000000, 0XC000000000000000]
JVM Instances: 128
JVM Initial Heap (MB): 1995
JVM Maximum Heap (MB): 1995
JVM Address Bits: 64
Boot Firmware Version: 1.0
Management Firmware Version: 01.00.21.20
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Supermicro
Model: SYS-741GE-TNRT
CPU Description: INTEL(R) XEON(R) SILVER 4509Y, 2.60 GHz
Memory amount (GB): 32
Software
Operating System (OS): Microsoft Windows Server 2022 Datacenter
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.5+9-LTS-191, mixed mode, sharing)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT310E
Serial Number: C3TH01001E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: CI240131001
Date of Calibration: 31-Jan-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 587 22.8
90% 550 22.8
80% 470 22.5
70% 424 22.2
60% 377 22.2
50% 337 22.0
40% 297 21.8
30% 257 21.8
20% 221 21.6
10% 185 21.6
Active Idle 132 21.5
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 21.5 10
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,162,588
Calibration 2     14,051,007
Calibration 3     14,022,008
ssj_ops@calibrated=14,036,508
100% 99.5% 14,036,508 13,964,348
90% 90.1% 12,632,857 12,645,929
80% 80.0% 11,229,206 11,222,392
70% 70.0% 9,825,555 9,828,643
60% 60.0% 8,421,905 8,422,747
50% 50.0% 7,018,254 7,015,629
40% 40.0% 5,614,603 5,612,000
30% 30.0% 4,210,952 4,215,202
20% 20.0% 2,807,302 2,805,934
10% 10.0% 1,403,651 1,405,681
Active Idle   0 0

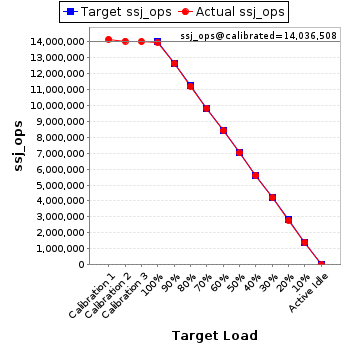

Graph of results
See the Host Performance Report for additional details.
