SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Nettrix R620 G50 | SPECpower_ssj2008 = 7,645 overall ssj_ops/watt | ||||
| Test Sponsor: | Nettrix | SPEC License #: | 6138 | Test Method: | Single Node |
| Tested By: | Nettrix | Test Location: | Tianjin,China | Test Date: | Sep 9, 2024 |
| Hardware Availability: | Jan-2023 | Software Availability: | Sep-2023 | Publication: | Sep 30, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

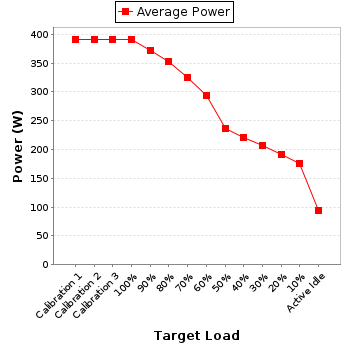

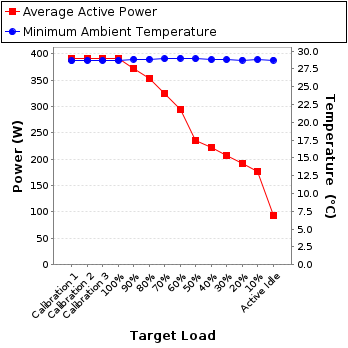

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 391 | 28.6 |
| Calibration 2 | 391 | 28.7 |
| Calibration 3 | 391 | 28.7 |
| 100% | 391 | 28.7 |
| 90% | 373 | 28.9 |
| 80% | 353 | 28.9 |
| 70% | 325 | 28.9 |
| 60% | 293 | 29.0 |
| 50% | 236 | 28.9 |
| 40% | 221 | 28.8 |
| 30% | 207 | 28.8 |
| 20% | 191 | 28.8 |
| 10% | 176 | 28.8 |
| Active Idle | 93.5 | 28.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA |
| Model: | WT310EH |
| Serial Number: | C3D11036E |
| Connectivity: | Ethernet |
| Input Connection: | Default |
| Metrology Institute: | CETC |
| Accredited by: | Calibration Laboratory of CETC |
| Calibration Label: | A2012018 |
| Date of Calibration: | 27-Mar-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Attach to SUT Power Supplier Unit 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButton Link Technology |
| Model: | iButton Link T-Sense/T-Probe |
| Driver Version: | 2.12.36.4 |
| Connectivity: | USB2Serial |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 235 | 300.0 | 1.69 | 2.0 | 0.984 | 391 | 0.2% |
| Calibration 2 | 235 | 300.0 | 1.69 | 2.0 | 0.984 | 391 | 0.2% |
| Calibration 3 | 236 | 300.0 | 1.69 | 2.0 | 0.984 | 391 | 0.2% |
| 100% | 236 | 300.0 | 1.69 | 2.0 | 0.984 | 391 | 0.2% |
| 90% | 236 | 300.0 | 1.61 | 2.0 | 0.982 | 373 | 0.2% |
| 80% | 235 | 300.0 | 1.53 | 2.0 | 0.980 | 353 | 0.2% |
| 70% | 235 | 300.0 | 1.42 | 2.0 | 0.978 | 325 | 0.2% |
| 60% | 236 | 300.0 | 1.27 | 2.0 | 0.977 | 293 | 0.2% |
| 50% | 236 | 300.0 | 1.03 | 2.0 | 0.971 | 236 | 0.3% |
| 40% | 235 | 300.0 | 0.971 | 2.0 | 0.968 | 221 | 0.3% |
| 30% | 236 | 300.0 | 0.910 | 2.0 | 0.964 | 207 | 0.3% |
| 20% | 236 | 300.0 | 0.845 | 2.0 | 0.959 | 191 | 0.3% |
| 10% | 235 | 300.0 | 0.784 | 2.0 | 0.955 | 176 | 0.3% |
| Active Idle | 236 | 300.0 | 0.457 | 2.0 | 0.871 | 93.5 | 0.5% |
