SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Supermicro System SYS-222H-TN | SPECpower_ssj2008 = 19,273 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | 980 Rack Ave, San Jose, CA, USA | Test Date: | Jul 29, 2024 |
| Hardware Availability: | Jul-2024 | Software Availability: | Jun-2024 | Publication: | Aug 14, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

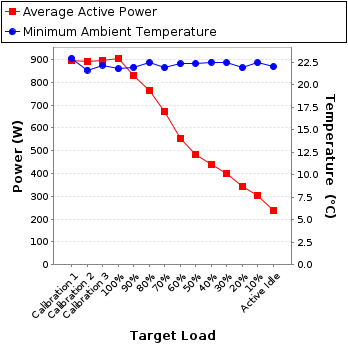

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 894 | 22.9 |
| Calibration 2 | 891 | 21.6 |
| Calibration 3 | 896 | 22.2 |
| 100% | 906 | 21.8 |
| 90% | 830 | 21.9 |
| 80% | 766 | 22.4 |
| 70% | 673 | 21.9 |
| 60% | 552 | 22.3 |
| 50% | 484 | 22.4 |
| 40% | 441 | 22.5 |
| 30% | 398 | 22.4 |
| 20% | 342 | 21.9 |
| 10% | 302 | 22.4 |
| Active Idle | 236 | 22.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Chroma, Inc. |
| Model: | 66205 |
| Serial Number: | 662050006185 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | Chroma |
| Accredited by: | Chroma Calibration Laboratory |
| Calibration Label: | 949-600-6400 |
| Date of Calibration: | 6-Nov-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | icbttonlink, Inc. |
| Model: | LinkUSBi USB-2 |
| Driver Version: | 1.7 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 213 | 300.0 | 4.29 | 5.0 | 0.981 | 894 | 0.2% |
| Calibration 2 | 213 | 300.0 | 4.27 | 5.0 | 0.981 | 891 | 0.2% |
| Calibration 3 | 213 | 300.0 | 4.29 | 5.0 | 0.981 | 896 | 0.2% |
| 100% | 213 | 300.0 | 4.34 | 5.0 | 0.981 | 906 | 0.2% |
| 90% | 213 | 300.0 | 3.98 | 5.0 | 0.978 | 830 | 0.2% |
| 80% | 213 | 300.0 | 3.69 | 5.0 | 0.976 | 766 | 0.2% |
| 70% | 213 | 300.0 | 3.25 | 5.0 | 0.971 | 673 | 0.2% |
| 60% | 213 | 300.0 | 2.67 | 5.0 | 0.972 | 552 | 0.2% |
| 50% | 214 | 300.0 | 2.33 | 5.0 | 0.971 | 484 | 0.3% |
| 40% | 214 | 300.0 | 2.13 | 5.0 | 0.971 | 441 | 0.3% |
| 30% | 214 | 300.0 | 1.93 | 5.0 | 0.968 | 398 | 0.3% |
| 20% | 214 | 300.0 | 1.68 | 5.0 | 0.954 | 342 | 0.3% |
| 10% | 214 | 300.0 | 1.50 | 5.0 | 0.941 | 302 | 0.3% |
| Active Idle | 214 | 300.0 | 1.21 | 5.0 | 0.909 | 236 | 0.4% |
