SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Supermicro System SYS-112C-TN | SPECpower_ssj2008 = 19,489 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | Jul 28, 2024 |
| Hardware Availability: | Jun-2024 | Software Availability: | Jun-2024 | Publication: | Aug 13, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

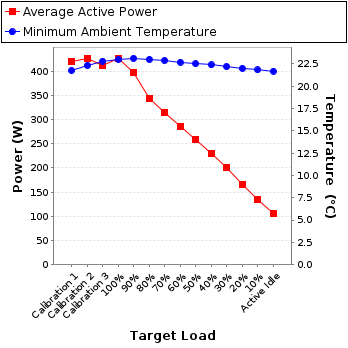

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 421 | 21.8 |
| Calibration 2 | 427 | 22.3 |
| Calibration 3 | 412 | 22.8 |
| 100% | 427 | 23.0 |
| 90% | 398 | 23.1 |
| 80% | 343 | 23.0 |
| 70% | 314 | 22.9 |
| 60% | 286 | 22.7 |
| 50% | 259 | 22.5 |
| 40% | 231 | 22.4 |
| 30% | 202 | 22.2 |
| 20% | 165 | 22.0 |
| 10% | 134 | 21.8 |
| Active Idle | 106 | 21.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT310 |
| Serial Number: | C3RF27027E |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Omnio Calibration Lab. Co., Ltd. |
| Calibration Label: | OCL-230203F01008 |
| Date of Calibration: | 03-Feb-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10 mm in front of SUT main air intake |

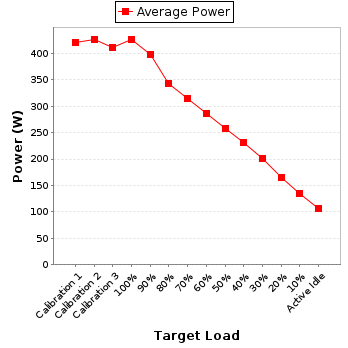

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 225 | 300.0 | 1.91 | 5.0 | 0.977 | 421 | 0.5% |
| Calibration 2 | 225 | 300.0 | 1.94 | 5.0 | 0.978 | 427 | 0.5% |
| Calibration 3 | 225 | 300.0 | 1.87 | 5.0 | 0.976 | 412 | 0.5% |
| 100% | 225 | 300.0 | 1.94 | 5.0 | 0.978 | 427 | 0.5% |
| 90% | 225 | 300.0 | 1.81 | 5.0 | 0.975 | 398 | 0.5% |
| 80% | 225 | 300.0 | 1.57 | 5.0 | 0.972 | 343 | 0.6% |
| 70% | 225 | 300.0 | 1.44 | 2.0 | 0.970 | 314 | 0.3% |
| 60% | 225 | 300.0 | 1.31 | 2.0 | 0.968 | 286 | 0.4% |
| 50% | 225 | 300.0 | 1.19 | 2.0 | 0.965 | 259 | 0.4% |
| 40% | 225 | 300.0 | 1.06 | 2.0 | 0.972 | 231 | 0.4% |
| 30% | 225 | 300.0 | 0.925 | 1.0 | 0.968 | 202 | 0.3% |
| 20% | 225 | 300.0 | 0.770 | 1.0 | 0.951 | 165 | 0.3% |
| 10% | 226 | 300.0 | 0.637 | 1.0 | 0.933 | 134 | 0.4% |
| Active Idle | 226 | 300.0 | 0.520 | 1.0 | 0.902 | 106 | 0.5% |
