SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge XR8620T (Intel Xeon Gold 6433N, 2.00 GHz) | SPECpower_ssj2008 = 6,564 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jul 15, 2024 |
| Hardware Availability: | Aug-2023 | Software Availability: | Jun-2024 | Publication: | Aug 13, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

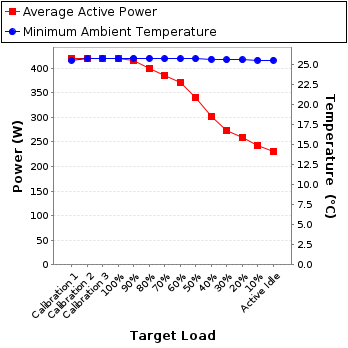

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 420 | 25.6 |
| Calibration 2 | 420 | 25.8 |
| Calibration 3 | 421 | 25.8 |
| 100% | 420 | 25.8 |
| 90% | 416 | 25.8 |
| 80% | 400 | 25.8 |
| 70% | 385 | 25.8 |
| 60% | 372 | 25.8 |
| 50% | 340 | 25.8 |
| 40% | 301 | 25.7 |
| 30% | 273 | 25.6 |
| 20% | 260 | 25.6 |
| 10% | 244 | 25.6 |
| Active Idle | 230 | 25.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91K308530 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T75067 |
| Date of Calibration: | 16-Oct-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |

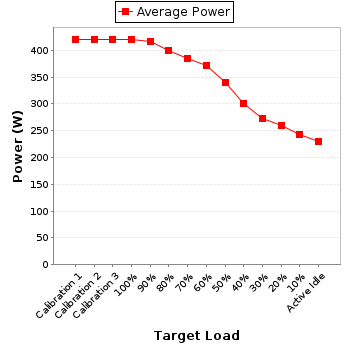

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 2.05 | 2.0 | 0.990 | 420 | 0.3% |
| Calibration 2 | 207 | 300.0 | 2.05 | 2.0 | 0.990 | 420 | 0.3% |
| Calibration 3 | 207 | 300.0 | 2.05 | 2.0 | 0.990 | 421 | 0.3% |
| 100% | 207 | 300.0 | 2.05 | 2.0 | 0.990 | 420 | 0.3% |
| 90% | 207 | 300.0 | 2.02 | 2.0 | 0.990 | 416 | 0.3% |
| 80% | 207 | 300.0 | 1.95 | 2.0 | 0.990 | 400 | 0.3% |
| 70% | 207 | 300.0 | 1.88 | 2.0 | 0.989 | 385 | 0.3% |
| 60% | 207 | 300.0 | 1.81 | 2.0 | 0.989 | 372 | 0.3% |
| 50% | 208 | 300.0 | 1.66 | 2.0 | 0.987 | 340 | 0.4% |
| 40% | 208 | 300.0 | 1.48 | 2.0 | 0.983 | 301 | 0.4% |
| 30% | 208 | 300.0 | 1.34 | 2.0 | 0.981 | 273 | 0.4% |
| 20% | 208 | 300.0 | 1.28 | 2.0 | 0.979 | 260 | 0.4% |
| 10% | 208 | 300.0 | 1.20 | 1.0 | 0.976 | 244 | 0.4% |
| Active Idle | 208 | 300.0 | 1.14 | 1.0 | 0.974 | 230 | 0.4% |
