Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 33,511,765
ssj_ops@100% per Host = 16,755,882
ssj_ops@100% per JVM = 130,905
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 17, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: Jun 18, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     33,780,707
Calibration 2     33,652,181
Calibration 3     33,658,953
ssj_ops@calibrated=33,655,567
100% 99.6% 33,655,567 33,511,765
90% 90.0% 30,290,010 30,283,754
80% 79.8% 26,924,453 26,872,911
70% 69.9% 23,558,897 23,540,799
60% 60.0% 20,193,340 20,186,756
50% 50.0% 16,827,783 16,836,483
40% 40.0% 13,462,227 13,449,650
30% 30.0% 10,096,670 10,097,381
20% 20.0% 6,731,113 6,725,185
10% 10.0% 3,365,557 3,363,642
Active Idle   0 0

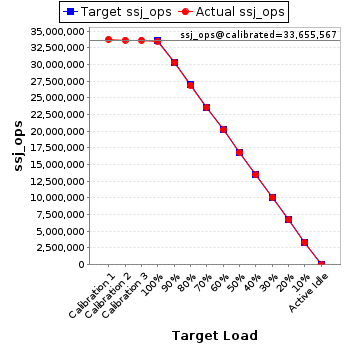

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
2 4 256 512 1,024 2 256
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ThinkSystem D3 Chassis
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 2700
Power Supply Details: Lenovo P/N:4P57A87629
Network Switch: None
Network Switch Details: None
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware per Node
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD P/N:4XB7A82674
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.2227)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start /NODE[0-3] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000, 0xc000000, 0x30000000, 0xc0000000, 0x300000000, 0xc00000000, 0x3000000000, 0xc000000000, 0x30000000000, 0xc0000000000, 0x300000000000, 0xc00000000000, 0x3000000000000, 0xc000000000000, 0x30000000000000, 0xc0000000000000, 0x300000000000000, 0xc00000000000000, 0x3000000000000000, 0xc000000000000000]
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5034129
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
WIN-02S66M83PCU 16,726,143
WIN-86FEQPF270A 16,785,622
ssj_ops@100% 33,511,765
ssj_ops@100% per Host 16,755,882
ssj_ops@100% per JVM 130,905

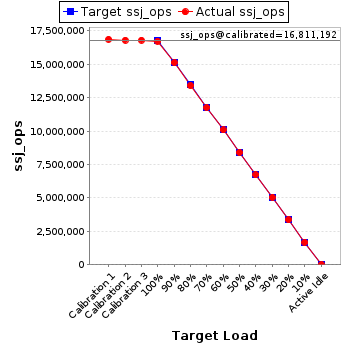

Graph of per-host results
Host 'WIN-02S66M83PCU' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     16,872,590
Calibration 2     16,809,592
Calibration 3     16,812,792
ssj_ops@calibrated=16,811,192
100% 99.5% 16,811,192 16,726,143
90% 90.0% 15,130,073 15,126,270
80% 79.6% 13,448,954 13,388,272
70% 69.9% 11,767,834 11,751,242
60% 60.0% 10,086,715 10,082,485
50% 50.0% 8,405,596 8,411,507
40% 40.0% 6,724,477 6,719,946
30% 30.0% 5,043,358 5,044,775
20% 20.0% 3,362,238 3,357,564
10% 10.0% 1,681,119 1,678,928
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-86FEQPF270A' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     16,908,118
Calibration 2     16,842,589
Calibration 3     16,846,160
ssj_ops@calibrated=16,844,375
100% 99.7% 16,844,375 16,785,622
90% 90.0% 15,159,937 15,157,484
80% 80.1% 13,475,500 13,484,639
70% 70.0% 11,791,062 11,789,557
60% 60.0% 10,106,625 10,104,271
50% 50.0% 8,422,187 8,424,976
40% 40.0% 6,737,750 6,729,705
30% 30.0% 5,053,312 5,052,606
20% 20.0% 3,368,875 3,367,621
10% 10.0% 1,684,437 1,684,714
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
