Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 148,873
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,416
Calibration 2     148,855
Calibration 3     148,928
ssj_ops@calibrated=148,891
100% 100.0% 148,891 148,873
90% 90.7% 134,002 135,003
80% 79.5% 119,113 118,424
70% 69.5% 104,224 103,538
60% 58.9% 89,335 87,760
50% 49.7% 74,446 73,977
40% 40.2% 59,557 59,885
30% 30.4% 44,667 45,221
20% 19.7% 29,778 29,300
10% 10.1% 14,889 15,012
Active Idle   0 0

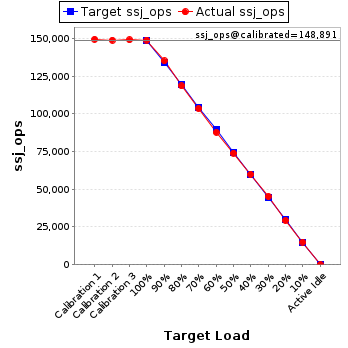

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 10,866,660 2,040
Payment 10,866,661
Order Status 1,086,667
Delivery 1,086,666
Stock Level 1,086,667
Customer Report 10,866,661
Calibration 2 New Order 10,825,802 2,040
Payment 10,825,794
Order Status 1,082,580
Delivery 1,082,579
Stock Level 1,082,580
Customer Report 10,825,793
Calibration 3 New Order 10,831,256 2,040
Payment 10,831,255
Order Status 1,083,126
Delivery 1,083,125
Stock Level 1,083,126
Customer Report 10,831,250
100% 100.0% New Order 10,827,113 2,040
Payment 10,827,119
Order Status 1,082,712
Delivery 1,082,712
Stock Level 1,082,712
Customer Report 10,827,114
90% 90.7% New Order 9,818,438 2,040
Payment 9,818,433
Order Status 981,843
Delivery 981,842
Stock Level 981,842
Customer Report 9,818,432
80% 79.5% New Order 8,612,650 2,040
Payment 8,612,660
Order Status 861,265
Delivery 861,266
Stock Level 861,266
Customer Report 8,612,651
70% 69.5% New Order 7,530,037 2,040
Payment 7,530,039
Order Status 753,004
Delivery 753,004
Stock Level 753,003
Customer Report 7,530,031
60% 58.9% New Order 6,382,564 2,040
Payment 6,382,558
Order Status 638,257
Delivery 638,256
Stock Level 638,256
Customer Report 6,382,563
50% 49.7% New Order 5,380,137 2,038
Payment 5,380,142
Order Status 538,012
Delivery 538,015
Stock Level 538,015
Customer Report 5,380,142
40% 40.2% New Order 4,355,334 2,038
Payment 4,355,330
Order Status 435,535
Delivery 435,534
Stock Level 435,532
Customer Report 4,355,336
30% 30.4% New Order 3,288,845 2,039
Payment 3,288,855
Order Status 328,884
Delivery 328,885
Stock Level 328,884
Customer Report 3,288,855
20% 19.7% New Order 2,130,879 2,040
Payment 2,130,878
Order Status 213,086
Delivery 213,088
Stock Level 213,089
Customer Report 2,130,873
10% 10.1% New Order 1,091,819 2,040
Payment 1,091,817
Order Status 109,182
Delivery 109,180
Stock Level 109,180
Customer Report 1,091,822
Active Idle New Order 0 2,040
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
