Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 150,619
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,608
Calibration 2     150,886
Calibration 3     150,821
ssj_ops@calibrated=150,853
100% 99.8% 150,853 150,619
90% 89.3% 135,768 134,734
80% 80.0% 120,683 120,647
70% 69.8% 105,597 105,231
60% 59.3% 90,512 89,511
50% 49.4% 75,427 74,592
40% 40.0% 60,341 60,293
30% 29.7% 45,256 44,859
20% 20.0% 30,171 30,226
10% 10.1% 15,085 15,191
Active Idle   0 0

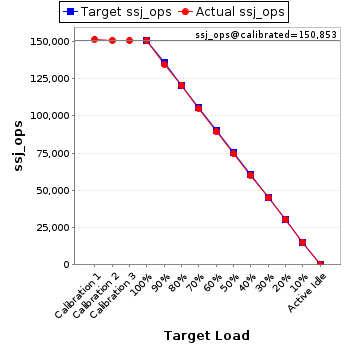

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 11,026,665 2,040
Payment 11,026,669
Order Status 1,102,666
Delivery 1,102,665
Stock Level 1,102,666
Customer Report 11,026,663
Calibration 2 New Order 10,973,522 2,040
Payment 10,973,523
Order Status 1,097,352
Delivery 1,097,354
Stock Level 1,097,351
Customer Report 10,973,525
Calibration 3 New Order 10,968,917 2,040
Payment 10,968,909
Order Status 1,096,891
Delivery 1,096,890
Stock Level 1,096,892
Customer Report 10,968,916
100% 99.8% New Order 10,954,542 2,040
Payment 10,954,540
Order Status 1,095,455
Delivery 1,095,455
Stock Level 1,095,455
Customer Report 10,954,540
90% 89.3% New Order 9,799,372 2,039
Payment 9,799,369
Order Status 979,937
Delivery 979,937
Stock Level 979,937
Customer Report 9,799,368
80% 80.0% New Order 8,774,499 2,040
Payment 8,774,500
Order Status 877,449
Delivery 877,449
Stock Level 877,450
Customer Report 8,774,495
70% 69.8% New Order 7,653,152 2,040
Payment 7,653,154
Order Status 765,315
Delivery 765,315
Stock Level 765,315
Customer Report 7,653,158
60% 59.3% New Order 6,509,899 2,040
Payment 6,509,899
Order Status 650,991
Delivery 650,988
Stock Level 650,991
Customer Report 6,509,902
50% 49.4% New Order 5,424,863 2,038
Payment 5,424,858
Order Status 542,486
Delivery 542,486
Stock Level 542,486
Customer Report 5,424,863
40% 40.0% New Order 4,384,949 2,039
Payment 4,384,948
Order Status 438,495
Delivery 438,496
Stock Level 438,495
Customer Report 4,384,950
30% 29.7% New Order 3,262,497 2,039
Payment 3,262,497
Order Status 326,250
Delivery 326,249
Stock Level 326,249
Customer Report 3,262,497
20% 20.0% New Order 2,198,249 2,039
Payment 2,198,251
Order Status 219,826
Delivery 219,824
Stock Level 219,824
Customer Report 2,198,251
10% 10.1% New Order 1,104,824 2,040
Payment 1,104,825
Order Status 110,482
Delivery 110,483
Stock Level 110,481
Customer Report 1,104,825
Active Idle New Order 0 2,040
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
