Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 149,879
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,910
Calibration 2     150,403
Calibration 3     150,228
ssj_ops@calibrated=150,315
100% 99.7% 150,315 149,879
90% 90.2% 135,284 135,597
80% 80.6% 120,252 121,221
70% 69.7% 105,221 104,730
60% 59.5% 90,189 89,416
50% 49.8% 75,158 74,892
40% 39.9% 60,126 59,945
30% 29.9% 45,095 44,899
20% 20.1% 30,063 30,254
10% 10.1% 15,032 15,154
Active Idle   0 0

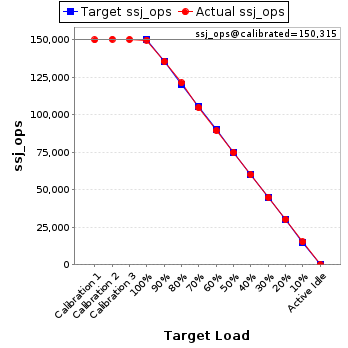

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 10,903,370 2,040
Payment 10,903,374
Order Status 1,090,338
Delivery 1,090,338
Stock Level 1,090,337
Customer Report 10,903,374
Calibration 2 New Order 10,938,372 2,040
Payment 10,938,380
Order Status 1,093,839
Delivery 1,093,837
Stock Level 1,093,837
Customer Report 10,938,376
Calibration 3 New Order 10,925,779 2,040
Payment 10,925,784
Order Status 1,092,578
Delivery 1,092,578
Stock Level 1,092,577
Customer Report 10,925,783
100% 99.7% New Order 10,900,295 2,040
Payment 10,900,295
Order Status 1,090,029
Delivery 1,090,030
Stock Level 1,090,030
Customer Report 10,900,294
90% 90.2% New Order 9,861,598 2,039
Payment 9,861,596
Order Status 986,161
Delivery 986,159
Stock Level 986,158
Customer Report 9,861,598
80% 80.6% New Order 8,816,101 2,040
Payment 8,816,101
Order Status 881,610
Delivery 881,609
Stock Level 881,609
Customer Report 8,816,106
70% 69.7% New Order 7,616,762 2,038
Payment 7,616,760
Order Status 761,675
Delivery 761,678
Stock Level 761,677
Customer Report 7,616,766
60% 59.5% New Order 6,503,009 2,040
Payment 6,503,010
Order Status 650,302
Delivery 650,300
Stock Level 650,301
Customer Report 6,503,008
50% 49.8% New Order 5,446,663 2,039
Payment 5,446,667
Order Status 544,666
Delivery 544,667
Stock Level 544,665
Customer Report 5,446,662
40% 39.9% New Order 4,359,666 2,039
Payment 4,359,664
Order Status 435,966
Delivery 435,965
Stock Level 435,965
Customer Report 4,359,663
30% 29.9% New Order 3,265,563 2,038
Payment 3,265,564
Order Status 326,556
Delivery 326,556
Stock Level 326,554
Customer Report 3,265,561
20% 20.1% New Order 2,200,321 2,039
Payment 2,200,314
Order Status 220,032
Delivery 220,032
Stock Level 220,031
Customer Report 2,200,317
10% 10.1% New Order 1,102,121 2,040
Payment 1,102,123
Order Status 110,212
Delivery 110,212
Stock Level 110,212
Customer Report 1,102,120
Active Idle New Order 0 2,040
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
