Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 152,342
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,293
Calibration 2     152,346
Calibration 3     152,562
ssj_ops@calibrated=152,454
100% 99.9% 152,454 152,342
90% 89.9% 137,209 137,078
80% 80.4% 121,963 122,593
70% 70.1% 106,718 106,814
60% 59.2% 91,472 90,282
50% 49.9% 76,227 76,044
40% 39.9% 60,982 60,859
30% 30.0% 45,736 45,777
20% 20.7% 30,491 31,570
10% 9.9% 15,245 15,157
Active Idle   0 0

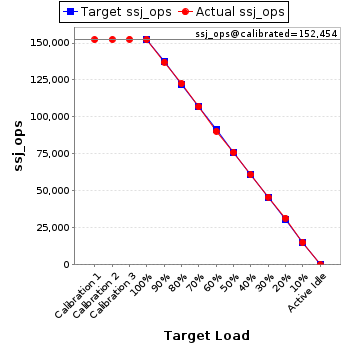

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 11,076,660 2,040
Payment 11,076,661
Order Status 1,107,667
Delivery 1,107,667
Stock Level 1,107,668
Customer Report 11,076,664
Calibration 2 New Order 11,080,217 2,040
Payment 11,080,222
Order Status 1,108,022
Delivery 1,108,023
Stock Level 1,108,022
Customer Report 11,080,221
Calibration 3 New Order 11,095,456 2,040
Payment 11,095,457
Order Status 1,109,545
Delivery 1,109,544
Stock Level 1,109,545
Customer Report 11,095,457
100% 99.9% New Order 11,079,421 2,040
Payment 11,079,423
Order Status 1,107,942
Delivery 1,107,943
Stock Level 1,107,943
Customer Report 11,079,419
90% 89.9% New Order 9,969,349 2,038
Payment 9,969,349
Order Status 996,935
Delivery 996,935
Stock Level 996,936
Customer Report 9,969,350
80% 80.4% New Order 8,915,929 2,040
Payment 8,915,931
Order Status 891,594
Delivery 891,593
Stock Level 891,593
Customer Report 8,915,932
70% 70.1% New Order 7,768,753 2,040
Payment 7,768,750
Order Status 776,877
Delivery 776,875
Stock Level 776,875
Customer Report 7,768,752
60% 59.2% New Order 6,565,944 2,040
Payment 6,565,944
Order Status 656,594
Delivery 656,596
Stock Level 656,595
Customer Report 6,565,949
50% 49.9% New Order 5,530,470 2,038
Payment 5,530,473
Order Status 553,047
Delivery 553,047
Stock Level 553,047
Customer Report 5,530,467
40% 39.9% New Order 4,426,351 2,038
Payment 4,426,350
Order Status 442,636
Delivery 442,635
Stock Level 442,634
Customer Report 4,426,350
30% 30.0% New Order 3,329,442 2,038
Payment 3,329,443
Order Status 332,944
Delivery 332,943
Stock Level 332,944
Customer Report 3,329,440
20% 20.7% New Order 2,296,068 2,039
Payment 2,296,064
Order Status 229,606
Delivery 229,607
Stock Level 229,606
Customer Report 2,296,068
10% 9.9% New Order 1,102,378 2,039
Payment 1,102,374
Order Status 110,239
Delivery 110,238
Stock Level 110,236
Customer Report 1,102,372
Active Idle New Order 0 2,039
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
