Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 150,726
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,828
Calibration 2     151,438
Calibration 3     151,345
ssj_ops@calibrated=151,392
100% 99.6% 151,392 150,726
90% 90.1% 136,252 136,389
80% 79.9% 121,113 120,973
70% 69.5% 105,974 105,151
60% 59.2% 90,835 89,623
50% 50.4% 75,696 76,345
40% 39.6% 60,557 59,990
30% 30.1% 45,417 45,642
20% 20.0% 30,278 30,324
10% 9.8% 15,139 14,857
Active Idle   0 0

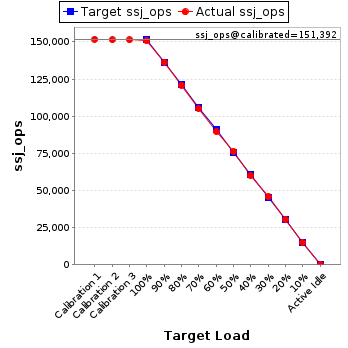

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 11,042,133 2,040
Payment 11,042,134
Order Status 1,104,212
Delivery 1,104,212
Stock Level 1,104,214
Customer Report 11,042,134
Calibration 2 New Order 11,014,026 2,040
Payment 11,014,029
Order Status 1,101,403
Delivery 1,101,402
Stock Level 1,101,404
Customer Report 11,014,024
Calibration 3 New Order 11,006,986 2,040
Payment 11,006,987
Order Status 1,100,699
Delivery 1,100,699
Stock Level 1,100,699
Customer Report 11,006,981
100% 99.6% New Order 10,961,877 2,040
Payment 10,961,872
Order Status 1,096,189
Delivery 1,096,189
Stock Level 1,096,188
Customer Report 10,961,873
90% 90.1% New Order 9,919,672 2,039
Payment 9,919,671
Order Status 991,967
Delivery 991,966
Stock Level 991,966
Customer Report 9,919,668
80% 79.9% New Order 8,798,100 2,040
Payment 8,798,103
Order Status 879,810
Delivery 879,810
Stock Level 879,812
Customer Report 8,798,104
70% 69.5% New Order 7,647,344 2,040
Payment 7,647,347
Order Status 764,734
Delivery 764,735
Stock Level 764,735
Customer Report 7,647,345
60% 59.2% New Order 6,518,056 2,040
Payment 6,518,061
Order Status 651,806
Delivery 651,806
Stock Level 651,806
Customer Report 6,518,060
50% 50.4% New Order 5,552,350 2,039
Payment 5,552,358
Order Status 555,236
Delivery 555,235
Stock Level 555,235
Customer Report 5,552,351
40% 39.6% New Order 4,362,890 2,038
Payment 4,362,889
Order Status 436,289
Delivery 436,289
Stock Level 436,289
Customer Report 4,362,890
30% 30.1% New Order 3,319,511 2,039
Payment 3,319,513
Order Status 331,952
Delivery 331,950
Stock Level 331,950
Customer Report 3,319,511
20% 20.0% New Order 2,205,376 2,038
Payment 2,205,372
Order Status 220,536
Delivery 220,537
Stock Level 220,536
Customer Report 2,205,371
10% 9.8% New Order 1,080,601 2,038
Payment 1,080,608
Order Status 108,061
Delivery 108,060
Stock Level 108,061
Customer Report 1,080,609
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
