Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 144,700
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,066
Calibration 2     144,826
Calibration 3     144,810
ssj_ops@calibrated=144,818
100% 99.9% 144,818 144,700
90% 90.2% 130,336 130,579
80% 80.2% 115,854 116,150
70% 69.2% 101,372 100,261
60% 59.4% 86,891 86,061
50% 49.9% 72,409 72,260
40% 40.3% 57,927 58,388
30% 29.6% 43,445 42,866
20% 20.1% 28,964 29,048
10% 10.2% 14,482 14,787
Active Idle   0 0

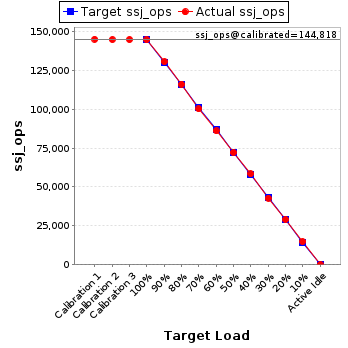

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 10,550,516 2,040
Payment 10,550,521
Order Status 1,055,051
Delivery 1,055,051
Stock Level 1,055,053
Customer Report 10,550,516
Calibration 2 New Order 10,533,466 2,040
Payment 10,533,464
Order Status 1,053,348
Delivery 1,053,348
Stock Level 1,053,346
Customer Report 10,533,465
Calibration 3 New Order 10,531,645 2,040
Payment 10,531,639
Order Status 1,053,166
Delivery 1,053,165
Stock Level 1,053,166
Customer Report 10,531,642
100% 99.9% New Order 10,523,625 2,040
Payment 10,523,623
Order Status 1,052,363
Delivery 1,052,363
Stock Level 1,052,362
Customer Report 10,523,624
90% 90.2% New Order 9,496,845 2,039
Payment 9,496,840
Order Status 949,683
Delivery 949,686
Stock Level 949,684
Customer Report 9,496,841
80% 80.2% New Order 8,447,346 2,040
Payment 8,447,346
Order Status 844,734
Delivery 844,735
Stock Level 844,735
Customer Report 8,447,347
70% 69.2% New Order 7,291,687 2,040
Payment 7,291,690
Order Status 729,169
Delivery 729,169
Stock Level 729,168
Customer Report 7,291,685
60% 59.4% New Order 6,259,015 2,040
Payment 6,259,011
Order Status 625,901
Delivery 625,902
Stock Level 625,902
Customer Report 6,259,008
50% 49.9% New Order 5,255,285 2,039
Payment 5,255,286
Order Status 525,528
Delivery 525,530
Stock Level 525,529
Customer Report 5,255,284
40% 40.3% New Order 4,246,554 2,038
Payment 4,246,560
Order Status 424,654
Delivery 424,657
Stock Level 424,655
Customer Report 4,246,557
30% 29.6% New Order 3,117,567 2,036
Payment 3,117,567
Order Status 311,756
Delivery 311,758
Stock Level 311,756
Customer Report 3,117,565
20% 20.1% New Order 2,112,717 2,039
Payment 2,112,713
Order Status 211,270
Delivery 211,272
Stock Level 211,273
Customer Report 2,112,713
10% 10.2% New Order 1,075,458 2,039
Payment 1,075,454
Order Status 107,547
Delivery 107,544
Stock Level 107,545
Customer Report 1,075,452
Active Idle New Order 0 2,039
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
