Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 147,796
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,144
Calibration 2     148,890
Calibration 3     148,799
ssj_ops@calibrated=148,845
100% 99.3% 148,845 147,796
90% 88.3% 133,960 131,455
80% 80.0% 119,076 119,148
70% 69.1% 104,191 102,919
60% 59.0% 89,307 87,888
50% 49.8% 74,422 74,166
40% 40.1% 59,538 59,671
30% 30.1% 44,653 44,809
20% 20.3% 29,769 30,213
10% 10.0% 14,884 14,832
Active Idle   0 0

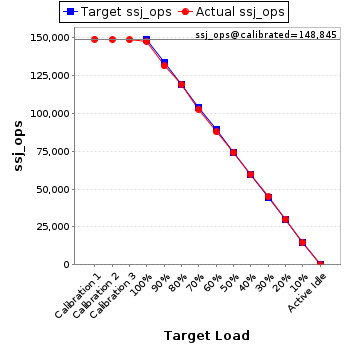

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 10,848,021 2,040
Payment 10,848,021
Order Status 1,084,802
Delivery 1,084,802
Stock Level 1,084,802
Customer Report 10,848,019
Calibration 2 New Order 10,828,636 2,040
Payment 10,828,636
Order Status 1,082,863
Delivery 1,082,864
Stock Level 1,082,862
Customer Report 10,828,637
Calibration 3 New Order 10,821,770 2,040
Payment 10,821,772
Order Status 1,082,176
Delivery 1,082,177
Stock Level 1,082,178
Customer Report 10,821,773
100% 99.3% New Order 10,748,818 2,040
Payment 10,748,820
Order Status 1,074,881
Delivery 1,074,882
Stock Level 1,074,881
Customer Report 10,748,820
90% 88.3% New Order 9,560,359 2,040
Payment 9,560,360
Order Status 956,035
Delivery 956,035
Stock Level 956,035
Customer Report 9,560,363
80% 80.0% New Order 8,665,327 2,040
Payment 8,665,327
Order Status 866,532
Delivery 866,534
Stock Level 866,533
Customer Report 8,665,330
70% 69.1% New Order 7,484,996 2,040
Payment 7,484,995
Order Status 748,500
Delivery 748,497
Stock Level 748,499
Customer Report 7,484,994
60% 59.0% New Order 6,391,869 2,040
Payment 6,391,866
Order Status 639,187
Delivery 639,188
Stock Level 639,186
Customer Report 6,391,865
50% 49.8% New Order 5,393,862 2,040
Payment 5,393,871
Order Status 539,386
Delivery 539,386
Stock Level 539,387
Customer Report 5,393,867
40% 40.1% New Order 4,339,912 2,039
Payment 4,339,914
Order Status 433,993
Delivery 433,991
Stock Level 433,991
Customer Report 4,339,913
30% 30.1% New Order 3,259,006 2,040
Payment 3,259,004
Order Status 325,900
Delivery 325,898
Stock Level 325,899
Customer Report 3,259,003
20% 20.3% New Order 2,197,310 2,039
Payment 2,197,309
Order Status 219,730
Delivery 219,732
Stock Level 219,731
Customer Report 2,197,312
10% 10.0% New Order 1,078,792 2,040
Payment 1,078,786
Order Status 107,880
Delivery 107,879
Stock Level 107,878
Customer Report 1,078,785
Active Idle New Order 0 2,040
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
