Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 143,789
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,618
Calibration 2     144,577
Calibration 3     144,385
ssj_ops@calibrated=144,481
100% 99.5% 144,481 143,789
90% 91.3% 130,033 131,900
80% 79.6% 115,585 114,981
70% 69.3% 101,137 100,123
60% 59.1% 86,689 85,427
50% 50.6% 72,240 73,075
40% 40.3% 57,792 58,255
30% 29.8% 43,344 43,063
20% 20.1% 28,896 29,031
10% 9.7% 14,448 14,053
Active Idle   0 0

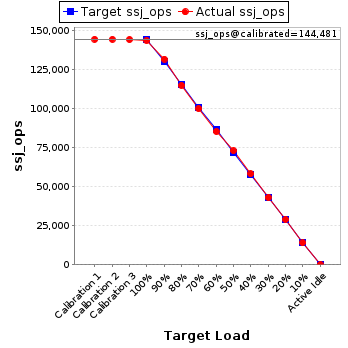

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 10,517,750 2,040
Payment 10,517,750
Order Status 1,051,774
Delivery 1,051,774
Stock Level 1,051,775
Customer Report 10,517,745
Calibration 2 New Order 10,514,695 2,040
Payment 10,514,695
Order Status 1,051,469
Delivery 1,051,469
Stock Level 1,051,469
Customer Report 10,514,695
Calibration 3 New Order 10,500,726 2,040
Payment 10,500,724
Order Status 1,050,073
Delivery 1,050,072
Stock Level 1,050,072
Customer Report 10,500,728
100% 99.5% New Order 10,457,363 2,040
Payment 10,457,368
Order Status 1,045,735
Delivery 1,045,737
Stock Level 1,045,737
Customer Report 10,457,362
90% 91.3% New Order 9,593,290 2,040
Payment 9,593,290
Order Status 959,330
Delivery 959,330
Stock Level 959,330
Customer Report 9,593,291
80% 79.6% New Order 8,362,264 2,040
Payment 8,362,266
Order Status 836,228
Delivery 836,226
Stock Level 836,227
Customer Report 8,362,269
70% 69.3% New Order 7,281,713 2,040
Payment 7,281,712
Order Status 728,172
Delivery 728,170
Stock Level 728,169
Customer Report 7,281,718
60% 59.1% New Order 6,212,899 2,040
Payment 6,212,897
Order Status 621,289
Delivery 621,289
Stock Level 621,289
Customer Report 6,212,897
50% 50.6% New Order 5,314,565 2,038
Payment 5,314,566
Order Status 531,457
Delivery 531,457
Stock Level 531,457
Customer Report 5,314,565
40% 40.3% New Order 4,236,868 2,039
Payment 4,236,862
Order Status 423,687
Delivery 423,687
Stock Level 423,686
Customer Report 4,236,867
30% 29.8% New Order 3,131,848 2,039
Payment 3,131,847
Order Status 313,185
Delivery 313,184
Stock Level 313,184
Customer Report 3,131,849
20% 20.1% New Order 2,111,503 2,039
Payment 2,111,505
Order Status 211,149
Delivery 211,150
Stock Level 211,150
Customer Report 2,111,504
10% 9.7% New Order 1,022,129 2,040
Payment 1,022,124
Order Status 102,213
Delivery 102,212
Stock Level 102,213
Customer Report 1,022,125
Active Idle New Order 0 2,040
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
