Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 150,864
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,460
Calibration 2     151,952
Calibration 3     151,749
ssj_ops@calibrated=151,850
100% 99.4% 151,850 150,864
90% 89.7% 136,665 136,196
80% 79.6% 121,480 120,809
70% 69.3% 106,295 105,201
60% 59.3% 91,110 90,006
50% 50.2% 75,925 76,173
40% 39.6% 60,740 60,168
30% 30.3% 45,555 46,069
20% 20.0% 30,370 30,353
10% 9.8% 15,185 14,926
Active Idle   0 0

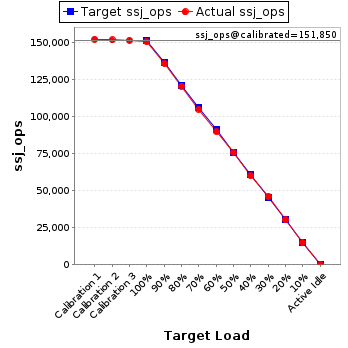

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 11,088,193 2,040
Payment 11,088,199
Order Status 1,108,818
Delivery 1,108,819
Stock Level 1,108,818
Customer Report 11,088,191
Calibration 2 New Order 11,051,044 2,040
Payment 11,051,041
Order Status 1,105,104
Delivery 1,105,104
Stock Level 1,105,105
Customer Report 11,051,040
Calibration 3 New Order 11,036,322 2,040
Payment 11,036,324
Order Status 1,103,632
Delivery 1,103,631
Stock Level 1,103,630
Customer Report 11,036,318
100% 99.4% New Order 10,971,938 2,040
Payment 10,971,937
Order Status 1,097,195
Delivery 1,097,194
Stock Level 1,097,192
Customer Report 10,971,945
90% 89.7% New Order 9,905,191 2,038
Payment 9,905,191
Order Status 990,519
Delivery 990,520
Stock Level 990,520
Customer Report 9,905,181
80% 79.6% New Order 8,786,132 2,040
Payment 8,786,132
Order Status 878,612
Delivery 878,613
Stock Level 878,613
Customer Report 8,786,132
70% 69.3% New Order 7,651,002 2,039
Payment 7,650,998
Order Status 765,100
Delivery 765,101
Stock Level 765,101
Customer Report 7,651,003
60% 59.3% New Order 6,545,925 2,040
Payment 6,545,920
Order Status 654,592
Delivery 654,590
Stock Level 654,591
Customer Report 6,545,926
50% 50.2% New Order 5,539,833 2,038
Payment 5,539,842
Order Status 553,983
Delivery 553,986
Stock Level 553,984
Customer Report 5,539,848
40% 39.6% New Order 4,375,835 2,038
Payment 4,375,832
Order Status 437,584
Delivery 437,583
Stock Level 437,584
Customer Report 4,375,834
30% 30.3% New Order 3,350,506 2,039
Payment 3,350,509
Order Status 335,050
Delivery 335,052
Stock Level 335,051
Customer Report 3,350,501
20% 20.0% New Order 2,207,512 2,040
Payment 2,207,515
Order Status 220,752
Delivery 220,751
Stock Level 220,752
Customer Report 2,207,516
10% 9.8% New Order 1,085,530 2,040
Payment 1,085,535
Order Status 108,553
Delivery 108,554
Stock Level 108,554
Customer Report 1,085,532
Active Idle New Order 0 2,040
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
