Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 151,798
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,490
Calibration 2     152,383
Calibration 3     152,406
ssj_ops@calibrated=152,395
100% 99.6% 152,395 151,798
90% 90.1% 137,155 137,339
80% 80.2% 121,916 122,263
70% 69.2% 106,676 105,413
60% 59.1% 91,437 90,132
50% 50.5% 76,197 76,980
40% 40.2% 60,958 61,260
30% 29.6% 45,718 45,046
20% 19.7% 30,479 29,987
10% 10.2% 15,239 15,562
Active Idle   0 0

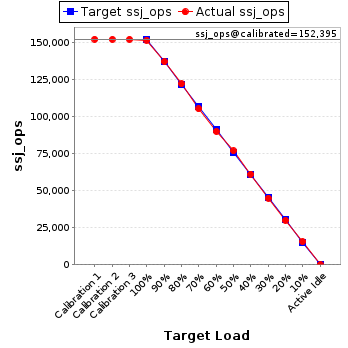

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 11,090,261 2,040
Payment 11,090,258
Order Status 1,109,026
Delivery 1,109,025
Stock Level 1,109,025
Customer Report 11,090,257
Calibration 2 New Order 11,082,401 2,040
Payment 11,082,401
Order Status 1,108,241
Delivery 1,108,240
Stock Level 1,108,240
Customer Report 11,082,397
Calibration 3 New Order 11,084,122 2,040
Payment 11,084,124
Order Status 1,108,412
Delivery 1,108,412
Stock Level 1,108,414
Customer Report 11,084,127
100% 99.6% New Order 11,039,874 2,040
Payment 11,039,867
Order Status 1,103,986
Delivery 1,103,985
Stock Level 1,103,986
Customer Report 11,039,871
90% 90.1% New Order 9,988,693 2,039
Payment 9,988,692
Order Status 998,869
Delivery 998,868
Stock Level 998,869
Customer Report 9,988,694
80% 80.2% New Order 8,891,917 2,040
Payment 8,891,914
Order Status 889,192
Delivery 889,192
Stock Level 889,190
Customer Report 8,891,916
70% 69.2% New Order 7,666,374 2,040
Payment 7,666,375
Order Status 766,636
Delivery 766,639
Stock Level 766,637
Customer Report 7,666,371
60% 59.1% New Order 6,555,089 2,040
Payment 6,555,084
Order Status 655,508
Delivery 655,507
Stock Level 655,509
Customer Report 6,555,091
50% 50.5% New Order 5,598,518 2,038
Payment 5,598,519
Order Status 559,853
Delivery 559,853
Stock Level 559,851
Customer Report 5,598,517
40% 40.2% New Order 4,455,414 2,040
Payment 4,455,414
Order Status 445,542
Delivery 445,541
Stock Level 445,542
Customer Report 4,455,412
30% 29.6% New Order 3,276,324 2,040
Payment 3,276,325
Order Status 327,632
Delivery 327,632
Stock Level 327,632
Customer Report 3,276,320
20% 19.7% New Order 2,180,860 2,039
Payment 2,180,867
Order Status 218,086
Delivery 218,085
Stock Level 218,087
Customer Report 2,180,864
10% 10.2% New Order 1,131,821 2,039
Payment 1,131,818
Order Status 113,181
Delivery 113,182
Stock Level 113,182
Customer Report 1,131,816
Active Idle New Order 0 2,039
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
