Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 152,123
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,554
Calibration 2     152,832
Calibration 3     152,974
ssj_ops@calibrated=152,903
100% 99.5% 152,903 152,123
90% 90.1% 137,613 137,811
80% 79.2% 122,322 121,078
70% 69.5% 107,032 106,293
60% 59.3% 91,742 90,657
50% 49.3% 76,451 75,387
40% 40.5% 61,161 61,852
30% 29.9% 45,871 45,727
20% 20.2% 30,581 30,850
10% 10.2% 15,290 15,542
Active Idle   0 0

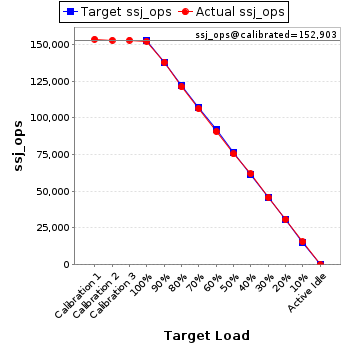

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 11,168,009 2,040
Payment 11,168,012
Order Status 1,116,801
Delivery 1,116,801
Stock Level 1,116,801
Customer Report 11,168,013
Calibration 2 New Order 11,115,071 2,040
Payment 11,115,070
Order Status 1,111,508
Delivery 1,111,507
Stock Level 1,111,507
Customer Report 11,115,071
Calibration 3 New Order 11,125,389 2,040
Payment 11,125,398
Order Status 1,112,539
Delivery 1,112,541
Stock Level 1,112,539
Customer Report 11,125,398
100% 99.5% New Order 11,063,475 2,040
Payment 11,063,474
Order Status 1,106,348
Delivery 1,106,348
Stock Level 1,106,346
Customer Report 11,063,470
90% 90.1% New Order 10,022,990 2,039
Payment 10,022,991
Order Status 1,002,299
Delivery 1,002,300
Stock Level 1,002,299
Customer Report 10,022,993
80% 79.2% New Order 8,805,794 2,040
Payment 8,805,798
Order Status 880,579
Delivery 880,579
Stock Level 880,580
Customer Report 8,805,797
70% 69.5% New Order 7,730,404 2,040
Payment 7,730,407
Order Status 773,041
Delivery 773,042
Stock Level 773,041
Customer Report 7,730,402
60% 59.3% New Order 6,593,258 2,040
Payment 6,593,258
Order Status 659,325
Delivery 659,324
Stock Level 659,326
Customer Report 6,593,260
50% 49.3% New Order 5,482,726 2,038
Payment 5,482,724
Order Status 548,272
Delivery 548,273
Stock Level 548,272
Customer Report 5,482,724
40% 40.5% New Order 4,498,495 2,038
Payment 4,498,498
Order Status 449,850
Delivery 449,850
Stock Level 449,849
Customer Report 4,498,498
30% 29.9% New Order 3,325,589 2,039
Payment 3,325,592
Order Status 332,559
Delivery 332,559
Stock Level 332,560
Customer Report 3,325,592
20% 20.2% New Order 2,243,634 2,040
Payment 2,243,640
Order Status 224,362
Delivery 224,362
Stock Level 224,363
Customer Report 2,243,630
10% 10.2% New Order 1,130,383 2,040
Payment 1,130,386
Order Status 113,039
Delivery 113,040
Stock Level 113,039
Customer Report 1,130,384
Active Idle New Order 0 2,040
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
