Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 143,683
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,701
Calibration 2     144,485
Calibration 3     144,106
ssj_ops@calibrated=144,296
100% 99.6% 144,296 143,683
90% 89.4% 129,866 128,998
80% 79.5% 115,437 114,717
70% 69.3% 101,007 99,925
60% 59.3% 86,577 85,543
50% 50.2% 72,148 72,459
40% 40.5% 57,718 58,412
30% 30.3% 43,289 43,786
20% 20.1% 28,859 28,994
10% 9.8% 14,430 14,071
Active Idle   0 0

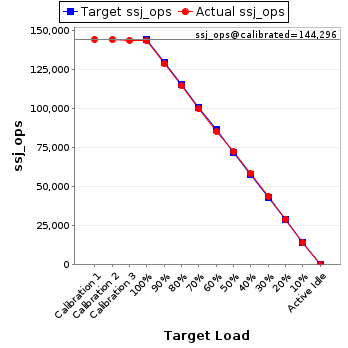

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 10,524,242 2,040
Payment 10,524,242
Order Status 1,052,424
Delivery 1,052,422
Stock Level 1,052,425
Customer Report 10,524,236
Calibration 2 New Order 10,508,887 2,040
Payment 10,508,880
Order Status 1,050,887
Delivery 1,050,889
Stock Level 1,050,888
Customer Report 10,508,882
Calibration 3 New Order 10,480,445 2,040
Payment 10,480,455
Order Status 1,048,045
Delivery 1,048,045
Stock Level 1,048,045
Customer Report 10,480,449
100% 99.6% New Order 10,449,647 2,040
Payment 10,449,650
Order Status 1,044,965
Delivery 1,044,965
Stock Level 1,044,964
Customer Report 10,449,646
90% 89.4% New Order 9,382,106 2,039
Payment 9,382,104
Order Status 938,211
Delivery 938,211
Stock Level 938,210
Customer Report 9,382,105
80% 79.5% New Order 8,343,149 2,040
Payment 8,343,144
Order Status 834,314
Delivery 834,315
Stock Level 834,315
Customer Report 8,343,149
70% 69.3% New Order 7,267,305 2,040
Payment 7,267,304
Order Status 726,730
Delivery 726,728
Stock Level 726,730
Customer Report 7,267,302
60% 59.3% New Order 6,221,289 2,040
Payment 6,221,291
Order Status 622,130
Delivery 622,129
Stock Level 622,129
Customer Report 6,221,289
50% 50.2% New Order 5,269,722 2,039
Payment 5,269,719
Order Status 526,972
Delivery 526,971
Stock Level 526,972
Customer Report 5,269,721
40% 40.5% New Order 4,248,169 2,039
Payment 4,248,167
Order Status 424,817
Delivery 424,818
Stock Level 424,816
Customer Report 4,248,168
30% 30.3% New Order 3,184,474 2,040
Payment 3,184,466
Order Status 318,447
Delivery 318,448
Stock Level 318,448
Customer Report 3,184,468
20% 20.1% New Order 2,108,654 2,038
Payment 2,108,659
Order Status 210,865
Delivery 210,865
Stock Level 210,866
Customer Report 2,108,655
10% 9.8% New Order 1,023,334 2,038
Payment 1,023,332
Order Status 102,333
Delivery 102,333
Stock Level 102,334
Customer Report 1,023,334
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
