Lenovo Global Technology ThinkSystem SD550 V3 ssj_ops@100% = 143,753
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 7, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,732
Calibration 2     144,301
Calibration 3     144,014
ssj_ops@calibrated=144,158
100% 99.7% 144,158 143,753
90% 89.6% 129,742 129,195
80% 80.0% 115,326 115,280
70% 69.5% 100,910 100,221
60% 59.3% 86,495 85,534
50% 49.9% 72,079 71,948
40% 40.5% 57,663 58,409
30% 29.8% 43,247 42,955
20% 20.1% 28,832 28,932
10% 10.2% 14,416 14,770
Active Idle   0 0

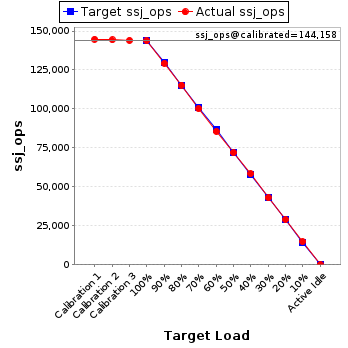

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD550 V3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP5
OS Version: 5.14.21-150500.53-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1 }
JVM Instances: 128
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 10,526,064 2,040
Payment 10,526,062
Order Status 1,052,606
Delivery 1,052,605
Stock Level 1,052,606
Customer Report 10,526,061
Calibration 2 New Order 10,494,865 2,040
Payment 10,494,860
Order Status 1,049,487
Delivery 1,049,487
Stock Level 1,049,487
Customer Report 10,494,862
Calibration 3 New Order 10,474,126 2,040
Payment 10,474,131
Order Status 1,047,414
Delivery 1,047,413
Stock Level 1,047,413
Customer Report 10,474,133
100% 99.7% New Order 10,454,801 2,040
Payment 10,454,800
Order Status 1,045,481
Delivery 1,045,481
Stock Level 1,045,480
Customer Report 10,454,797
90% 89.6% New Order 9,396,518 2,039
Payment 9,396,513
Order Status 939,650
Delivery 939,652
Stock Level 939,651
Customer Report 9,396,522
80% 80.0% New Order 8,384,035 2,040
Payment 8,384,037
Order Status 838,404
Delivery 838,404
Stock Level 838,402
Customer Report 8,384,038
70% 69.5% New Order 7,289,279 2,040
Payment 7,289,282
Order Status 728,927
Delivery 728,928
Stock Level 728,928
Customer Report 7,289,282
60% 59.3% New Order 6,220,650 2,040
Payment 6,220,654
Order Status 622,065
Delivery 622,064
Stock Level 622,066
Customer Report 6,220,649
50% 49.9% New Order 5,232,588 2,038
Payment 5,232,591
Order Status 523,259
Delivery 523,256
Stock Level 523,259
Customer Report 5,232,590
40% 40.5% New Order 4,247,917 2,038
Payment 4,247,918
Order Status 424,792
Delivery 424,791
Stock Level 424,792
Customer Report 4,247,919
30% 29.8% New Order 3,123,980 2,038
Payment 3,123,984
Order Status 312,398
Delivery 312,398
Stock Level 312,397
Customer Report 3,123,985
20% 20.1% New Order 2,104,300 2,038
Payment 2,104,295
Order Status 210,429
Delivery 210,428
Stock Level 210,431
Customer Report 2,104,298
10% 10.2% New Order 1,074,245 2,038
Payment 1,074,243
Order Status 107,424
Delivery 107,425
Stock Level 107,424
Customer Report 1,074,239
Active Idle New Order 0 2,038
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
