Lenovo Global Technology ThinkSystem SD530 V3 ssj_ops@100% = 36,484,655
ssj_ops@100% per Host = 9,121,164
ssj_ops@100% per JVM = 142,518
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 6, 2024
Hardware Availability: Apr-2024 Software Availability: Jan-2024 Publication: May 30, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     36,716,441
Calibration 2     36,817,108
Calibration 3     36,369,379
ssj_ops@calibrated=36,593,244
100% 99.7% 36,593,244 36,484,655
90% 90.0% 32,933,919 32,922,184
80% 80.0% 29,274,595 29,285,462
70% 70.0% 25,615,271 25,608,311
60% 60.0% 21,955,946 21,960,121
50% 50.0% 18,296,622 18,294,158
40% 40.0% 14,637,297 14,627,577
30% 30.0% 10,977,973 10,974,657
20% 20.0% 7,318,649 7,315,439
10% 10.0% 3,659,324 3,658,802
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 4 256 512 1,024 4 256
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ThinkSystem SD530 V3
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 2700
Power Supply Details: Lenovo
Network Switch: None
Network Switch Details: None
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware per Node
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD530 V3
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8592+
CPU Characteristics: 64 Core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 8 x 32768 MB
Memory Details: 32GB 2Rx8 PC5-5600; slots 1 to 8 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1GbE RJ45 4-port
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.2227)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start /NODE[0-1] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000, 0xc000000, 0x30000000, 0xc0000000, 0x300000000, 0xc00000000, 0x3000000000, 0xc000000000, 0x30000000000, 0xc0000000000, 0x300000000000, 0xc00000000000, 0x3000000000000, 0xc000000000000, 0x30000000000000, 0xc0000000000000, 0x300000000000000, 0xc00000000000000, 0x3000000000000000, 0xc000000000000000]
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: FNE114H
Management Firmware Version: USX336I
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5034129
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
WIN-AE4QENU6B75 9,124,481
WIN-B1JR5I5AHQQ 9,115,384
WIN-QKBL1DI75TG 9,123,395
WIN-R1IO8FMLLN3 9,121,395
ssj_ops@100% 36,484,655
ssj_ops@100% per Host 9,121,164
ssj_ops@100% per JVM 142,518
Graph of per-host results
Host 'WIN-AE4QENU6B75' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,169,524
Calibration 2     9,207,666
Calibration 3     9,097,601
ssj_ops@calibrated=9,152,633
100% 99.7% 9,152,633 9,124,481
90% 90.0% 8,237,370 8,236,355
80% 80.0% 7,322,107 7,319,160
70% 70.1% 6,406,843 6,413,231
60% 60.0% 5,491,580 5,490,954
50% 50.0% 4,576,317 4,579,693
40% 40.0% 3,661,053 3,658,037
30% 30.0% 2,745,790 2,745,545
20% 20.0% 1,830,527 1,828,370
10% 10.0% 915,263 913,508
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-B1JR5I5AHQQ' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,165,325
Calibration 2     9,206,737
Calibration 3     9,083,639
ssj_ops@calibrated=9,145,188
100% 99.7% 9,145,188 9,115,384
90% 90.0% 8,230,669 8,230,492
80% 80.1% 7,316,150 7,322,445
70% 70.0% 6,401,632 6,398,509
60% 60.1% 5,487,113 5,495,059
50% 50.0% 4,572,594 4,574,259
40% 40.0% 3,658,075 3,653,787
30% 30.0% 2,743,556 2,745,290
20% 20.0% 1,829,038 1,831,094
10% 10.0% 914,519 915,839
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-QKBL1DI75TG' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,175,565
Calibration 2     9,200,616
Calibration 3     9,095,274
ssj_ops@calibrated=9,147,945
100% 99.7% 9,147,945 9,123,395
90% 89.9% 8,233,151 8,221,908
80% 80.1% 7,318,356 7,323,505
70% 69.9% 6,403,562 6,394,774
60% 60.0% 5,488,767 5,491,050
50% 50.0% 4,573,973 4,571,473
40% 40.0% 3,659,178 3,656,354
30% 29.9% 2,744,384 2,738,734
20% 20.0% 1,829,589 1,828,102
10% 10.0% 914,795 914,950
Active Idle   0 0

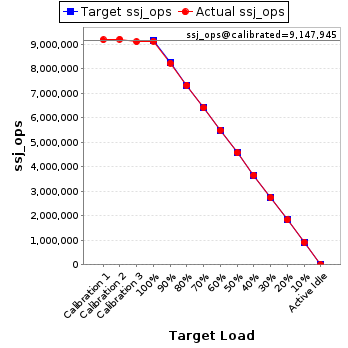

Graph of results
See the Host Performance Report for additional details.
Host 'WIN-R1IO8FMLLN3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,206,027
Calibration 2     9,202,090
Calibration 3     9,092,865
ssj_ops@calibrated=9,147,477
100% 99.7% 9,147,477 9,121,395
90% 90.0% 8,232,729 8,233,429
80% 80.0% 7,317,982 7,320,351
70% 70.0% 6,403,234 6,401,797
60% 59.9% 5,488,486 5,483,058
50% 49.9% 4,573,739 4,568,733
40% 40.0% 3,658,991 3,659,398
30% 30.0% 2,744,243 2,745,088
20% 20.0% 1,829,495 1,827,873
10% 10.0% 914,748 914,506
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
