SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Quanta Cloud Technology QuantaGrid D44N-1U | SPECpower_ssj2008 = 32,317 overall ssj_ops/watt | ||||
| Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
| Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Apr 16, 2024 |
| Hardware Availability: | Nov-2023 | Software Availability: | Jan-2024 | Publication: | May 7, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

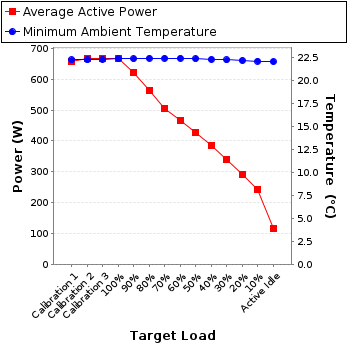

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 657 | 22.2 |
| Calibration 2 | 666 | 22.2 |
| Calibration 3 | 667 | 22.2 |
| 100% | 668 | 22.3 |
| 90% | 620 | 22.3 |
| 80% | 565 | 22.4 |
| 70% | 504 | 22.4 |
| 60% | 465 | 22.4 |
| 50% | 426 | 22.3 |
| 40% | 384 | 22.2 |
| 30% | 339 | 22.2 |
| 20% | 293 | 22.1 |
| 10% | 244 | 22.1 |
| Active Idle | 116 | 22.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91MC16750 |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | SGS |
| Accredited by: | Tai Yi Electronics & Surveillance Co, Ltd. Calibration Laboratory,Taiwan |
| Calibration Label: | ECR2317157 |
| Date of Calibration: | 16-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |

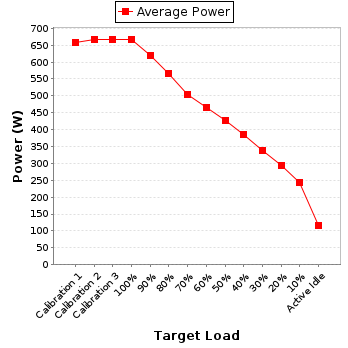

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 216 | 300.0 | 3.05 | 5.0 | 0.997 | 657 | 0.4% |
| Calibration 2 | 216 | 300.0 | 3.09 | 5.0 | 0.996 | 666 | 0.4% |
| Calibration 3 | 216 | 300.0 | 3.10 | 5.0 | 0.996 | 667 | 0.4% |
| 100% | 216 | 300.0 | 3.10 | 5.0 | 0.996 | 668 | 0.4% |
| 90% | 216 | 300.0 | 2.88 | 5.0 | 0.996 | 620 | 0.4% |
| 80% | 216 | 300.0 | 2.62 | 5.0 | 0.995 | 565 | 0.4% |
| 70% | 217 | 300.0 | 2.34 | 5.0 | 0.993 | 504 | 0.5% |
| 60% | 217 | 300.0 | 2.16 | 5.0 | 0.992 | 465 | 0.5% |
| 50% | 217 | 300.0 | 1.98 | 2.0 | 0.990 | 426 | 0.3% |
| 40% | 217 | 300.0 | 1.79 | 2.0 | 0.988 | 384 | 0.3% |
| 30% | 217 | 300.0 | 1.59 | 2.0 | 0.985 | 339 | 0.4% |
| 20% | 217 | 300.0 | 1.37 | 2.0 | 0.980 | 293 | 0.4% |
| 10% | 217 | 300.0 | 1.16 | 2.0 | 0.973 | 244 | 0.4% |
| Active Idle | 218 | 300.0 | 0.598 | 2.0 | 0.896 | 116 | 0.8% |
