IEIT Systems Co., Ltd. NF5280M7 ssj_ops@100% = 15,817,252
ssj_ops@100% per JVM = 123,572
Test Sponsor: IEIT Systems Co., Ltd. SPEC License #: 3358 Test Method: Single Node
Tested By: IEIT Systems Co., Ltd. Test Location: JINAN, CHINA Test Date: Mar 28, 2024
Hardware Availability: Feb-2024 Software Availability: Sep-2023 Publication: Apr 23, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     15,880,628
Calibration 2     15,759,024
Calibration 3     15,889,655
ssj_ops@calibrated=15,824,340
100% 100.0% 15,824,340 15,817,252
90% 91.4% 14,241,906 14,456,225
80% 81.5% 12,659,472 12,900,534
70% 70.2% 11,077,038 11,116,510
60% 59.9% 9,494,604 9,482,203
50% 49.9% 7,912,170 7,892,987
40% 39.9% 6,329,736 6,320,697
30% 30.0% 4,747,302 4,744,709
20% 20.0% 3,164,868 3,163,287
10% 10.0% 1,582,434 1,584,826
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: IEIT Systems Co., Ltd.
Model: NF5280M7
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8592+ Processor 1.90 GHz
CPU Characteristics: 64 core, 1.9GHz, 320MB L3 Cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 128 MB I+D on chip per chip
Tertiary Cache: 320 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32768 MB
Memory Details: 16 x SA_32G_DDR5-4800ER_2R8_B20F, IEIT PN:ZMMY1000362;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU0_C6D0, CPU0_C7D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0, CPU1_C6D0, CPU1_C7D0 populated
Power Supply Quantity and Rating (W): 1 x 1300
Power Supply Details: 1 x 1300w Great Wall Power; G_M_GW-CRPS1300D2W_1300W_1U_P; IEIT PN:V031052000000000
Disk Drive: 1 x 960G PM963_MZQLW960HMJP-00003_NVME;IEIT PN:ZMHD1000265
Disk Controller: Integrated NVME controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel_W_I350-T2V2_RJ_PCI-E4X_1KM
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS
Operating System (OS): Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.1970)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS-1, mixed mode)
JVM Command-line Options: -server -Xmn1650m -Xms1800m -Xmx1800m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE[0-3] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000, 0xc000000, 0x30000000, 0xc0000000, 0x300000000, 0xc00000000, 0x3000000000, 0xc000000000, 0x30000000000, 0xc0000000000, 0x300000000000, 0xc00000000000, 0x3000000000000, 0xc000000000000, 0x30000000000000, 0xc0000000000000, 0x300000000000000, 0xc00000000000000, 0x3000000000000000, 0xc000000000000000]
JVM Instances: 128
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: 05.17.00
Management Firmware Version: 1.49.05
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5030216
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 256 to detect the full number of available processors on the SUT
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-Q3AQLKAF6EB.001 121,211
WIN-Q3AQLKAF6EB.002 119,842
WIN-Q3AQLKAF6EB.003 123,573
WIN-Q3AQLKAF6EB.004 123,329
WIN-Q3AQLKAF6EB.005 120,105
WIN-Q3AQLKAF6EB.006 122,054
WIN-Q3AQLKAF6EB.007 123,287
WIN-Q3AQLKAF6EB.008 122,401
WIN-Q3AQLKAF6EB.009 124,145
WIN-Q3AQLKAF6EB.010 124,289
WIN-Q3AQLKAF6EB.011 121,832
WIN-Q3AQLKAF6EB.012 122,331
WIN-Q3AQLKAF6EB.013 123,365
WIN-Q3AQLKAF6EB.014 123,916
WIN-Q3AQLKAF6EB.015 123,299
WIN-Q3AQLKAF6EB.016 124,282
WIN-Q3AQLKAF6EB.017 123,394
WIN-Q3AQLKAF6EB.018 121,371
WIN-Q3AQLKAF6EB.019 121,947
WIN-Q3AQLKAF6EB.020 123,812
WIN-Q3AQLKAF6EB.021 123,627
WIN-Q3AQLKAF6EB.022 122,941
WIN-Q3AQLKAF6EB.023 126,241
WIN-Q3AQLKAF6EB.024 124,394
WIN-Q3AQLKAF6EB.025 123,803
WIN-Q3AQLKAF6EB.026 123,997
WIN-Q3AQLKAF6EB.027 122,908
WIN-Q3AQLKAF6EB.028 122,973
WIN-Q3AQLKAF6EB.029 124,147
WIN-Q3AQLKAF6EB.030 123,262
WIN-Q3AQLKAF6EB.031 127,185
WIN-Q3AQLKAF6EB.032 123,492
WIN-Q3AQLKAF6EB.033 121,389
WIN-Q3AQLKAF6EB.034 122,327
WIN-Q3AQLKAF6EB.035 122,756
WIN-Q3AQLKAF6EB.036 122,563
WIN-Q3AQLKAF6EB.037 124,319
WIN-Q3AQLKAF6EB.038 123,226
WIN-Q3AQLKAF6EB.039 124,195
WIN-Q3AQLKAF6EB.040 123,640
WIN-Q3AQLKAF6EB.041 122,955
WIN-Q3AQLKAF6EB.042 123,619
WIN-Q3AQLKAF6EB.043 122,646
WIN-Q3AQLKAF6EB.044 123,931
WIN-Q3AQLKAF6EB.045 123,505
WIN-Q3AQLKAF6EB.046 124,882
WIN-Q3AQLKAF6EB.047 124,457
WIN-Q3AQLKAF6EB.048 122,817
WIN-Q3AQLKAF6EB.049 124,075
WIN-Q3AQLKAF6EB.050 123,900
WIN-Q3AQLKAF6EB.051 123,487
WIN-Q3AQLKAF6EB.052 123,058
WIN-Q3AQLKAF6EB.053 125,253
WIN-Q3AQLKAF6EB.054 124,479
WIN-Q3AQLKAF6EB.055 123,574
WIN-Q3AQLKAF6EB.056 123,145
WIN-Q3AQLKAF6EB.057 124,514
WIN-Q3AQLKAF6EB.058 121,819
WIN-Q3AQLKAF6EB.059 124,504
WIN-Q3AQLKAF6EB.060 122,484
WIN-Q3AQLKAF6EB.061 121,385
WIN-Q3AQLKAF6EB.062 124,413
WIN-Q3AQLKAF6EB.063 122,127
WIN-Q3AQLKAF6EB.064 123,424
WIN-Q3AQLKAF6EB.065 122,954
WIN-Q3AQLKAF6EB.066 123,839
WIN-Q3AQLKAF6EB.067 124,706
WIN-Q3AQLKAF6EB.068 125,110
WIN-Q3AQLKAF6EB.069 122,487
WIN-Q3AQLKAF6EB.070 124,305
WIN-Q3AQLKAF6EB.071 121,739
WIN-Q3AQLKAF6EB.072 124,938
WIN-Q3AQLKAF6EB.073 125,159
WIN-Q3AQLKAF6EB.074 126,382
WIN-Q3AQLKAF6EB.075 122,875
WIN-Q3AQLKAF6EB.076 124,427
WIN-Q3AQLKAF6EB.077 125,049
WIN-Q3AQLKAF6EB.078 121,433
WIN-Q3AQLKAF6EB.079 125,211
WIN-Q3AQLKAF6EB.080 124,985
WIN-Q3AQLKAF6EB.081 124,660
WIN-Q3AQLKAF6EB.082 121,672
WIN-Q3AQLKAF6EB.083 122,444
WIN-Q3AQLKAF6EB.084 123,778
WIN-Q3AQLKAF6EB.085 124,268
WIN-Q3AQLKAF6EB.086 124,852
WIN-Q3AQLKAF6EB.087 125,646
WIN-Q3AQLKAF6EB.088 123,200
WIN-Q3AQLKAF6EB.089 123,699
WIN-Q3AQLKAF6EB.090 125,375
WIN-Q3AQLKAF6EB.091 124,115
WIN-Q3AQLKAF6EB.092 124,296
WIN-Q3AQLKAF6EB.093 126,106
WIN-Q3AQLKAF6EB.094 125,332
WIN-Q3AQLKAF6EB.095 127,212
WIN-Q3AQLKAF6EB.096 124,885
WIN-Q3AQLKAF6EB.097 122,215
WIN-Q3AQLKAF6EB.098 122,402
WIN-Q3AQLKAF6EB.099 125,595
WIN-Q3AQLKAF6EB.100 123,283
WIN-Q3AQLKAF6EB.101 123,254
WIN-Q3AQLKAF6EB.102 123,622
WIN-Q3AQLKAF6EB.103 124,878
WIN-Q3AQLKAF6EB.104 125,868
WIN-Q3AQLKAF6EB.105 122,672
WIN-Q3AQLKAF6EB.106 125,146
WIN-Q3AQLKAF6EB.107 124,222
WIN-Q3AQLKAF6EB.108 121,936
WIN-Q3AQLKAF6EB.109 122,522
WIN-Q3AQLKAF6EB.110 120,619
WIN-Q3AQLKAF6EB.111 123,659
WIN-Q3AQLKAF6EB.112 125,007
WIN-Q3AQLKAF6EB.113 125,534
WIN-Q3AQLKAF6EB.114 122,792
WIN-Q3AQLKAF6EB.115 123,385
WIN-Q3AQLKAF6EB.116 121,430
WIN-Q3AQLKAF6EB.117 125,307
WIN-Q3AQLKAF6EB.118 124,006
WIN-Q3AQLKAF6EB.119 121,530
WIN-Q3AQLKAF6EB.120 122,661
WIN-Q3AQLKAF6EB.121 123,962
WIN-Q3AQLKAF6EB.122 125,593
WIN-Q3AQLKAF6EB.123 123,264
WIN-Q3AQLKAF6EB.124 124,392
WIN-Q3AQLKAF6EB.125 122,033
WIN-Q3AQLKAF6EB.126 123,693
WIN-Q3AQLKAF6EB.127 122,605
WIN-Q3AQLKAF6EB.128 119,401
ssj_ops@100% 15,817,252
ssj_ops@100% per JVM 123,572

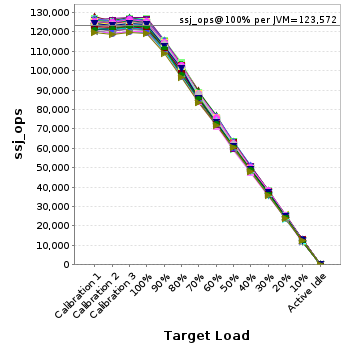

Graph of per-instance results
JVM 'WIN-Q3AQLKAF6EB.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,043
Calibration 2     121,116
Calibration 3     122,024
ssj_ops@calibrated=121,570
100% 99.7% 121,570 121,211
90% 91.3% 109,413 110,997
80% 81.2% 97,256 98,714
70% 70.3% 85,099 85,476
60% 60.0% 72,942 72,893
50% 50.7% 60,785 61,626
40% 39.9% 48,628 48,504
30% 29.9% 36,471 36,379
20% 19.5% 24,314 23,694
10% 9.8% 12,157 11,927
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,671
Calibration 2     119,208
Calibration 3     120,172
ssj_ops@calibrated=119,690
100% 100.1% 119,690 119,842
90% 92.1% 107,721 110,222
80% 80.9% 95,752 96,827
70% 70.4% 83,783 84,273
60% 59.8% 71,814 71,541
50% 50.3% 59,845 60,168
40% 39.9% 47,876 47,727
30% 30.3% 35,907 36,213
20% 20.1% 23,938 24,111
10% 10.0% 11,969 12,004
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,841
Calibration 2     122,685
Calibration 3     123,812
ssj_ops@calibrated=123,248
100% 100.3% 123,248 123,573
90% 91.1% 110,923 112,314
80% 82.3% 98,599 101,397
70% 69.1% 86,274 85,122
60% 60.0% 73,949 73,910
50% 50.6% 61,624 62,412
40% 40.0% 49,299 49,299
30% 29.8% 36,974 36,776
20% 20.0% 24,650 24,618
10% 10.1% 12,325 12,391
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,822
Calibration 2     123,352
Calibration 3     123,855
ssj_ops@calibrated=123,604
100% 99.8% 123,604 123,329
90% 92.0% 111,244 113,682
80% 82.1% 98,883 101,529
70% 70.1% 86,523 86,648
60% 60.1% 74,162 74,238
50% 49.9% 61,802 61,671
40% 39.9% 49,442 49,341
30% 30.3% 37,081 37,428
20% 19.6% 24,721 24,178
10% 10.1% 12,360 12,505
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,709
Calibration 2     119,363
Calibration 3     120,291
ssj_ops@calibrated=119,827
100% 100.2% 119,827 120,105
90% 91.8% 107,845 109,960
80% 82.1% 95,862 98,380
70% 69.8% 83,879 83,619
60% 59.9% 71,896 71,835
50% 49.3% 59,914 59,051
40% 39.6% 47,931 47,418
30% 29.5% 35,948 35,354
20% 19.8% 23,965 23,728
10% 9.7% 11,983 11,663
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,142
Calibration 2     121,874
Calibration 3     122,626
ssj_ops@calibrated=122,250
100% 99.8% 122,250 122,054
90% 92.1% 110,025 112,631
80% 81.8% 97,800 99,961
70% 70.4% 85,575 86,065
60% 59.6% 73,350 72,824
50% 49.9% 61,125 61,017
40% 40.2% 48,900 49,147
30% 30.1% 36,675 36,856
20% 19.9% 24,450 24,322
10% 10.1% 12,225 12,370
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,248
Calibration 2     122,650
Calibration 3     123,694
ssj_ops@calibrated=123,172
100% 100.1% 123,172 123,287
90% 91.4% 110,855 112,542
80% 81.8% 98,538 100,718
70% 69.7% 86,220 85,875
60% 58.7% 73,903 72,333
50% 50.6% 61,586 62,334
40% 40.1% 49,269 49,384
30% 30.1% 36,952 37,039
20% 19.7% 24,634 24,325
10% 9.8% 12,317 12,052
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,103
Calibration 2     121,912
Calibration 3     122,909
ssj_ops@calibrated=122,411
100% 100.0% 122,411 122,401
90% 91.4% 110,169 111,915
80% 80.9% 97,928 99,028
70% 70.8% 85,687 86,715
60% 59.5% 73,446 72,887
50% 50.1% 61,205 61,344
40% 39.8% 48,964 48,704
30% 29.7% 36,723 36,317
20% 19.8% 24,482 24,280
10% 10.4% 12,241 12,704
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,211
Calibration 2     123,760
Calibration 3     124,579
ssj_ops@calibrated=124,170
100% 100.0% 124,170 124,145
90% 91.5% 111,753 113,638
80% 81.3% 99,336 100,959
70% 71.4% 86,919 88,656
60% 59.3% 74,502 73,580
50% 49.2% 62,085 61,132
40% 39.7% 49,668 49,311
30% 29.9% 37,251 37,105
20% 19.8% 24,834 24,562
10% 10.3% 12,417 12,733
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,416
Calibration 2     123,625
Calibration 3     124,608
ssj_ops@calibrated=124,116
100% 100.1% 124,116 124,289
90% 91.7% 111,705 113,783
80% 81.5% 99,293 101,117
70% 71.0% 86,881 88,073
60% 60.0% 74,470 74,447
50% 50.3% 62,058 62,448
40% 40.3% 49,647 49,963
30% 29.6% 37,235 36,687
20% 19.8% 24,823 24,582
10% 10.3% 12,412 12,808
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,585
Calibration 2     121,640
Calibration 3     122,216
ssj_ops@calibrated=121,928
100% 99.9% 121,928 121,832
90% 91.8% 109,735 111,925
80% 81.6% 97,542 99,461
70% 70.6% 85,350 86,104
60% 59.9% 73,157 73,081
50% 50.0% 60,964 60,916
40% 39.7% 48,771 48,464
30% 30.0% 36,578 36,579
20% 20.0% 24,386 24,346
10% 10.0% 12,193 12,133
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,618
Calibration 2     122,124
Calibration 3     122,723
ssj_ops@calibrated=122,424
100% 99.9% 122,424 122,331
90% 91.5% 110,181 111,989
80% 82.4% 97,939 100,912
70% 69.8% 85,697 85,436
60% 59.8% 73,454 73,154
50% 50.2% 61,212 61,469
40% 39.9% 48,969 48,825
30% 29.7% 36,727 36,354
20% 20.3% 24,485 24,885
10% 9.6% 12,242 11,813
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,652
Calibration 2     122,750
Calibration 3     125,552
ssj_ops@calibrated=124,151
100% 99.4% 124,151 123,365
90% 91.2% 111,736 113,198
80% 82.5% 99,321 102,395
70% 71.2% 86,906 88,347
60% 60.4% 74,491 75,041
50% 49.7% 62,076 61,651
40% 39.9% 49,660 49,533
30% 30.1% 37,245 37,322
20% 20.0% 24,830 24,837
10% 9.7% 12,415 12,054
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,394
Calibration 2     123,156
Calibration 3     124,339
ssj_ops@calibrated=123,748
100% 100.1% 123,748 123,916
90% 91.9% 111,373 113,773
80% 80.7% 98,998 99,803
70% 70.2% 86,623 86,830
60% 59.4% 74,249 73,564
50% 49.7% 61,874 61,546
40% 39.9% 49,499 49,340
30% 30.3% 37,124 37,554
20% 19.8% 24,750 24,545
10% 10.0% 12,375 12,391
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,247
Calibration 2     122,191
Calibration 3     123,052
ssj_ops@calibrated=122,622
100% 100.6% 122,622 123,299
90% 91.5% 110,359 112,215
80% 82.9% 98,097 101,667
70% 70.2% 85,835 86,079
60% 60.0% 73,573 73,633
50% 49.7% 61,311 60,897
40% 40.1% 49,049 49,142
30% 30.2% 36,786 37,024
20% 20.3% 24,524 24,897
10% 10.2% 12,262 12,545
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,291
Calibration 2     124,013
Calibration 3     125,125
ssj_ops@calibrated=124,569
100% 99.8% 124,569 124,282
90% 92.2% 112,112 114,828
80% 82.6% 99,655 102,940
70% 71.1% 87,198 88,581
60% 59.5% 74,741 74,059
50% 49.9% 62,285 62,215
40% 39.9% 49,828 49,668
30% 30.1% 37,371 37,476
20% 19.9% 24,914 24,837
10% 10.2% 12,457 12,703
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,176
Calibration 2     122,712
Calibration 3     123,728
ssj_ops@calibrated=123,220
100% 100.1% 123,220 123,394
90% 91.7% 110,898 112,972
80% 81.5% 98,576 100,377
70% 69.9% 86,254 86,184
60% 60.1% 73,932 74,106
50% 50.0% 61,610 61,580
40% 39.6% 49,288 48,854
30% 30.1% 36,966 37,080
20% 20.1% 24,644 24,826
10% 10.1% 12,322 12,398
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,133
Calibration 2     121,253
Calibration 3     121,644
ssj_ops@calibrated=121,448
100% 99.9% 121,448 121,371
90% 90.9% 109,303 110,346
80% 82.3% 97,159 99,998
70% 69.5% 85,014 84,383
60% 60.0% 72,869 72,903
50% 48.9% 60,724 59,422
40% 39.9% 48,579 48,508
30% 30.6% 36,434 37,124
20% 20.1% 24,290 24,462
10% 9.7% 12,145 11,807
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,941
Calibration 2     121,814
Calibration 3     122,536
ssj_ops@calibrated=122,175
100% 99.8% 122,175 121,947
90% 91.9% 109,957 112,275
80% 82.8% 97,740 101,130
70% 70.1% 85,522 85,681
60% 61.0% 73,305 74,474
50% 51.1% 61,087 62,479
40% 40.1% 48,870 48,976
30% 30.0% 36,652 36,695
20% 20.3% 24,435 24,775
10% 9.8% 12,217 11,937
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,100
Calibration 2     123,678
Calibration 3     124,154
ssj_ops@calibrated=123,916
100% 99.9% 123,916 123,812
90% 91.5% 111,524 113,399
80% 81.6% 99,133 101,166
70% 70.5% 86,741 87,407
60% 59.7% 74,349 73,995
50% 48.9% 61,958 60,562
40% 39.7% 49,566 49,174
30% 30.2% 37,175 37,449
20% 20.0% 24,783 24,770
10% 10.1% 12,392 12,565
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,805
Calibration 2     123,286
Calibration 3     124,256
ssj_ops@calibrated=123,771
100% 99.9% 123,771 123,627
90% 92.0% 111,394 113,886
80% 81.8% 99,017 101,205
70% 69.6% 86,640 86,178
60% 60.1% 74,263 74,362
50% 50.0% 61,885 61,855
40% 40.0% 49,508 49,550
30% 30.2% 37,131 37,357
20% 19.9% 24,754 24,582
10% 9.8% 12,377 12,110
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,615
Calibration 2     122,663
Calibration 3     123,427
ssj_ops@calibrated=123,045
100% 99.9% 123,045 122,941
90% 92.2% 110,740 113,405
80% 82.1% 98,436 100,960
70% 70.3% 86,131 86,493
60% 60.0% 73,827 73,829
50% 49.8% 61,522 61,305
40% 40.3% 49,218 49,558
30% 29.8% 36,913 36,635
20% 19.9% 24,609 24,510
10% 10.0% 12,304 12,323
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     128,012
Calibration 2     125,260
Calibration 3     126,235
ssj_ops@calibrated=125,748
100% 100.4% 125,748 126,241
90% 91.5% 113,173 115,044
80% 82.0% 100,598 103,095
70% 71.2% 88,023 89,552
60% 59.7% 75,449 75,064
50% 49.4% 62,874 62,141
40% 39.8% 50,299 50,074
30% 29.6% 37,724 37,208
20% 19.5% 25,150 24,466
10% 10.3% 12,575 12,932
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,062
Calibration 2     123,450
Calibration 3     124,666
ssj_ops@calibrated=124,058
100% 100.3% 124,058 124,394
90% 91.5% 111,652 113,512
80% 81.3% 99,246 100,864
70% 70.4% 86,840 87,372
60% 59.7% 74,435 74,007
50% 49.5% 62,029 61,460
40% 39.4% 49,623 48,870
30% 30.4% 37,217 37,725
20% 20.0% 24,812 24,765
10% 10.1% 12,406 12,498
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,642
Calibration 2     123,250
Calibration 3     124,167
ssj_ops@calibrated=123,708
100% 100.1% 123,708 123,803
90% 91.1% 111,338 112,646
80% 82.5% 98,967 102,010
70% 70.8% 86,596 87,539
60% 60.2% 74,225 74,491
50% 50.6% 61,854 62,545
40% 40.1% 49,483 49,574
30% 29.9% 37,113 37,016
20% 19.9% 24,742 24,614
10% 10.0% 12,371 12,375
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,635
Calibration 2     123,811
Calibration 3     124,256
ssj_ops@calibrated=124,034
100% 100.0% 124,034 123,997
90% 90.8% 111,630 112,597
80% 82.3% 99,227 102,080
70% 69.2% 86,823 85,791
60% 59.9% 74,420 74,249
50% 48.7% 62,017 60,455
40% 39.7% 49,613 49,278
30% 30.4% 37,210 37,718
20% 20.2% 24,807 25,020
10% 9.6% 12,403 11,912
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,765
Calibration 2     122,309
Calibration 3     123,138
ssj_ops@calibrated=122,724
100% 100.2% 122,724 122,908
90% 91.5% 110,451 112,277
80% 80.7% 98,179 99,080
70% 71.2% 85,906 87,374
60% 59.9% 73,634 73,562
50% 49.5% 61,362 60,691
40% 40.6% 49,089 49,804
30% 30.0% 36,817 36,875
20% 20.2% 24,545 24,850
10% 10.3% 12,272 12,657
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,446
Calibration 2     122,456
Calibration 3     123,261
ssj_ops@calibrated=122,859
100% 100.1% 122,859 122,973
90% 91.2% 110,573 112,024
80% 81.4% 98,287 100,000
70% 70.5% 86,001 86,668
60% 60.3% 73,715 74,115
50% 50.3% 61,429 61,758
40% 39.7% 49,143 48,828
30% 30.2% 36,858 37,121
20% 20.4% 24,572 25,098
10% 9.9% 12,286 12,215
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,767
Calibration 2     123,443
Calibration 3     124,239
ssj_ops@calibrated=123,841
100% 100.2% 123,841 124,147
90% 92.1% 111,457 114,049
80% 82.3% 99,073 101,948
70% 70.6% 86,688 87,383
60% 60.0% 74,304 74,355
50% 49.7% 61,920 61,524
40% 40.2% 49,536 49,838
30% 30.2% 37,152 37,371
20% 19.9% 24,768 24,590
10% 10.5% 12,384 13,016
Active Idle   0 0
Graph of results

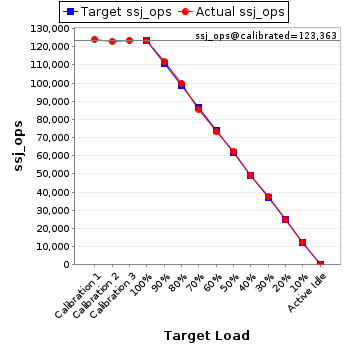

JVM 'WIN-Q3AQLKAF6EB.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,179
Calibration 2     123,054
Calibration 3     123,672
ssj_ops@calibrated=123,363
100% 99.9% 123,363 123,262
90% 90.6% 111,026 111,775
80% 80.9% 98,690 99,834
70% 69.5% 86,354 85,681
60% 59.4% 74,018 73,298
50% 50.6% 61,681 62,432
40% 39.9% 49,345 49,233
30% 30.2% 37,009 37,279
20% 19.9% 24,673 24,607
10% 10.1% 12,336 12,445
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,847
Calibration 2     126,134
Calibration 3     126,962
ssj_ops@calibrated=126,548
100% 100.5% 126,548 127,185
90% 91.4% 113,893 115,643
80% 82.5% 101,238 104,448
70% 70.3% 88,584 88,997
60% 59.9% 75,929 75,766
50% 49.8% 63,274 63,075
40% 39.9% 50,619 50,453
30% 30.3% 37,964 38,358
20% 19.6% 25,310 24,744
10% 9.8% 12,655 12,464
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,176
Calibration 2     123,463
Calibration 3     124,162
ssj_ops@calibrated=123,812
100% 99.7% 123,812 123,492
90% 91.7% 111,431 113,525
80% 82.4% 99,050 102,006
70% 70.4% 86,669 87,226
60% 60.0% 74,287 74,234
50% 49.2% 61,906 60,962
40% 39.7% 49,525 49,101
30% 30.0% 37,144 37,174
20% 19.9% 24,762 24,682
10% 10.3% 12,381 12,803
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,052
Calibration 2     121,279
Calibration 3     121,810
ssj_ops@calibrated=121,544
100% 99.9% 121,544 121,389
90% 92.2% 109,390 112,120
80% 81.3% 97,236 98,827
70% 71.0% 85,081 86,244
60% 58.5% 72,927 71,162
50% 49.9% 60,772 60,664
40% 39.1% 48,618 47,564
30% 30.5% 36,463 37,112
20% 20.6% 24,309 24,981
10% 10.1% 12,154 12,235
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,818
Calibration 2     121,929
Calibration 3     122,551
ssj_ops@calibrated=122,240
100% 100.1% 122,240 122,327
90% 91.7% 110,016 112,053
80% 80.7% 97,792 98,614
70% 70.7% 85,568 86,438
60% 59.5% 73,344 72,708
50% 50.2% 61,120 61,313
40% 39.8% 48,896 48,652
30% 29.9% 36,672 36,536
20% 20.1% 24,448 24,530
10% 9.7% 12,224 11,866
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,607
Calibration 2     122,864
Calibration 3     123,580
ssj_ops@calibrated=123,222
100% 99.6% 123,222 122,756
90% 92.3% 110,900 113,690
80% 81.5% 98,578 100,402
70% 69.7% 86,255 85,920
60% 60.0% 73,933 73,959
50% 48.7% 61,611 59,997
40% 39.5% 49,289 48,689
30% 30.5% 36,967 37,553
20% 20.0% 24,644 24,645
10% 9.9% 12,322 12,216
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,222
Calibration 2     122,597
Calibration 3     122,631
ssj_ops@calibrated=122,614
100% 100.0% 122,614 122,563
90% 92.2% 110,353 113,087
80% 82.5% 98,091 101,104
70% 71.2% 85,830 87,343
60% 60.7% 73,568 74,396
50% 49.8% 61,307 61,081
40% 40.5% 49,046 49,675
30% 29.6% 36,784 36,327
20% 20.0% 24,523 24,530
10% 10.2% 12,261 12,559
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,010
Calibration 2     124,039
Calibration 3     124,182
ssj_ops@calibrated=124,110
100% 100.2% 124,110 124,319
90% 91.1% 111,699 113,052
80% 81.1% 99,288 100,711
70% 71.2% 86,877 88,335
60% 59.6% 74,466 74,010
50% 50.2% 62,055 62,251
40% 40.1% 49,644 49,814
30% 29.8% 37,233 36,948
20% 20.2% 24,822 25,050
10% 10.1% 12,411 12,549
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,816
Calibration 2     122,969
Calibration 3     123,680
ssj_ops@calibrated=123,324
100% 99.9% 123,324 123,226
90% 91.7% 110,992 113,058
80% 81.3% 98,660 100,223
70% 70.6% 86,327 87,020
60% 59.7% 73,995 73,580
50% 49.5% 61,662 60,991
40% 39.8% 49,330 49,134
30% 30.1% 36,997 37,106
20% 19.7% 24,665 24,302
10% 9.8% 12,332 12,137
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,703
Calibration 2     123,998
Calibration 3     124,634
ssj_ops@calibrated=124,316
100% 99.9% 124,316 124,195
90% 91.5% 111,884 113,811
80% 80.6% 99,453 100,161
70% 70.8% 87,021 88,058
60% 59.4% 74,590 73,862
50% 50.3% 62,158 62,492
40% 39.5% 49,726 49,045
30% 29.6% 37,295 36,802
20% 20.0% 24,863 24,812
10% 10.3% 12,432 12,834
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,564
Calibration 2     124,067
Calibration 3     124,472
ssj_ops@calibrated=124,270
100% 99.5% 124,270 123,640
90% 91.2% 111,843 113,375
80% 82.2% 99,416 102,177
70% 70.7% 86,989 87,832
60% 60.4% 74,562 75,059
50% 49.9% 62,135 62,068
40% 40.0% 49,708 49,666
30% 29.6% 37,281 36,737
20% 19.8% 24,854 24,581
10% 9.9% 12,427 12,346
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,031
Calibration 2     122,409
Calibration 3     123,421
ssj_ops@calibrated=122,915
100% 100.0% 122,915 122,955
90% 91.9% 110,624 112,900
80% 81.0% 98,332 99,600
70% 69.8% 86,041 85,823
60% 60.0% 73,749 73,768
50% 50.1% 61,458 61,565
40% 40.3% 49,166 49,557
30% 29.9% 36,875 36,791
20% 19.8% 24,583 24,356
10% 10.2% 12,292 12,565
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,170
Calibration 2     123,752
Calibration 3     124,776
ssj_ops@calibrated=124,264
100% 99.5% 124,264 123,619
90% 90.8% 111,838 112,781
80% 81.7% 99,411 101,530
70% 70.5% 86,985 87,657
60% 59.8% 74,558 74,358
50% 49.7% 62,132 61,745
40% 40.0% 49,706 49,689
30% 29.6% 37,279 36,747
20% 20.2% 24,853 25,068
10% 10.0% 12,426 12,394
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,011
Calibration 2     122,258
Calibration 3     123,617
ssj_ops@calibrated=122,937
100% 99.8% 122,937 122,646
90% 91.2% 110,644 112,076
80% 80.7% 98,350 99,236
70% 70.2% 86,056 86,286
60% 59.9% 73,762 73,664
50% 49.8% 61,469 61,163
40% 40.3% 49,175 49,604
30% 30.0% 36,881 36,852
20% 20.3% 24,587 24,931
10% 10.3% 12,294 12,637
Active Idle   0 0
Graph of results

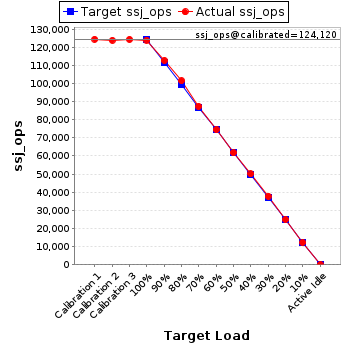

JVM 'WIN-Q3AQLKAF6EB.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,456
Calibration 2     123,877
Calibration 3     124,362
ssj_ops@calibrated=124,120
100% 99.8% 124,120 123,931
90% 90.8% 111,708 112,724
80% 81.8% 99,296 101,511
70% 70.5% 86,884 87,449
60% 60.1% 74,472 74,545
50% 49.8% 62,060 61,772
40% 40.3% 49,648 50,058
30% 30.5% 37,236 37,804
20% 20.1% 24,824 24,920
10% 9.9% 12,412 12,322
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,490
Calibration 2     123,586
Calibration 3     123,977
ssj_ops@calibrated=123,781
100% 99.8% 123,781 123,505
90% 91.5% 111,403 113,313
80% 82.4% 99,025 102,008
70% 70.7% 86,647 87,471
60% 59.9% 74,269 74,177
50% 49.9% 61,891 61,722
40% 40.4% 49,512 49,979
30% 30.2% 37,134 37,405
20% 20.0% 24,756 24,728
10% 10.0% 12,378 12,329
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,362
Calibration 2     124,374
Calibration 3     125,132
ssj_ops@calibrated=124,753
100% 100.1% 124,753 124,882
90% 91.8% 112,278 114,494
80% 82.0% 99,802 102,263
70% 70.7% 87,327 88,204
60% 60.1% 74,852 75,028
50% 50.1% 62,377 62,517
40% 39.7% 49,901 49,489
30% 29.7% 37,426 37,051
20% 20.5% 24,951 25,557
10% 9.9% 12,475 12,335
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,396
Calibration 2     123,918
Calibration 3     124,871
ssj_ops@calibrated=124,395
100% 100.1% 124,395 124,457
90% 91.7% 111,955 114,071
80% 81.9% 99,516 101,884
70% 70.2% 87,076 87,319
60% 59.7% 74,637 74,320
50% 49.2% 62,197 61,235
40% 40.2% 49,758 49,970
30% 29.6% 37,318 36,873
20% 20.0% 24,879 24,869
10% 10.4% 12,439 12,924
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,072
Calibration 2     122,302
Calibration 3     123,414
ssj_ops@calibrated=122,858
100% 100.0% 122,858 122,817
90% 91.2% 110,572 112,080
80% 81.4% 98,286 99,949
70% 69.6% 86,000 85,501
60% 60.1% 73,715 73,874
50% 49.5% 61,429 60,814
40% 40.0% 49,143 49,116
30% 30.4% 36,857 37,295
20% 19.9% 24,572 24,495
10% 9.9% 12,286 12,179
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,541
Calibration 2     123,769
Calibration 3     124,216
ssj_ops@calibrated=123,993
100% 100.1% 123,993 124,075
90% 91.9% 111,593 113,979
80% 81.7% 99,194 101,315
70% 70.3% 86,795 87,172
60% 59.6% 74,396 73,850
50% 49.7% 61,996 61,638
40% 39.6% 49,597 49,041
30% 30.6% 37,198 37,929
20% 20.0% 24,799 24,783
10% 10.2% 12,399 12,667
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,660
Calibration 2     122,995
Calibration 3     124,117
ssj_ops@calibrated=123,556
100% 100.3% 123,556 123,900
90% 90.9% 111,200 112,325
80% 81.5% 98,845 100,739
70% 69.5% 86,489 85,849
60% 59.9% 74,133 74,045
50% 49.6% 61,778 61,244
40% 40.1% 49,422 49,544
30% 30.0% 37,067 37,125
20% 20.3% 24,711 25,035
10% 10.2% 12,356 12,637
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,271
Calibration 2     123,014
Calibration 3     124,209
ssj_ops@calibrated=123,611
100% 99.9% 123,611 123,487
90% 91.8% 111,250 113,517
80% 81.8% 98,889 101,056
70% 70.6% 86,528 87,283
60% 59.6% 74,167 73,716
50% 49.5% 61,806 61,137
40% 39.6% 49,445 48,973
30% 29.9% 37,083 36,907
20% 19.7% 24,722 24,378
10% 9.8% 12,361 12,112
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,213
Calibration 2     121,643
Calibration 3     122,808
ssj_ops@calibrated=122,226
100% 100.7% 122,226 123,058
90% 91.3% 110,003 111,558
80% 81.5% 97,781 99,664
70% 70.9% 85,558 86,669
60% 59.7% 73,335 72,965
50% 50.4% 61,113 61,612
40% 39.8% 48,890 48,590
30% 29.6% 36,668 36,198
20% 20.4% 24,445 24,879
10% 9.8% 12,223 12,010
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,052
Calibration 2     124,640
Calibration 3     125,519
ssj_ops@calibrated=125,080
100% 100.1% 125,080 125,253
90% 91.3% 112,572 114,210
80% 80.6% 100,064 100,843
70% 71.0% 87,556 88,802
60% 59.7% 75,048 74,655
50% 50.7% 62,540 63,397
40% 40.2% 50,032 50,328
30% 30.5% 37,524 38,122
20% 19.9% 25,016 24,860
10% 9.8% 12,508 12,237
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,164
Calibration 2     123,966
Calibration 3     124,752
ssj_ops@calibrated=124,359
100% 100.1% 124,359 124,479
90% 90.3% 111,923 112,264
80% 81.5% 99,487 101,319
70% 70.3% 87,051 87,431
60% 59.2% 74,615 73,647
50% 49.0% 62,180 60,994
40% 39.5% 49,744 49,091
30% 29.7% 37,308 36,910
20% 20.4% 24,872 25,353
10% 9.9% 12,436 12,275
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,324
Calibration 2     122,870
Calibration 3     124,065
ssj_ops@calibrated=123,468
100% 100.1% 123,468 123,574
90% 91.7% 111,121 113,162
80% 82.0% 98,774 101,263
70% 69.7% 86,427 86,069
60% 60.1% 74,081 74,260
50% 49.9% 61,734 61,576
40% 40.1% 49,387 49,465
30% 30.1% 37,040 37,164
20% 19.7% 24,694 24,279
10% 10.1% 12,347 12,425
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,515
Calibration 2     122,256
Calibration 3     123,432
ssj_ops@calibrated=122,844
100% 100.2% 122,844 123,145
90% 91.5% 110,559 112,351
80% 80.8% 98,275 99,242
70% 69.5% 85,991 85,367
60% 60.5% 73,706 74,379
50% 50.4% 61,422 61,947
40% 40.5% 49,138 49,741
30% 30.0% 36,853 36,847
20% 20.1% 24,569 24,691
10% 9.7% 12,284 11,929
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,827
Calibration 2     123,488
Calibration 3     124,266
ssj_ops@calibrated=123,877
100% 100.5% 123,877 124,514
90% 92.1% 111,489 114,078
80% 81.3% 99,101 100,726
70% 69.9% 86,714 86,594
60% 59.7% 74,326 73,969
50% 49.8% 61,938 61,655
40% 39.7% 49,551 49,159
30% 30.2% 37,163 37,446
20% 19.9% 24,775 24,622
10% 10.2% 12,388 12,612
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,094
Calibration 2     121,437
Calibration 3     122,697
ssj_ops@calibrated=122,067
100% 99.8% 122,067 121,819
90% 91.5% 109,860 111,670
80% 80.9% 97,654 98,740
70% 71.0% 85,447 86,728
60% 59.2% 73,240 72,320
50% 49.6% 61,034 60,587
40% 39.7% 48,827 48,407
30% 30.5% 36,620 37,180
20% 20.0% 24,413 24,460
10% 9.9% 12,207 12,054
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,209
Calibration 2     123,983
Calibration 3     124,289
ssj_ops@calibrated=124,136
100% 100.3% 124,136 124,504
90% 91.6% 111,723 113,660
80% 81.5% 99,309 101,191
70% 69.2% 86,895 85,940
60% 60.0% 74,482 74,485
50% 50.3% 62,068 62,388
40% 39.8% 49,655 49,419
30% 29.9% 37,241 37,071
20% 19.7% 24,827 24,416
10% 10.1% 12,414 12,570
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,775
Calibration 2     121,551
Calibration 3     123,218
ssj_ops@calibrated=122,384
100% 100.1% 122,384 122,484
90% 91.3% 110,146 111,772
80% 81.8% 97,908 100,110
70% 69.4% 85,669 84,903
60% 59.7% 73,431 73,028
50% 49.4% 61,192 60,450
40% 40.2% 48,954 49,256
30% 30.0% 36,715 36,759
20% 19.8% 24,477 24,200
10% 9.8% 12,238 11,944
Active Idle   0 0
Graph of results

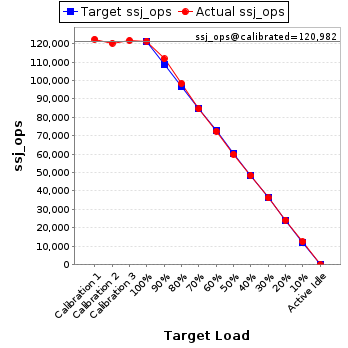

JVM 'WIN-Q3AQLKAF6EB.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,386
Calibration 2     120,230
Calibration 3     121,735
ssj_ops@calibrated=120,982
100% 100.3% 120,982 121,385
90% 92.3% 108,884 111,723
80% 81.3% 96,786 98,345
70% 69.9% 84,688 84,600
60% 59.8% 72,589 72,371
50% 49.5% 60,491 59,939
40% 40.0% 48,393 48,360
30% 29.9% 36,295 36,222
20% 20.0% 24,196 24,218
10% 10.3% 12,098 12,450
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,089
Calibration 2     123,058
Calibration 3     124,441
ssj_ops@calibrated=123,750
100% 100.5% 123,750 124,413
90% 91.7% 111,375 113,443
80% 82.1% 99,000 101,609
70% 70.3% 86,625 86,979
60% 60.3% 74,250 74,610
50% 50.3% 61,875 62,228
40% 39.9% 49,500 49,406
30% 29.8% 37,125 36,852
20% 20.1% 24,750 24,835
10% 10.2% 12,375 12,594
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,419
Calibration 2     121,369
Calibration 3     122,522
ssj_ops@calibrated=121,946
100% 100.1% 121,946 122,127
90% 91.5% 109,751 111,536
80% 81.3% 97,557 99,175
70% 69.8% 85,362 85,078
60% 60.2% 73,167 73,368
50% 50.3% 60,973 61,365
40% 39.9% 48,778 48,621
30% 29.9% 36,584 36,407
20% 19.9% 24,389 24,250
10% 9.8% 12,195 11,912
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,774
Calibration 2     122,545
Calibration 3     123,153
ssj_ops@calibrated=122,849
100% 100.5% 122,849 123,424
90% 91.7% 110,564 112,657
80% 80.9% 98,279 99,379
70% 71.6% 85,994 87,994
60% 59.9% 73,710 73,554
50% 49.3% 61,425 60,607
40% 39.2% 49,140 48,210
30% 29.5% 36,855 36,258
20% 20.0% 24,570 24,586
10% 10.0% 12,285 12,312
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,986
Calibration 2     122,544
Calibration 3     123,734
ssj_ops@calibrated=123,139
100% 99.8% 123,139 122,954
90% 90.5% 110,825 111,433
80% 81.1% 98,511 99,806
70% 70.1% 86,198 86,357
60% 60.3% 73,884 74,204
50% 50.6% 61,570 62,343
40% 40.2% 49,256 49,513
30% 30.4% 36,942 37,442
20% 19.8% 24,628 24,395
10% 9.8% 12,314 12,059
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,794
Calibration 2     122,426
Calibration 3     123,948
ssj_ops@calibrated=123,187
100% 100.5% 123,187 123,839
90% 91.7% 110,868 112,999
80% 82.5% 98,549 101,656
70% 70.6% 86,231 86,999
60% 60.3% 73,912 74,265
50% 49.5% 61,593 60,927
40% 39.6% 49,275 48,833
30% 29.5% 36,956 36,309
20% 19.9% 24,637 24,466
10% 10.2% 12,319 12,504
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,707
Calibration 2     124,561
Calibration 3     124,976
ssj_ops@calibrated=124,768
100% 100.0% 124,768 124,706
90% 89.5% 112,292 111,719
80% 81.1% 99,815 101,196
70% 70.7% 87,338 88,205
60% 59.8% 74,861 74,599
50% 49.7% 62,384 61,985
40% 39.7% 49,907 49,536
30% 29.7% 37,431 37,097
20% 20.2% 24,954 25,200
10% 9.8% 12,477 12,241
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,520
Calibration 2     124,692
Calibration 3     125,926
ssj_ops@calibrated=125,309
100% 99.8% 125,309 125,110
90% 89.7% 112,778 112,418
80% 81.4% 100,247 102,000
70% 70.1% 87,716 87,822
60% 60.2% 75,185 75,451
50% 50.0% 62,654 62,695
40% 39.5% 50,123 49,485
30% 30.2% 37,593 37,829
20% 20.4% 25,062 25,564
10% 10.1% 12,531 12,633
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,060
Calibration 2     121,560
Calibration 3     123,001
ssj_ops@calibrated=122,280
100% 100.2% 122,280 122,487
90% 91.4% 110,052 111,825
80% 82.6% 97,824 101,043
70% 71.3% 85,596 87,246
60% 60.4% 73,368 73,839
50% 49.8% 61,140 60,893
40% 40.1% 48,912 49,058
30% 30.5% 36,684 37,271
20% 20.1% 24,456 24,637
10% 9.6% 12,228 11,779
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,906
Calibration 2     124,211
Calibration 3     124,858
ssj_ops@calibrated=124,534
100% 99.8% 124,534 124,305
90% 91.2% 112,081 113,552
80% 81.3% 99,627 101,203
70% 70.1% 87,174 87,261
60% 60.0% 74,721 74,763
50% 50.3% 62,267 62,657
40% 39.7% 49,814 49,475
30% 30.3% 37,360 37,715
20% 19.9% 24,907 24,793
10% 9.9% 12,453 12,320
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,328
Calibration 2     121,017
Calibration 3     122,056
ssj_ops@calibrated=121,536
100% 100.2% 121,536 121,739
90% 91.9% 109,383 111,679
80% 81.1% 97,229 98,594
70% 70.9% 85,075 86,184
60% 60.2% 72,922 73,155
50% 49.9% 60,768 60,589
40% 40.0% 48,615 48,607
30% 29.9% 36,461 36,323
20% 19.8% 24,307 24,046
10% 10.1% 12,154 12,229
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,806
Calibration 2     124,718
Calibration 3     125,492
ssj_ops@calibrated=125,105
100% 99.9% 125,105 124,938
90% 90.8% 112,594 113,536
80% 81.1% 100,084 101,445
70% 69.9% 87,573 87,465
60% 59.6% 75,063 74,519
50% 49.8% 62,552 62,344
40% 40.2% 50,042 50,322
30% 30.2% 37,531 37,782
20% 19.6% 25,021 24,578
10% 9.9% 12,510 12,346
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,040
Calibration 2     124,473
Calibration 3     126,105
ssj_ops@calibrated=125,289
100% 99.9% 125,289 125,159
90% 91.1% 112,760 114,200
80% 81.4% 100,231 102,037
70% 69.9% 87,702 87,614
60% 59.4% 75,173 74,360
50% 49.6% 62,644 62,154
40% 40.7% 50,116 50,997
30% 30.0% 37,587 37,639
20% 20.3% 25,058 25,376
10% 10.0% 12,529 12,524
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,447
Calibration 2     126,113
Calibration 3     127,003
ssj_ops@calibrated=126,558
100% 99.9% 126,558 126,382
90% 90.5% 113,902 114,523
80% 80.4% 101,247 101,757
70% 69.4% 88,591 87,818
60% 59.7% 75,935 75,605
50% 50.2% 63,279 63,525
40% 40.4% 50,623 51,112
30% 29.5% 37,967 37,346
20% 19.7% 25,312 24,883
10% 10.1% 12,656 12,733
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,478
Calibration 2     122,019
Calibration 3     122,900
ssj_ops@calibrated=122,460
100% 100.3% 122,460 122,875
90% 91.2% 110,214 111,633
80% 81.0% 97,968 99,235
70% 70.2% 85,722 85,986
60% 60.2% 73,476 73,733
50% 49.9% 61,230 61,053
40% 39.7% 48,984 48,656
30% 30.0% 36,738 36,708
20% 19.8% 24,492 24,221
10% 10.2% 12,246 12,437
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,336
Calibration 2     124,215
Calibration 3     126,005
ssj_ops@calibrated=125,110
100% 99.5% 125,110 124,427
90% 91.3% 112,599 114,233
80% 81.5% 100,088 101,912
70% 70.0% 87,577 87,538
60% 59.7% 75,066 74,683
50% 50.6% 62,555 63,301
40% 40.3% 50,044 50,480
30% 29.8% 37,533 37,244
20% 20.0% 25,022 25,009
10% 9.9% 12,511 12,375
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,740
Calibration 2     124,388
Calibration 3     126,103
ssj_ops@calibrated=125,246
100% 99.8% 125,246 125,049
90% 91.1% 112,721 114,121
80% 81.1% 100,196 101,517
70% 70.9% 87,672 88,850
60% 60.1% 75,147 75,217
50% 49.9% 62,623 62,557
40% 39.6% 50,098 49,646
30% 30.0% 37,574 37,523
20% 20.1% 25,049 25,141
10% 9.6% 12,525 12,013
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,402
Calibration 2     121,238
Calibration 3     122,484
ssj_ops@calibrated=121,861
100% 99.6% 121,861 121,433
90% 91.1% 109,675 111,064
80% 81.2% 97,489 98,961
70% 71.1% 85,303 86,605
60% 59.9% 73,117 73,026
50% 49.9% 60,931 60,796
40% 40.2% 48,744 48,942
30% 30.2% 36,558 36,761
20% 20.1% 24,372 24,493
10% 10.1% 12,186 12,271
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,255
Calibration 2     125,008
Calibration 3     125,444
ssj_ops@calibrated=125,226
100% 100.0% 125,226 125,211
90% 89.9% 112,704 112,627
80% 82.6% 100,181 103,402
70% 70.1% 87,658 87,761
60% 60.2% 75,136 75,399
50% 49.6% 62,613 62,083
40% 39.8% 50,090 49,856
30% 29.9% 37,568 37,402
20% 20.0% 25,045 25,049
10% 10.2% 12,523 12,774
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,844
Calibration 2     124,530
Calibration 3     125,698
ssj_ops@calibrated=125,114
100% 99.9% 125,114 124,985
90% 91.9% 112,603 114,997
80% 80.3% 100,091 100,496
70% 70.0% 87,580 87,543
60% 60.2% 75,068 75,280
50% 49.5% 62,557 61,874
40% 40.1% 50,046 50,200
30% 29.6% 37,534 37,067
20% 20.7% 25,023 25,870
10% 10.0% 12,511 12,479
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,915
Calibration 2     123,815
Calibration 3     125,292
ssj_ops@calibrated=124,554
100% 100.1% 124,554 124,660
90% 91.7% 112,098 114,232
80% 81.4% 99,643 101,439
70% 70.1% 87,188 87,366
60% 60.0% 74,732 74,704
50% 50.3% 62,277 62,630
40% 40.1% 49,821 49,959
30% 30.4% 37,366 37,863
20% 19.7% 24,911 24,548
10% 10.3% 12,455 12,841
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,682
Calibration 2     121,336
Calibration 3     122,340
ssj_ops@calibrated=121,838
100% 99.9% 121,838 121,672
90% 91.1% 109,654 111,044
80% 80.5% 97,470 98,025
70% 70.0% 85,287 85,244
60% 60.1% 73,103 73,185
50% 50.2% 60,919 61,138
40% 40.2% 48,735 48,962
30% 29.7% 36,551 36,156
20% 19.9% 24,368 24,281
10% 10.0% 12,184 12,125
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,494
Calibration 2     122,003
Calibration 3     123,421
ssj_ops@calibrated=122,712
100% 99.8% 122,712 122,444
90% 91.0% 110,441 111,716
80% 81.5% 98,170 100,002
70% 70.1% 85,898 86,015
60% 59.3% 73,627 72,766
50% 49.7% 61,356 61,006
40% 40.3% 49,085 49,497
30% 29.5% 36,814 36,260
20% 19.9% 24,542 24,411
10% 10.1% 12,271 12,370
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,617
Calibration 2     123,388
Calibration 3     124,179
ssj_ops@calibrated=123,783
100% 100.0% 123,783 123,778
90% 91.8% 111,405 113,575
80% 81.1% 99,027 100,343
70% 70.3% 86,648 87,029
60% 58.9% 74,270 72,932
50% 49.7% 61,892 61,564
40% 39.7% 49,513 49,098
30% 29.7% 37,135 36,756
20% 20.1% 24,757 24,894
10% 9.9% 12,378 12,282
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,211
Calibration 2     123,803
Calibration 3     124,799
ssj_ops@calibrated=124,301
100% 100.0% 124,301 124,268
90% 91.0% 111,871 113,134
80% 80.3% 99,441 99,811
70% 70.2% 87,011 87,258
60% 60.3% 74,581 74,933
50% 49.7% 62,150 61,722
40% 39.4% 49,720 49,034
30% 29.3% 37,290 36,427
20% 20.3% 24,860 25,196
10% 9.7% 12,430 12,061
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,786
Calibration 2     124,547
Calibration 3     125,747
ssj_ops@calibrated=125,147
100% 99.8% 125,147 124,852
90% 90.6% 112,632 113,419
80% 81.7% 100,117 102,226
70% 70.1% 87,603 87,761
60% 59.4% 75,088 74,347
50% 50.6% 62,573 63,347
40% 40.5% 50,059 50,634
30% 29.6% 37,544 37,058
20% 20.1% 25,029 25,105
10% 10.0% 12,515 12,571
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,469
Calibration 2     125,284
Calibration 3     126,446
ssj_ops@calibrated=125,865
100% 99.8% 125,865 125,646
90% 91.8% 113,279 115,489
80% 81.4% 100,692 102,445
70% 70.2% 88,106 88,375
60% 59.9% 75,519 75,334
50% 50.2% 62,933 63,246
40% 39.3% 50,346 49,466
30% 30.1% 37,760 37,871
20% 20.1% 25,173 25,266
10% 9.9% 12,587 12,447
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,689
Calibration 2     122,277
Calibration 3     123,703
ssj_ops@calibrated=122,990
100% 100.2% 122,990 123,200
90% 91.4% 110,691 112,436
80% 82.6% 98,392 101,588
70% 70.5% 86,093 86,699
60% 60.3% 73,794 74,110
50% 49.8% 61,495 61,263
40% 39.6% 49,196 48,683
30% 29.5% 36,897 36,273
20% 20.7% 24,598 25,485
10% 10.1% 12,299 12,483
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,545
Calibration 2     123,097
Calibration 3     123,900
ssj_ops@calibrated=123,498
100% 100.2% 123,498 123,699
90% 91.0% 111,148 112,330
80% 80.5% 98,799 99,459
70% 69.8% 86,449 86,179
60% 59.7% 74,099 73,684
50% 50.3% 61,749 62,098
40% 40.0% 49,399 49,435
30% 29.8% 37,049 36,833
20% 20.4% 24,700 25,220
10% 10.1% 12,350 12,450
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,890
Calibration 2     124,134
Calibration 3     126,026
ssj_ops@calibrated=125,080
100% 100.2% 125,080 125,375
90% 91.1% 112,572 113,984
80% 81.5% 100,064 101,971
70% 70.1% 87,556 87,636
60% 60.3% 75,048 75,367
50% 50.1% 62,540 62,720
40% 39.9% 50,032 49,891
30% 29.3% 37,524 36,695
20% 20.1% 25,016 25,192
10% 10.2% 12,508 12,704
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,971
Calibration 2     123,695
Calibration 3     124,546
ssj_ops@calibrated=124,121
100% 100.0% 124,121 124,115
90% 91.6% 111,709 113,745
80% 81.5% 99,297 101,153
70% 69.7% 86,885 86,505
60% 60.1% 74,472 74,594
50% 50.7% 62,060 62,966
40% 40.4% 49,648 50,105
30% 30.2% 37,236 37,510
20% 20.5% 24,824 25,412
10% 10.1% 12,412 12,527
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,033
Calibration 2     123,109
Calibration 3     124,784
ssj_ops@calibrated=123,947
100% 100.3% 123,947 124,296
90% 91.0% 111,552 112,770
80% 81.4% 99,157 100,900
70% 69.8% 86,763 86,501
60% 58.6% 74,368 72,580
50% 50.1% 61,973 62,142
40% 39.8% 49,579 49,284
30% 29.9% 37,184 37,081
20% 20.3% 24,789 25,183
10% 10.2% 12,395 12,616
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,893
Calibration 2     125,769
Calibration 3     127,243
ssj_ops@calibrated=126,506
100% 99.7% 126,506 126,106
90% 91.2% 113,855 115,350
80% 80.8% 101,205 102,222
70% 70.5% 88,554 89,241
60% 60.8% 75,904 76,854
50% 49.7% 63,253 62,929
40% 40.2% 50,602 50,813
30% 30.2% 37,952 38,162
20% 19.8% 25,301 25,017
10% 10.0% 12,651 12,608
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,084
Calibration 2     124,550
Calibration 3     125,654
ssj_ops@calibrated=125,102
100% 100.2% 125,102 125,332
90% 92.0% 112,592 115,093
80% 81.3% 100,082 101,752
70% 70.7% 87,571 88,458
60% 60.7% 75,061 75,976
50% 50.1% 62,551 62,620
40% 39.8% 50,041 49,821
30% 29.6% 37,531 37,019
20% 19.5% 25,020 24,451
10% 10.0% 12,510 12,474
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,485
Calibration 2     126,681
Calibration 3     127,406
ssj_ops@calibrated=127,044
100% 100.1% 127,044 127,212
90% 90.8% 114,339 115,376
80% 81.2% 101,635 103,192
70% 69.5% 88,931 88,295
60% 60.1% 76,226 76,316
50% 49.7% 63,522 63,093
40% 40.3% 50,817 51,255
30% 29.9% 38,113 37,987
20% 20.2% 25,409 25,647
10% 10.3% 12,704 13,044
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,320
Calibration 2     123,966
Calibration 3     125,339
ssj_ops@calibrated=124,653
100% 100.2% 124,653 124,885
90% 91.8% 112,187 114,476
80% 80.9% 99,722 100,819
70% 70.1% 87,257 87,352
60% 60.3% 74,792 75,173
50% 49.4% 62,326 61,545
40% 40.0% 49,861 49,897
30% 29.9% 37,396 37,262
20% 20.3% 24,931 25,274
10% 9.8% 12,465 12,192
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,716
Calibration 2     122,004
Calibration 3     122,795
ssj_ops@calibrated=122,400
100% 99.8% 122,400 122,215
90% 90.9% 110,160 111,281
80% 81.5% 97,920 99,783
70% 70.4% 85,680 86,161
60% 60.2% 73,440 73,732
50% 50.0% 61,200 61,169
40% 40.5% 48,960 49,512
30% 29.8% 36,720 36,480
20% 20.1% 24,480 24,561
10% 10.2% 12,240 12,533
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,951
Calibration 2     122,436
Calibration 3     123,471
ssj_ops@calibrated=122,954
100% 99.6% 122,954 122,402
90% 90.7% 110,658 111,532
80% 82.5% 98,363 101,437
70% 70.1% 86,068 86,134
60% 59.5% 73,772 73,125
50% 49.4% 61,477 60,726
40% 40.5% 49,182 49,784
30% 30.2% 36,886 37,184
20% 20.1% 24,591 24,757
10% 9.8% 12,295 12,086
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,682
Calibration 2     125,222
Calibration 3     126,142
ssj_ops@calibrated=125,682
100% 99.9% 125,682 125,595
90% 90.6% 113,114 113,867
80% 81.1% 100,545 101,870
70% 69.1% 87,977 86,785
60% 60.2% 75,409 75,687
50% 50.1% 62,841 62,910
40% 39.7% 50,273 49,916
30% 30.4% 37,705 38,245
20% 20.2% 25,136 25,392
10% 10.0% 12,568 12,515
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,225
Calibration 2     122,975
Calibration 3     124,583
ssj_ops@calibrated=123,779
100% 99.6% 123,779 123,283
90% 89.2% 111,401 110,404
80% 81.1% 99,023 100,358
70% 71.1% 86,645 88,007
60% 59.3% 74,267 73,425
50% 50.1% 61,889 62,035
40% 40.0% 49,512 49,516
30% 29.9% 37,134 37,006
20% 20.1% 24,756 24,820
10% 10.0% 12,378 12,400
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,770
Calibration 2     122,309
Calibration 3     123,652
ssj_ops@calibrated=122,980
100% 100.2% 122,980 123,254
90% 91.5% 110,682 112,549
80% 81.6% 98,384 100,333
70% 70.1% 86,086 86,202
60% 60.1% 73,788 73,929
50% 49.4% 61,490 60,789
40% 40.2% 49,192 49,429
30% 30.2% 36,894 37,195
20% 20.3% 24,596 24,974
10% 9.9% 12,298 12,233
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,468
Calibration 2     123,148
Calibration 3     125,094
ssj_ops@calibrated=124,121
100% 99.6% 124,121 123,622
90% 91.4% 111,709 113,456
80% 81.8% 99,297 101,511
70% 70.1% 86,885 86,979
60% 60.1% 74,473 74,614
50% 49.7% 62,060 61,736
40% 40.6% 49,648 50,361
30% 30.2% 37,236 37,542
20% 19.7% 24,824 24,425
10% 9.9% 12,412 12,236
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,109
Calibration 2     124,570
Calibration 3     125,697
ssj_ops@calibrated=125,133
100% 99.8% 125,133 124,878
90% 91.8% 112,620 114,898
80% 82.0% 100,107 102,617
70% 70.2% 87,593 87,854
60% 59.4% 75,080 74,391
50% 50.2% 62,567 62,772
40% 40.1% 50,053 50,202
30% 30.1% 37,540 37,650
20% 19.5% 25,027 24,407
10% 10.2% 12,513 12,812
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,727
Calibration 2     125,281
Calibration 3     126,904
ssj_ops@calibrated=126,092
100% 99.8% 126,092 125,868
90% 91.7% 113,483 115,637
80% 80.9% 100,874 102,000
70% 69.5% 88,265 87,610
60% 60.5% 75,655 76,306
50% 50.3% 63,046 63,462
40% 40.5% 50,437 51,093
30% 29.7% 37,828 37,409
20% 19.9% 25,218 25,076
10% 9.9% 12,609 12,454
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,601
Calibration 2     122,665
Calibration 3     123,478
ssj_ops@calibrated=123,072
100% 99.7% 123,072 122,672
90% 91.9% 110,765 113,063
80% 80.4% 98,458 99,004
70% 70.3% 86,150 86,507
60% 60.1% 73,843 73,947
50% 49.8% 61,536 61,295
40% 39.7% 49,229 48,896
30% 29.5% 36,922 36,309
20% 20.0% 24,614 24,610
10% 9.7% 12,307 11,944
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,149
Calibration 2     123,568
Calibration 3     125,617
ssj_ops@calibrated=124,593
100% 100.4% 124,593 125,146
90% 91.9% 112,133 114,530
80% 81.1% 99,674 100,989
70% 69.7% 87,215 86,879
60% 60.8% 74,756 75,692
50% 49.9% 62,296 62,170
40% 39.9% 49,837 49,749
30% 30.0% 37,378 37,430
20% 19.9% 24,919 24,845
10% 10.2% 12,459 12,725
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,358
Calibration 2     124,413
Calibration 3     124,456
ssj_ops@calibrated=124,434
100% 99.8% 124,434 124,222
90% 91.4% 111,991 113,673
80% 82.3% 99,547 102,447
70% 70.4% 87,104 87,596
60% 59.9% 74,661 74,589
50% 49.5% 62,217 61,640
40% 39.7% 49,774 49,370
30% 29.9% 37,330 37,186
20% 19.9% 24,887 24,724
10% 10.2% 12,443 12,658
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,594
Calibration 2     121,606
Calibration 3     122,927
ssj_ops@calibrated=122,267
100% 99.7% 122,267 121,936
90% 91.1% 110,040 111,401
80% 82.6% 97,813 100,950
70% 70.2% 85,587 85,864
60% 60.8% 73,360 74,396
50% 49.7% 61,133 60,756
40% 39.7% 48,907 48,589
30% 30.4% 36,680 37,118
20% 19.2% 24,453 23,533
10% 10.3% 12,227 12,621
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,751
Calibration 2     121,885
Calibration 3     123,447
ssj_ops@calibrated=122,666
100% 99.9% 122,666 122,522
90% 91.6% 110,400 112,391
80% 81.6% 98,133 100,155
70% 70.5% 85,866 86,510
60% 59.2% 73,600 72,652
50% 50.2% 61,333 61,539
40% 40.0% 49,067 49,024
30% 30.0% 36,800 36,784
20% 20.1% 24,533 24,605
10% 9.9% 12,267 12,174
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,021
Calibration 2     120,629
Calibration 3     121,374
ssj_ops@calibrated=121,001
100% 99.7% 121,001 120,619
90% 90.7% 108,901 109,771
80% 81.8% 96,801 98,934
70% 70.5% 84,701 85,282
60% 60.3% 72,601 72,965
50% 49.4% 60,501 59,781
40% 39.9% 48,400 48,308
30% 30.4% 36,300 36,785
20% 19.5% 24,200 23,540
10% 10.2% 12,100 12,300
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,413
Calibration 2     123,861
Calibration 3     125,152
ssj_ops@calibrated=124,506
100% 99.3% 124,506 123,659
90% 91.3% 112,056 113,674
80% 82.5% 99,605 102,720
70% 69.7% 87,155 86,782
60% 59.5% 74,704 74,111
50% 50.1% 62,253 62,397
40% 39.9% 49,803 49,720
30% 29.8% 37,352 37,050
20% 20.1% 24,901 25,016
10% 10.3% 12,451 12,837
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,405
Calibration 2     124,280
Calibration 3     125,782
ssj_ops@calibrated=125,031
100% 100.0% 125,031 125,007
90% 91.4% 112,528 114,231
80% 82.0% 100,025 102,463
70% 69.5% 87,522 86,948
60% 60.2% 75,019 75,215
50% 50.0% 62,516 62,502
40% 39.8% 50,012 49,732
30% 30.0% 37,509 37,457
20% 19.8% 25,006 24,787
10% 10.2% 12,503 12,733
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.113' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,927
Calibration 2     124,689
Calibration 3     126,017
ssj_ops@calibrated=125,353
100% 100.1% 125,353 125,534
90% 91.2% 112,818 114,285
80% 81.4% 100,282 102,014
70% 69.7% 87,747 87,340
60% 60.1% 75,212 75,294
50% 49.8% 62,677 62,456
40% 39.8% 50,141 49,949
30% 29.9% 37,606 37,515
20% 19.8% 25,071 24,765
10% 10.0% 12,535 12,529
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.114' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,001
Calibration 2     123,503
Calibration 3     124,070
ssj_ops@calibrated=123,787
100% 99.2% 123,787 122,792
90% 91.2% 111,408 112,872
80% 81.5% 99,029 100,842
70% 69.7% 86,651 86,255
60% 60.2% 74,272 74,567
50% 50.5% 61,893 62,461
40% 39.6% 49,515 49,042
30% 29.9% 37,136 36,966
20% 19.6% 24,757 24,234
10% 9.8% 12,379 12,131
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.115' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,775
Calibration 2     122,705
Calibration 3     124,415
ssj_ops@calibrated=123,560
100% 99.9% 123,560 123,385
90% 91.2% 111,204 112,743
80% 80.3% 98,848 99,235
70% 71.1% 86,492 87,790
60% 60.1% 74,136 74,248
50% 50.0% 61,780 61,734
40% 39.8% 49,424 49,159
30% 29.8% 37,068 36,808
20% 20.0% 24,712 24,768
10% 9.7% 12,356 12,027
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.116' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,393
Calibration 2     121,236
Calibration 3     122,200
ssj_ops@calibrated=121,718
100% 99.8% 121,718 121,430
90% 90.3% 109,546 109,856
80% 81.0% 97,374 98,647
70% 70.0% 85,202 85,202
60% 60.5% 73,031 73,621
50% 50.2% 60,859 61,156
40% 40.2% 48,687 48,970
30% 29.4% 36,515 35,786
20% 19.9% 24,344 24,211
10% 9.8% 12,172 11,889
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.117' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,059
Calibration 2     124,913
Calibration 3     126,482
ssj_ops@calibrated=125,697
100% 99.7% 125,697 125,307
90% 91.5% 113,128 115,016
80% 81.0% 100,558 101,850
70% 69.8% 87,988 87,734
60% 59.9% 75,418 75,242
50% 50.0% 62,849 62,802
40% 40.1% 50,279 50,388
30% 30.4% 37,709 38,222
20% 19.8% 25,139 24,936
10% 10.2% 12,570 12,883
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.118' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,932
Calibration 2     124,215
Calibration 3     124,923
ssj_ops@calibrated=124,569
100% 99.5% 124,569 124,006
90% 91.0% 112,112 113,307
80% 82.1% 99,655 102,279
70% 70.3% 87,198 87,597
60% 60.0% 74,741 74,691
50% 50.5% 62,284 62,852
40% 40.2% 49,828 50,091
30% 30.2% 37,371 37,648
20% 19.9% 24,914 24,728
10% 9.9% 12,457 12,312
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.119' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,245
Calibration 2     121,662
Calibration 3     122,865
ssj_ops@calibrated=122,263
100% 99.4% 122,263 121,530
90% 91.3% 110,037 111,611
80% 81.9% 97,811 100,167
70% 69.7% 85,584 85,270
60% 60.2% 73,358 73,574
50% 49.6% 61,132 60,609
40% 40.1% 48,905 49,037
30% 30.4% 36,679 37,195
20% 20.2% 24,453 24,636
10% 10.2% 12,226 12,435
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.120' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,404
Calibration 2     123,269
Calibration 3     124,088
ssj_ops@calibrated=123,679
100% 99.2% 123,679 122,661
90% 91.8% 111,311 113,558
80% 81.6% 98,943 100,973
70% 70.3% 86,575 86,953
60% 60.9% 74,207 75,320
50% 49.5% 61,839 61,201
40% 39.6% 49,471 49,021
30% 29.8% 37,104 36,851
20% 20.0% 24,736 24,707
10% 9.8% 12,368 12,153
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.121' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,846
Calibration 2     124,075
Calibration 3     124,768
ssj_ops@calibrated=124,422
100% 99.6% 124,422 123,962
90% 91.3% 111,979 113,569
80% 81.2% 99,537 101,025
70% 71.0% 87,095 88,302
60% 60.7% 74,653 75,556
50% 49.3% 62,211 61,287
40% 39.7% 49,769 49,337
30% 29.9% 37,326 37,224
20% 19.8% 24,884 24,667
10% 10.0% 12,442 12,386
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.122' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,487
Calibration 2     125,093
Calibration 3     126,556
ssj_ops@calibrated=125,825
100% 99.8% 125,825 125,593
90% 91.1% 113,242 114,617
80% 81.7% 100,660 102,840
70% 70.0% 88,077 88,075
60% 60.2% 75,495 75,697
50% 49.6% 62,912 62,410
40% 39.8% 50,330 50,083
30% 30.5% 37,747 38,341
20% 20.2% 25,165 25,449
10% 10.1% 12,582 12,708
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.123' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,051
Calibration 2     123,174
Calibration 3     124,364
ssj_ops@calibrated=123,769
100% 99.6% 123,769 123,264
90% 91.5% 111,392 113,295
80% 81.7% 99,015 101,101
70% 70.8% 86,638 87,665
60% 59.9% 74,261 74,131
50% 49.8% 61,884 61,675
40% 39.5% 49,508 48,922
30% 29.6% 37,131 36,592
20% 20.0% 24,754 24,715
10% 10.0% 12,377 12,427
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.124' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,542
Calibration 2     124,067
Calibration 3     124,956
ssj_ops@calibrated=124,511
100% 99.9% 124,511 124,392
90% 91.8% 112,060 114,280
80% 81.7% 99,609 101,748
70% 70.7% 87,158 88,041
60% 59.4% 74,707 74,004
50% 50.0% 62,256 62,302
40% 39.5% 49,805 49,228
30% 30.1% 37,353 37,430
20% 19.8% 24,902 24,712
10% 10.1% 12,451 12,607
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.125' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,693
Calibration 2     122,041
Calibration 3     123,004
ssj_ops@calibrated=122,523
100% 99.6% 122,523 122,033
90% 90.8% 110,270 111,252
80% 81.2% 98,018 99,462
70% 70.2% 85,766 86,026
60% 59.4% 73,514 72,834
50% 49.3% 61,261 60,430
40% 39.9% 49,009 48,847
30% 30.2% 36,757 37,028
20% 19.9% 24,505 24,409
10% 10.0% 12,252 12,191
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.126' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,107
Calibration 2     123,201
Calibration 3     124,460
ssj_ops@calibrated=123,830
100% 99.9% 123,830 123,693
90% 91.0% 111,447 112,699
80% 81.8% 99,064 101,281
70% 69.1% 86,681 85,542
60% 59.3% 74,298 73,419
50% 49.1% 61,915 60,739
40% 39.6% 49,532 49,041
30% 30.1% 37,149 37,262
20% 20.1% 24,766 24,947
10% 9.9% 12,383 12,291
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.127' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,391
Calibration 2     121,885
Calibration 3     122,773
ssj_ops@calibrated=122,329
100% 100.2% 122,329 122,605
90% 91.3% 110,096 111,639
80% 80.3% 97,863 98,251
70% 70.2% 85,630 85,864
60% 59.7% 73,397 73,004
50% 49.7% 61,165 60,781
40% 40.3% 48,932 49,252
30% 29.9% 36,699 36,531
20% 20.3% 24,466 24,790
10% 10.0% 12,233 12,199
Active Idle   0 0
Graph of results
JVM 'WIN-Q3AQLKAF6EB.128' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,716
Calibration 2     118,786
Calibration 3     119,962
ssj_ops@calibrated=119,374
100% 100.0% 119,374 119,401
90% 91.3% 107,437 108,966
80% 81.0% 95,499 96,715
70% 69.9% 83,562 83,417
60% 60.1% 71,625 71,746
50% 50.5% 59,687 60,311
40% 40.1% 47,750 47,822
30% 30.0% 35,812 35,825
20% 20.0% 23,875 23,932
10% 10.4% 11,937 12,462
Active Idle   0 0
Graph of results
