IEIT Systems Co., Ltd. NF5280M7 SPECpower_ssj2008 = 16,654 overall ssj_ops/watt
Test Sponsor: IEIT Systems Co., Ltd. SPEC License #: 3358 Test Method: Single Node
Tested By: IEIT Systems Co., Ltd. Test Location: JINAN, CHINA Test Date: Mar 28, 2024
Hardware Availability: Feb-2024 Software Availability: Sep-2023 Publication: Apr 23, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 863 20.9
Calibration 2 855 21.0
Calibration 3 864 21.1
100% 858 21.1
90% 758 21.1
80% 654 21.1
70% 573 21.2
60% 511 21.2
50% 460 21.2
40% 412 21.3
30% 344 21.6
20% 297 21.7
10% 249 21.7
Active Idle 136 21.6

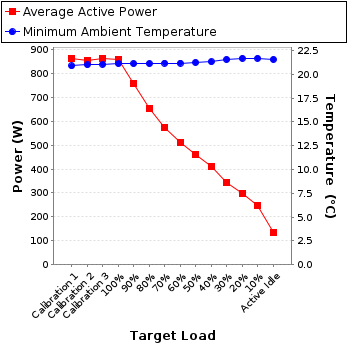

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C3TA11005E
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: J202305312300C-0167
Date of Calibration: 3-Jul-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 256 to detect the full number of available processors on the SUT
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 3.91 10.0 0.994 863 0.3%
Calibration 2 222 300.0 3.87 10.0 0.995 855 0.3%
Calibration 3 222 300.0 3.91 10.0 0.995 864 0.3%
100% 222 300.0 3.89 10.0 0.995 858 0.3%
90% 223 300.0 3.48 10.0 0.986 758 0.3%
80% 223 300.0 2.96 10.0 0.992 654 0.4%
70% 223 300.0 2.60 10.0 0.989 573 0.4%
60% 223 300.0 2.34 10.0 0.983 511 0.4%
50% 223 300.0 2.15 10.0 0.967 460 0.5%
40% 224 300.0 1.94 10.0 0.959 412 0.5%
30% 223 300.0 1.58 10.0 0.973 344 0.6%
20% 223 300.0 1.37 5.0 0.970 297 0.4%
10% 223 300.0 1.16 5.0 0.960 249 0.5%
Active Idle 224 300.0 0.676 5.0 0.899 136 0.7%
Power details for pwr1
