SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge HS5620 (Intel Xeon Gold 6548Y, 2.50 GHz) | SPECpower_ssj2008 = 12,533 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Apr 1, 2024 |
| Hardware Availability: | Jan-2024 | Software Availability: | Jan-2023 | Publication: | Apr 26, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

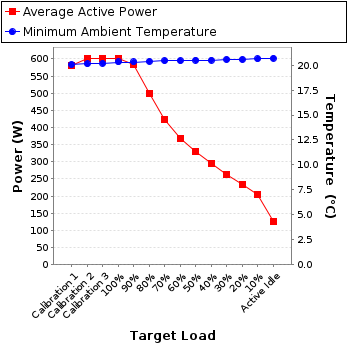

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 581 | 20.1 |
| Calibration 2 | 602 | 20.1 |
| Calibration 3 | 602 | 20.2 |
| 100% | 602 | 20.3 |
| 90% | 583 | 20.3 |
| 80% | 500 | 20.4 |
| 70% | 423 | 20.4 |
| 60% | 367 | 20.4 |
| 50% | 330 | 20.5 |
| 40% | 295 | 20.5 |
| 30% | 263 | 20.6 |
| 20% | 233 | 20.6 |
| 10% | 205 | 20.6 |
| Active Idle | 125 | 20.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91K308530 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T75067 |
| Date of Calibration: | 16-Oct-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 2.84 | 5.0 | 0.996 | 581 | 0.4% |
| Calibration 2 | 206 | 300.0 | 2.94 | 5.0 | 0.996 | 602 | 0.4% |
| Calibration 3 | 206 | 300.0 | 2.94 | 5.0 | 0.996 | 602 | 0.4% |
| 100% | 206 | 300.0 | 2.94 | 5.0 | 0.996 | 602 | 0.4% |
| 90% | 206 | 300.0 | 2.84 | 5.0 | 0.996 | 583 | 0.4% |
| 80% | 206 | 300.0 | 2.45 | 5.0 | 0.994 | 500 | 0.5% |
| 70% | 206 | 300.0 | 2.07 | 5.0 | 0.992 | 423 | 0.5% |
| 60% | 206 | 300.0 | 1.80 | 5.0 | 0.989 | 367 | 0.6% |
| 50% | 206 | 300.0 | 1.61 | 2.0 | 0.991 | 330 | 0.4% |
| 40% | 206 | 300.0 | 1.44 | 2.0 | 0.992 | 295 | 0.4% |
| 30% | 206 | 300.0 | 1.28 | 2.0 | 0.993 | 263 | 0.4% |
| 20% | 206 | 300.0 | 1.14 | 2.0 | 0.991 | 233 | 0.4% |
| 10% | 206 | 300.0 | 1.01 | 2.0 | 0.988 | 205 | 0.5% |
| Active Idle | 206 | 300.0 | 0.636 | 2.0 | 0.956 | 125 | 0.7% |
