SPECpower_ssj2008
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL320 Gen11 | SPECpower_ssj2008 = 14,912 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 28, 2024 |
| Hardware Availability: | Feb-2024 | Software Availability: | Jan-2024 | Publication: | May 2, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

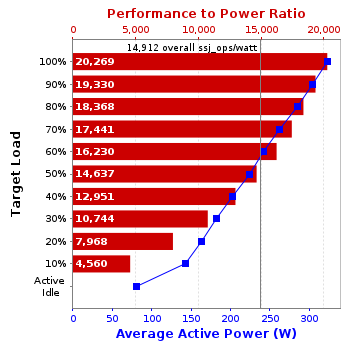

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.1% | 6,549,624 | 323 | 20,269 |
| 90% | 89.9% | 5,883,065 | 304 | 19,330 |
| 80% | 80.1% | 5,240,874 | 285 | 18,368 |
| 70% | 70.0% | 4,582,505 | 263 | 17,441 |
| 60% | 60.0% | 3,928,552 | 242 | 16,230 |
| 50% | 50.0% | 3,275,124 | 224 | 14,637 |
| 40% | 40.0% | 2,619,831 | 202 | 12,951 |
| 30% | 30.0% | 1,960,315 | 182 | 10,744 |
| 20% | 19.9% | 1,303,794 | 164 | 7,968 |
| 10% | 10.0% | 654,161 | 143 | 4,560 |
| Active Idle | 0 | 80.7 | 0 | |
| ∑ssj_ops / ∑power = | 14,912 | |||
| Set Identifier: | SUT |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | SUT |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett Packard Enterprise |
| Model: | ProLiant DL320 Gen11 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon Platinum 8581V 2.00 GHz (Intel Turbo Boost Technology up to 3.9 GHz) |
| CPU Characteristics: | 60-Core, 2.00 GHz, 300 MB L3 Cache |
| CPU Frequency (MHz): | 2000 |
| CPU(s) Enabled: | 60 cores, 1 chip, 60 cores/chip |
| Hardware Threads: | 120 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 48 KB D on chip per core |
| Secondary Cache: | 2 MB I+D on chip per core |
| Tertiary Cache: | 300 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 128 |
| # and size of DIMM: | 8 x 16384 MB |
| Memory Details: | 8 x 16 GB 1Rx8 PC5-4800; slots 1, 3, 5, 7, 10, 12, 14 and 16 |
| Power Supply Quantity and Rating (W): | 1 x 800 |
| Power Supply Details: | HP 800W Flex Slot Titanium Power Supply Kit |
| Disk Drive: | 1 x 480GB M.2 SSD SATA (P47818-B21) |
| Disk Controller: | embedded SATA |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Broadcom 5720 1GbE 2p BASE-T LOM Adapter |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Microsoft Windows Server 2022 Datacenter |
| OS Version: | Version 21H2 (OS Build 20348.1129) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing) |
| JVM Command-line Options: | -server -Xms1600m -Xmx1600m -Xmn1400m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap |
| JVM Affinity: | start /NODE [0,1] /AFFINITY [0x3-0xC00000000000000] |
| JVM Instances: | 60 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | U63 v2.20 (02/01/2024) |
| Management Firmware Version: | 1.57 Feb 27 2024 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett Packard Enterprise |
| Model: | ProLiant DL360 Gen9 |
| CPU Description: | 2 x Intel Xeon E5-2660 v3 |
| Memory amount (GB): | 128 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2019 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | 1.8.0_74-b02 (build 25.74-b02, mixed mode) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB45371 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-HC75N-140-1 |
| Date of Calibration: | 16-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 323 | 25.2 |
| 90% | 304 | 25.1 |
| 80% | 285 | 25.1 |
| 70% | 263 | 25.3 |
| 60% | 242 | 25.2 |
| 50% | 224 | 25.2 |
| 40% | 202 | 25.4 |
| 30% | 182 | 25.2 |
| 20% | 164 | 25.2 |
| 10% | 143 | 25.2 |
| Active Idle | 80.7 | 25.2 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 25.1 | 132 |

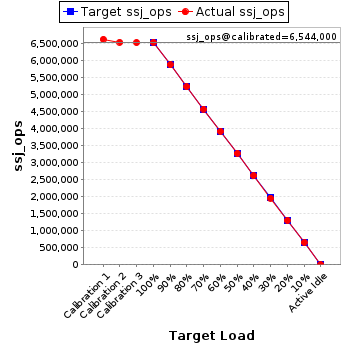

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 6,637,155 | ||
| Calibration 2 | 6,548,722 | ||
| Calibration 3 | 6,539,277 | ||
| ssj_ops@calibrated=6,544,000 | |||
| 100% | 100.1% | 6,544,000 | 6,549,624 |
| 90% | 89.9% | 5,889,600 | 5,883,065 |
| 80% | 80.1% | 5,235,200 | 5,240,874 |
| 70% | 70.0% | 4,580,800 | 4,582,505 |
| 60% | 60.0% | 3,926,400 | 3,928,552 |
| 50% | 50.0% | 3,272,000 | 3,275,124 |
| 40% | 40.0% | 2,617,600 | 2,619,831 |
| 30% | 30.0% | 1,963,200 | 1,960,315 |
| 20% | 19.9% | 1,308,800 | 1,303,794 |
| 10% | 10.0% | 654,400 | 654,161 |
| Active Idle | 0 | 0 | |
