Lenovo Global Technology ThinkSystem SD535 V3 ssj_ops@100% = 57,307,256
ssj_ops@100% per Host = 14,326,814
ssj_ops@100% per JVM = 223,856
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 26, 2024
Hardware Availability: May-2024 Software Availability: Jan-2024 Publication: Apr 23, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,857,677
Calibration 2     57,600,257
Calibration 3     57,597,732
ssj_ops@calibrated=57,598,994
100% 99.5% 57,598,994 57,307,256
90% 90.1% 51,839,095 51,869,090
80% 78.9% 46,079,195 45,473,465
70% 70.0% 40,319,296 40,293,091
60% 60.0% 34,559,397 34,548,462
50% 49.9% 28,799,497 28,752,775
40% 40.0% 23,039,598 23,048,154
30% 30.0% 17,279,698 17,255,989
20% 20.0% 11,519,799 11,534,251
10% 10.0% 5,759,899 5,763,292
Active Idle   0 0

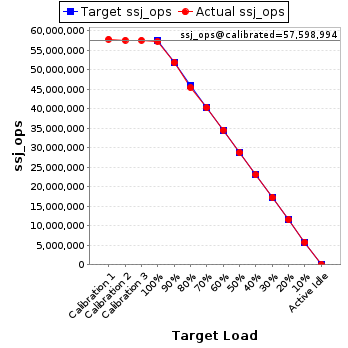

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 4 512 1,024 768 4 256
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ThinkSystem SD535 V3
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 2700
Power Supply Details: Lenovo
Network Switch: None
Network Switch Details: None
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware per Node
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD535 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754
CPU Characteristics: 128-Core, AMD Core Performance Boost up to 3.10GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 1 chip, 128 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 1Rx8 PC5-4800B-R; slots 1 to 12 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10GBASE-T 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2(OS Build 20348.2227)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:InlineSmallCode=3900 -XX:AutoBoxCacheMax=20000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: start /NODE [0-15] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: GPE103H
Management Firmware Version: QGX319Q
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5034129
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
WIN-AE4QENU6B75 14,285,975
WIN-B1JR5I5AHQQ 14,346,293
WIN-QKBL1DI75TG 14,343,836
WIN-R1IO8FMLLN3 14,331,151
ssj_ops@100% 57,307,256
ssj_ops@100% per Host 14,326,814
ssj_ops@100% per JVM 223,856

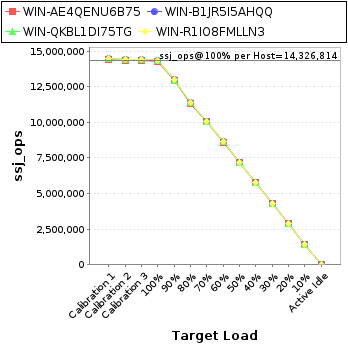

Graph of per-host results

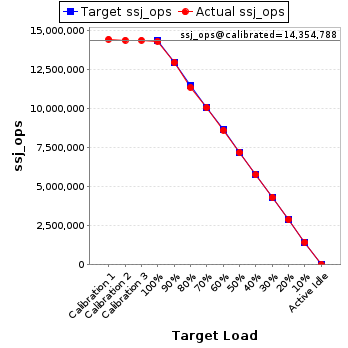

Host 'WIN-AE4QENU6B75' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,415,709
Calibration 2     14,356,012
Calibration 3     14,353,564
ssj_ops@calibrated=14,354,788
100% 99.5% 14,354,788 14,285,975
90% 90.1% 12,919,309 12,927,763
80% 79.0% 11,483,830 11,341,369
70% 69.9% 10,048,351 10,037,672
60% 59.9% 8,612,873 8,603,731
50% 50.0% 7,177,394 7,175,086
40% 40.0% 5,741,915 5,744,972
30% 30.0% 4,306,436 4,304,125
20% 20.0% 2,870,958 2,876,778
10% 10.0% 1,435,479 1,436,546
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-B1JR5I5AHQQ' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,468,249
Calibration 2     14,418,692
Calibration 3     14,410,735
ssj_ops@calibrated=14,414,713
100% 99.5% 14,414,713 14,346,293
90% 90.2% 12,973,242 12,996,686
80% 78.8% 11,531,771 11,358,192
70% 70.0% 10,090,299 10,088,764
60% 60.0% 8,648,828 8,644,610
50% 49.8% 7,207,357 7,183,799
40% 40.0% 5,765,885 5,764,739
30% 29.9% 4,324,414 4,316,418
20% 20.0% 2,882,943 2,886,482
10% 10.0% 1,441,471 1,440,325
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-QKBL1DI75TG' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,501,551
Calibration 2     14,407,086
Calibration 3     14,417,737
ssj_ops@calibrated=14,412,412
100% 99.5% 14,412,412 14,343,836
90% 89.9% 12,971,171 12,961,256
80% 79.0% 11,529,929 11,388,701
70% 69.9% 10,088,688 10,077,952
60% 60.0% 8,647,447 8,645,875
50% 49.9% 7,206,206 7,194,614
40% 40.0% 5,764,965 5,767,942
30% 30.0% 4,323,724 4,319,374
20% 20.0% 2,882,482 2,884,536
10% 10.0% 1,441,241 1,442,332
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-R1IO8FMLLN3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,472,168
Calibration 2     14,418,468
Calibration 3     14,415,696
ssj_ops@calibrated=14,417,082
100% 99.4% 14,417,082 14,331,151
90% 90.1% 12,975,373 12,983,384
80% 79.0% 11,533,665 11,385,202
70% 70.0% 10,091,957 10,088,703
60% 60.0% 8,650,249 8,654,246
50% 49.9% 7,208,541 7,199,276
40% 40.0% 5,766,833 5,770,501
30% 29.9% 4,325,124 4,316,073
20% 20.0% 2,883,416 2,886,455
10% 10.0% 1,441,708 1,444,089
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
