Lenovo Global Technology ThinkSystem SD535 V3 ssj_ops@100% = 56,099,220
ssj_ops@100% per Host = 14,024,805
ssj_ops@100% per JVM = 219,138
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 25, 2024
Hardware Availability: May-2024 Software Availability: Jan-2024 Publication: Apr 23, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     56,546,055
Calibration 2     56,378,638
Calibration 3     56,444,337
ssj_ops@calibrated=56,411,487
100% 99.4% 56,411,487 56,099,220
90% 89.2% 50,770,339 50,341,177
80% 78.9% 45,129,190 44,512,227
70% 70.0% 39,488,041 39,495,868
60% 60.0% 33,846,892 33,838,931
50% 50.0% 28,205,744 28,195,864
40% 40.0% 22,564,595 22,574,733
30% 30.0% 16,923,446 16,933,628
20% 20.0% 11,282,297 11,293,976
10% 10.0% 5,641,149 5,646,860
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 4 512 1,024 768 4 256
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ThinkSystem SD535 V3
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 2700
Power Supply Details: Lenovo
Network Switch: None
Network Switch Details: None
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware per Node
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD535 V3
Form Factor: 1U
CPU Name: AMD EPYC 9754
CPU Characteristics: 128-Core, AMD Core Performance Boost up to 3.10GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 1 chip, 128 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 1Rx8 PC5-4800B-R; slots 1 to 12 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960GB M.2 SSD
Disk Controller: Integrated NVMe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 10GBASE-T 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP4
OS Version: 5.14.21-150400.22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode)
JVM Command-line Options: -server -Xmn1900m -Xms2048m -Xmx2048m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:InlineSmallCode=3900 -XX:AutoBoxCacheMax=20000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 128, physicalCoreId + 129 }
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: GPE103H
Management Firmware Version: QGX319Q
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
Hilo-29 14,004,128
Hilo-30 14,017,938
Hilo-31 13,989,978
Hilo-32 14,087,176
ssj_ops@100% 56,099,220
ssj_ops@100% per Host 14,024,805
ssj_ops@100% per JVM 219,138

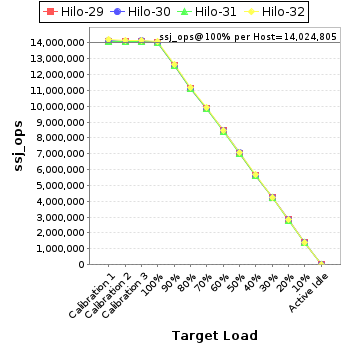

Graph of per-host results

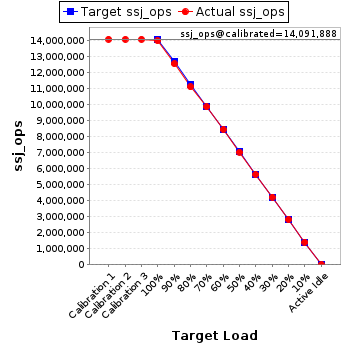

Host 'Hilo-29' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,094,196
Calibration 2     14,089,019
Calibration 3     14,094,757
ssj_ops@calibrated=14,091,888
100% 99.4% 14,091,888 14,004,128
90% 89.1% 12,682,699 12,559,791
80% 78.9% 11,273,510 11,113,112
70% 70.0% 9,864,322 9,868,315
60% 60.0% 8,455,133 8,455,410
50% 50.0% 7,045,944 7,044,127
40% 40.0% 5,636,755 5,635,053
30% 30.0% 4,227,566 4,227,204
20% 20.0% 2,818,378 2,822,214
10% 10.0% 1,409,189 1,409,626
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Hilo-30' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,116,678
Calibration 2     14,076,060
Calibration 3     14,117,763
ssj_ops@calibrated=14,096,911
100% 99.4% 14,096,911 14,017,938
90% 89.3% 12,687,220 12,588,842
80% 78.9% 11,277,529 11,122,836
70% 70.0% 9,867,838 9,866,949
60% 60.0% 8,458,147 8,463,938
50% 50.0% 7,048,456 7,048,122
40% 40.0% 5,638,765 5,636,648
30% 30.0% 4,229,073 4,230,655
20% 20.0% 2,819,382 2,820,603
10% 10.0% 1,409,691 1,411,640
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Hilo-31' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,109,571
Calibration 2     14,052,273
Calibration 3     14,062,482
ssj_ops@calibrated=14,057,378
100% 99.5% 14,057,378 13,989,978
90% 89.3% 12,651,640 12,552,158
80% 78.9% 11,245,902 11,095,682
70% 70.0% 9,840,164 9,843,862
60% 59.9% 8,434,427 8,427,126
50% 50.0% 7,028,689 7,029,315
40% 40.0% 5,622,951 5,625,975
30% 30.0% 4,217,213 4,222,639
20% 20.0% 2,811,476 2,812,402
10% 10.0% 1,405,738 1,409,026
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Hilo-32' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,225,610
Calibration 2     14,161,286
Calibration 3     14,169,335
ssj_ops@calibrated=14,165,310
100% 99.4% 14,165,310 14,087,176
90% 89.2% 12,748,779 12,640,386
80% 78.9% 11,332,248 11,180,596
70% 70.0% 9,915,717 9,916,742
60% 60.0% 8,499,186 8,492,457
50% 49.9% 7,082,655 7,074,300
40% 40.1% 5,666,124 5,677,058
30% 30.0% 4,249,593 4,253,130
20% 20.0% 2,833,062 2,838,758
10% 10.0% 1,416,531 1,416,568
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
