Lenovo Global Technology ThinkSystem SD535 V3 SPECpower_ssj2008 = 36,073 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 25, 2024
Hardware Availability: May-2024 Software Availability: Jan-2024 Publication: Apr 23, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,657 23.9
Calibration 2 1,663 24.1
Calibration 3 1,664 24.2
100% 1,313 24.4
90% 1,167 24.4
80% 997 24.2
70% 917 23.8
60% 840 23.2
50% 773 23.3
40% 708 23.7
30% 632 23.5
20% 550 23.4
10% 443 23.4
Active Idle 225 23.2

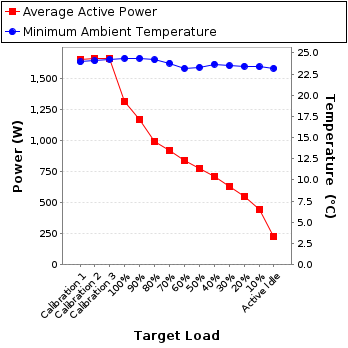

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UG05014E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202308266858A-0005
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1 PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 7.55 10.0 0.999 1,657 0.2%
Calibration 2 220 300.0 7.57 10.0 0.999 1,663 0.2%
Calibration 3 220 300.0 7.58 10.0 0.999 1,664 0.2%
100% 220 300.0 5.98 10.0 0.999 1,313 0.2%
90% 220 300.0 5.31 10.0 0.999 1,167 0.2%
80% 220 300.0 4.54 10.0 0.999 997 0.3%
70% 220 300.0 4.17 10.0 0.999 917 0.3%
60% 220 300.0 3.83 10.0 0.999 840 0.3%
50% 220 300.0 3.52 10.0 0.998 773 0.3%
40% 220 300.0 3.23 5.0 0.997 708 0.2%
30% 220 300.0 2.88 5.0 0.998 632 0.2%
20% 220 300.0 2.51 5.0 0.996 550 0.3%
10% 220 300.0 2.04 5.0 0.989 443 0.3%
Active Idle 220 300.0 1.05 5.0 0.971 225 0.5%
Power details for pwr1
