Fujitsu FUJITSU Server PRIMERGY TX1320 M6 SPECpower_ssj2008 = 10,980 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Mar 22, 2024
Hardware Availability: Apr-2024 Software Availability: Aug-2022 Publication: Apr 23, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.9% 1,188,203 85.6 13,876
90% 90.1% 1,071,548 79.9 13,419
80% 80.1% 952,747 73.8 12,912
70% 70.0% 832,889 67.6 12,319
60% 59.9% 712,301 61.4 11,603
50% 49.8% 592,276 54.8 10,806
40% 39.9% 474,069 47.6 9,951
30% 30.1% 357,893 40.7 8,791
20% 20.1% 239,231 34.7 6,887
10% 10.1% 120,383 29.0 4,146
Active Idle 0 20.6 0
∑ssj_ops / ∑power = 10,980

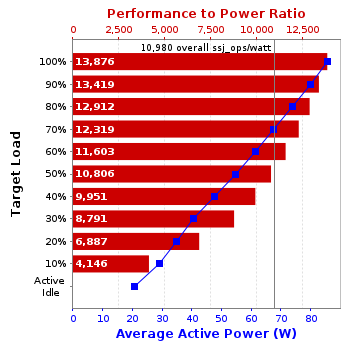

Graph of results
System Under Test
Set: 'TX1320M6'
Set Identifier: TX1320M6
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY TX1320 M6
Form Factor: Tower
CPU Name: Intel Xeon E-2488
CPU Characteristics: 8-Core, 3.20 GHz, 24 MB L3 Cache
CPU Frequency (MHz): 3200
CPU(s) Enabled: 8 cores, 1 chip, 8 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 2 x 16384 MB
Memory Details: 2 x 16 GB 1Rx8 PC5-4800B; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 280
Power Supply Details: Standard 280W Platinum PSU, S26113-E665-V71-1
Disk Drive: 1 x SSD M.2 240GB, PYBMF24YN5
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x RJ45 with integrated LEDs for fixed onboard 1Gb LAN
NICs Enabled in Firmware / OS / Connected: 1/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver
Operating System (OS): Windows Server 2022 Standard
OS Version: Version 21H2, OS build 20348.587
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.16.1+1-LTS, mixed mode)
JVM Command-line Options: -server -Xmn11500m -Xms13000m -Xmx13000m -XX:+UseLargePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:-UseAdaptiveSizePolicy -XX:+UseParallelOldGC -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:-ThreadLocalHandshakes -XX:UseAVX=0
JVM Affinity: START /AFFINITY [0xffff]
JVM Instances: 1
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: R1.0.0
Management Firmware Version: 2.50f
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX2530 M2
CPU Description: 2 x Intel Xeon E5-2643 v4
Memory amount (GB): 64
Software
Operating System (OS): Windows Server 2019 Standard
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.211-b12, mixed mode), version 1.8.0_211
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: PW3336
Serial Number: 170213562
Connectivity: RS-232
Input Connection: Default
Metrology Institute: AIST (National Institute of Advanced Science and Technology)
Accredited by: Kyosai Technos Co.,Ltd.
Calibration Label: RY236003993
Date of Calibration: 21-Jun-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 85.6 23.2
90% 79.9 23.2
80% 73.8 23.2
70% 67.6 23.3
60% 61.4 23.3
50% 54.8 23.3
40% 47.6 23.3
30% 40.7 23.3
20% 34.7 23.3
10% 29.0 23.3
Active Idle 20.6 23.3
Line Standard Minimum Temperature (°C) Elevation (m)
200V / 50 Hz / 1 phase / 2 wires 23.2 11
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,192,442
Calibration 2     1,189,887
Calibration 3     1,188,816
ssj_ops@calibrated=1,189,352
100% 99.9% 1,189,352 1,188,203
90% 90.1% 1,070,416 1,071,548
80% 80.1% 951,481 952,747
70% 70.0% 832,546 832,889
60% 59.9% 713,611 712,301
50% 49.8% 594,676 592,276
40% 39.9% 475,741 474,069
30% 30.1% 356,805 357,893
20% 20.1% 237,870 239,231
10% 10.1% 118,935 120,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
