SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY RX2530 M7 | SPECpower_ssj2008 = 15,491 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Mar 11, 2024 |
| Hardware Availability: | Apr-2024 | Software Availability: | Oct-2023 | Publication: | Apr 9, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

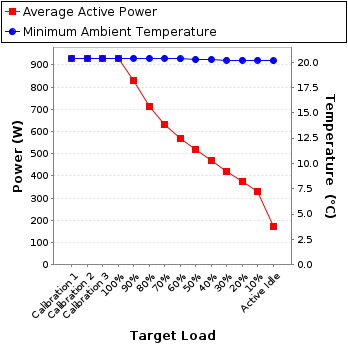

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 927 | 20.4 |
| Calibration 2 | 928 | 20.4 |
| Calibration 3 | 929 | 20.4 |
| 100% | 930 | 20.4 |
| 90% | 829 | 20.4 |
| 80% | 711 | 20.4 |
| 70% | 630 | 20.4 |
| 60% | 570 | 20.3 |
| 50% | 517 | 20.2 |
| 40% | 468 | 20.2 |
| 30% | 422 | 20.2 |
| 20% | 376 | 20.2 |
| 10% | 329 | 20.2 |
| Active Idle | 171 | 20.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170213562 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | RY236003993 |
| Date of Calibration: | 21-Jun-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |

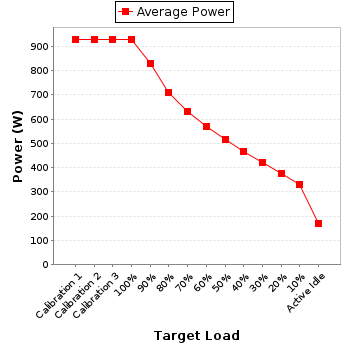

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 204 | 300.0 | 4.60 | 5.0 | 0.989 | 927 | 0.2% |
| Calibration 2 | 203 | 300.0 | 4.61 | 5.0 | 0.989 | 928 | 0.2% |
| Calibration 3 | 203 | 300.0 | 4.62 | 5.0 | 0.990 | 929 | 0.2% |
| 100% | 203 | 300.0 | 4.62 | 5.0 | 0.990 | 930 | 0.2% |
| 90% | 204 | 300.0 | 4.12 | 5.0 | 0.988 | 829 | 0.2% |
| 80% | 204 | 300.0 | 3.55 | 5.0 | 0.984 | 711 | 0.2% |
| 70% | 204 | 300.0 | 3.15 | 5.0 | 0.981 | 630 | 0.2% |
| 60% | 204 | 300.0 | 2.86 | 5.0 | 0.977 | 570 | 0.3% |
| 50% | 204 | 300.0 | 2.61 | 5.0 | 0.972 | 517 | 0.3% |
| 40% | 204 | 300.0 | 2.38 | 5.0 | 0.966 | 468 | 0.3% |
| 30% | 205 | 300.0 | 2.15 | 5.0 | 0.959 | 422 | 0.3% |
| 20% | 206 | 300.0 | 1.93 | 5.0 | 0.949 | 376 | 0.3% |
| 10% | 206 | 300.0 | 1.71 | 2.0 | 0.936 | 329 | 0.2% |
| Active Idle | 205 | 300.0 | 0.985 | 2.0 | 0.846 | 171 | 0.3% |
