SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge HS5610 (Intel Xeon Gold 6448Y, 2.10 GHz) | SPECpower_ssj2008 = 10,135 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Feb 8, 2024 |
| Hardware Availability: | Apr-2023 | Software Availability: | Aug-2022 | Publication: | Mar 26, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

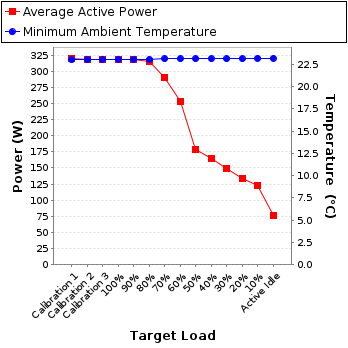

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 320 | 23.0 |
| Calibration 2 | 318 | 23.0 |
| Calibration 3 | 319 | 23.0 |
| 100% | 318 | 23.1 |
| 90% | 318 | 23.1 |
| 80% | 315 | 23.1 |
| 70% | 290 | 23.1 |
| 60% | 253 | 23.1 |
| 50% | 179 | 23.1 |
| 40% | 164 | 23.1 |
| 30% | 149 | 23.1 |
| 20% | 133 | 23.1 |
| 10% | 122 | 23.2 |
| Active Idle | 76.2 | 23.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91K308530 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T75067 |
| Date of Calibration: | 16-Oct-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |

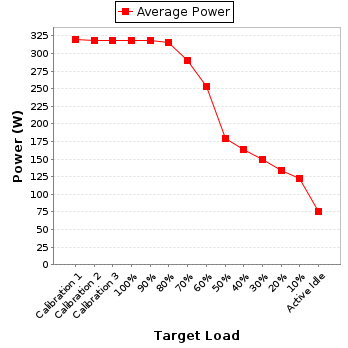

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 1.74 | 2.0 | 0.889 | 320 | 0.4% |
| Calibration 2 | 208 | 300.0 | 1.73 | 2.0 | 0.888 | 318 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.73 | 2.0 | 0.888 | 319 | 0.4% |
| 100% | 207 | 300.0 | 1.73 | 2.0 | 0.888 | 318 | 0.4% |
| 90% | 208 | 300.0 | 1.73 | 2.0 | 0.887 | 318 | 0.4% |
| 80% | 207 | 300.0 | 1.71 | 2.0 | 0.887 | 315 | 0.4% |
| 70% | 208 | 300.0 | 1.60 | 2.0 | 0.875 | 290 | 0.5% |
| 60% | 208 | 300.0 | 1.47 | 2.0 | 0.830 | 253 | 0.5% |
| 50% | 208 | 300.0 | 1.09 | 2.0 | 0.792 | 179 | 0.6% |
| 40% | 208 | 300.0 | 1.01 | 1.0 | 0.785 | 164 | 0.5% |
| 30% | 208 | 300.0 | 0.920 | 1.0 | 0.778 | 149 | 0.5% |
| 20% | 208 | 300.0 | 0.833 | 1.0 | 0.771 | 133 | 0.5% |
| 10% | 208 | 300.0 | 0.770 | 1.0 | 0.765 | 122 | 0.6% |
| Active Idle | 208 | 300.0 | 0.509 | 1.0 | 0.720 | 76.2 | 0.7% |
