Dell Inc. PowerEdge HS5610 (Intel Xeon Gold 6448Y, 2.10 GHz) SPECpower_ssj2008 = 11,564 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 6573 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Feb 20, 2024
Hardware Availability: Apr-2023 Software Availability: Aug-2022 Publication: Mar 26, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.0% 8,451,740 602 14,036
90% 90.1% 7,612,792 600 12,693
80% 79.9% 6,755,727 535 12,616
70% 70.0% 5,914,792 448 13,201
60% 59.9% 5,066,320 360 14,084
50% 49.9% 4,218,395 325 12,972
40% 40.0% 3,379,976 295 11,470
30% 30.1% 2,546,332 268 9,517
20% 20.0% 1,690,487 245 6,894
10% 10.0% 843,642 220 3,835
Active Idle 0 122 0
∑ssj_ops / ∑power = 11,564

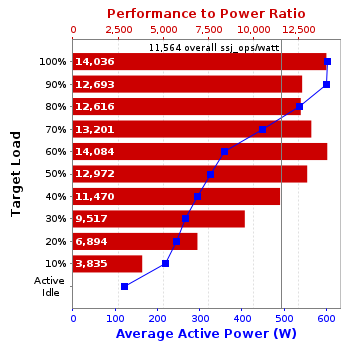

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge HS5610
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge HS5610 (Intel Xeon Gold 6448Y, 2.10 GHz)
Form Factor: 1U
CPU Name: Intel Xeon Gold 6448Y
CPU Characteristics: 32-Core, 2.10GHz, 60MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16 x 16GB 1Rx8 PC5-4800-R (Slots A1-8, B1-8 populated)
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: 1400W 80Plus Titanium, Dell p/n 1CW9G
Disk Drive: 1 x Dell DC NVMe PE8010 RI U.2 960GB Dell p/n XCDFV
Disk Controller: Integrated PCIe Controller
# and type of Network Interface Cards (NICs) Installed: Onboard 1 x Dual Port Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver power plan enabled in OS
Operating System (OS): Microsoft Windows Server 2022 Standard 21H2
OS Version: 20348.14873
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.17+10-LTS-269, mixed mode
JVM Command-line Options: -server -Xms3328m -Xmx3328m -Xmn3200m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC0000000,0x300000000,0xC00000000,0x3000000000,0xC000000000]
JVM Instances: 64
JVM Initial Heap (MB): 3328
JVM Maximum Heap (MB): 3328
JVM Address Bits: 64
Boot Firmware Version: 1.6.6
Management Firmware Version: 7.10.05.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: n/a
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc
Model: PowerEdge R450
CPU Description: Intel Xeon 4310, 2.10 GHz
Memory amount (GB): 16.0
Software
Operating System (OS): Microsoft Windows Server 2022 Datacenter
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.17+10-LTS-269, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K308530
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: TesCom
Calibration Label: T75067
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 602 22.2
90% 600 22.1
80% 535 22.2
70% 448 22.2
60% 360 22.2
50% 325 22.2
40% 295 22.3
30% 268 22.2
20% 245 22.2
10% 220 22.2
Active Idle 122 22.2
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.1 255
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     8,569,395
Calibration 2     8,445,935
Calibration 3     8,461,954
ssj_ops@calibrated=8,453,945
100% 100.0% 8,453,945 8,451,740
90% 90.1% 7,608,550 7,612,792
80% 79.9% 6,763,156 6,755,727
70% 70.0% 5,917,761 5,914,792
60% 59.9% 5,072,367 5,066,320
50% 49.9% 4,226,972 4,218,395
40% 40.0% 3,381,578 3,379,976
30% 30.1% 2,536,183 2,546,332
20% 20.0% 1,690,789 1,690,487
10% 10.0% 845,394 843,642
Active Idle   0 0

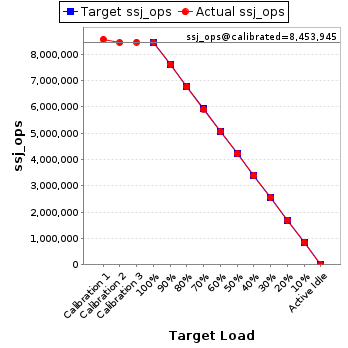

Graph of results
See the Host Performance Report for additional details.
