SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL380 Gen11 | SPECpower_ssj2008 = 16,340 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 20, 2024 |
| Hardware Availability: | Feb-2024 | Software Availability: | Oct-2023 | Publication: | Mar 12, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

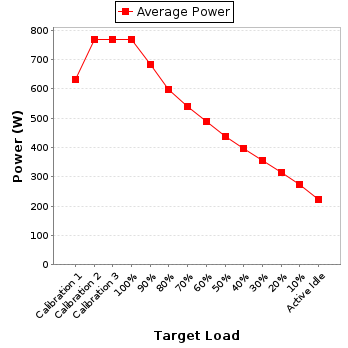

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 634 | 24.1 |
| Calibration 2 | 769 | 24.7 |
| Calibration 3 | 769 | 24.2 |
| 100% | 770 | 24.6 |
| 90% | 683 | 24.4 |
| 80% | 598 | 24.2 |
| 70% | 539 | 24.9 |
| 60% | 487 | 24.7 |
| 50% | 439 | 24.7 |
| 40% | 396 | 25.5 |
| 30% | 355 | 24.7 |
| 20% | 316 | 24.8 |
| 10% | 275 | 25.4 |
| Active Idle | 224 | 24.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310 |
| Serial Number: | C2QM22005V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-HF8LX-20-1 |
| Date of Calibration: | 19-Jul-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 3.12 | 5.0 | 0.991 | 634 | 0.4% |
| Calibration 2 | 208 | 300.0 | 3.72 | 5.0 | 0.995 | 769 | 0.3% |
| Calibration 3 | 207 | 300.0 | 3.73 | 5.0 | 0.995 | 769 | 0.3% |
| 100% | 207 | 300.0 | 3.73 | 5.0 | 0.995 | 770 | 0.3% |
| 90% | 207 | 300.0 | 3.32 | 5.0 | 0.993 | 683 | 0.3% |
| 80% | 208 | 300.0 | 2.90 | 5.0 | 0.993 | 598 | 0.4% |
| 70% | 207 | 300.0 | 2.62 | 5.0 | 0.992 | 539 | 0.4% |
| 60% | 207 | 300.0 | 2.37 | 5.0 | 0.990 | 487 | 0.4% |
| 50% | 207 | 300.0 | 2.18 | 5.0 | 0.971 | 439 | 0.5% |
| 40% | 207 | 300.0 | 1.95 | 5.0 | 0.979 | 396 | 0.5% |
| 30% | 207 | 300.0 | 1.76 | 5.0 | 0.970 | 355 | 0.6% |
| 20% | 207 | 300.0 | 1.58 | 2.0 | 0.967 | 316 | 0.3% |
| 10% | 207 | 300.0 | 1.37 | 2.0 | 0.973 | 275 | 0.4% |
| Active Idle | 207 | 300.0 | 1.12 | 2.0 | 0.962 | 224 | 0.4% |
