SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY RX2450 M2 | SPECpower_ssj2008 = 30,201 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Jan 28, 2024 |
| Hardware Availability: | Feb-2024 | Software Availability: | Oct-2021 | Publication: | Mar 12, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

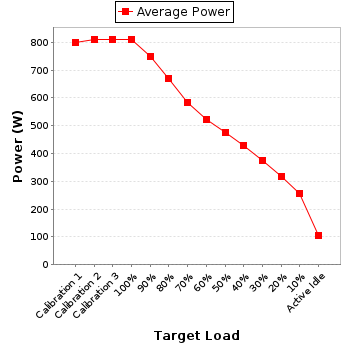

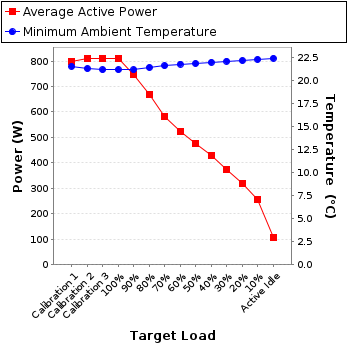

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 798 | 21.6 |
| Calibration 2 | 811 | 21.3 |
| Calibration 3 | 811 | 21.2 |
| 100% | 810 | 21.2 |
| 90% | 749 | 21.2 |
| 80% | 670 | 21.4 |
| 70% | 583 | 21.6 |
| 60% | 523 | 21.8 |
| 50% | 475 | 21.9 |
| 40% | 427 | 22.0 |
| 30% | 375 | 22.1 |
| 20% | 318 | 22.2 |
| 10% | 257 | 22.3 |
| Active Idle | 105 | 22.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170134584 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | RY233002865 |
| Date of Calibration: | 15-Mar-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 205 | 300.0 | 3.97 | 5.0 | 0.982 | 798 | 0.2% |
| Calibration 2 | 205 | 300.0 | 4.04 | 5.0 | 0.982 | 811 | 0.2% |
| Calibration 3 | 205 | 300.0 | 4.04 | 5.0 | 0.982 | 811 | 0.2% |
| 100% | 205 | 300.0 | 4.03 | 5.0 | 0.982 | 810 | 0.2% |
| 90% | 205 | 300.0 | 3.73 | 5.0 | 0.979 | 749 | 0.2% |
| 80% | 205 | 300.0 | 3.35 | 5.0 | 0.976 | 670 | 0.2% |
| 70% | 205 | 300.0 | 2.93 | 5.0 | 0.969 | 583 | 0.3% |
| 60% | 205 | 300.0 | 2.65 | 5.0 | 0.962 | 523 | 0.3% |
| 50% | 205 | 300.0 | 2.43 | 5.0 | 0.955 | 475 | 0.3% |
| 40% | 205 | 300.0 | 2.21 | 5.0 | 0.945 | 427 | 0.3% |
| 30% | 205 | 300.0 | 1.97 | 5.0 | 0.931 | 375 | 0.3% |
| 20% | 205 | 300.0 | 1.71 | 5.0 | 0.911 | 318 | 0.4% |
| 10% | 205 | 300.0 | 1.43 | 2.0 | 0.879 | 257 | 0.3% |
| Active Idle | 204 | 300.0 | 0.691 | 2.0 | 0.742 | 105 | 0.5% |
