Lenovo Global Technology ThinkEdge SE350 V2 SPECpower_ssj2008 = 8,826 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jan 18, 2024
Hardware Availability: Dec-2023 Software Availability: Jan-2024 Publication: Mar 1, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 134 24.7
Calibration 2 134 24.2
Calibration 3 134 23.6
100% 134 23.6
90% 119 24.2
80% 110 24.4
70% 101 23.8
60% 91.9 23.5
50% 86.2 23.4
40% 80.6 23.3
30% 75.7 23.8
20% 71.2 24.2
10% 65.6 24.3
Active Idle 50.3 23.9

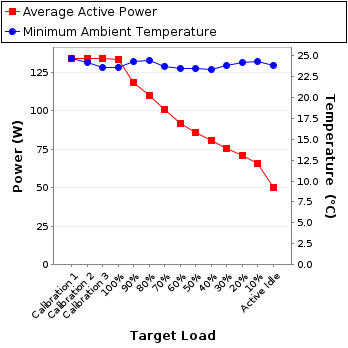

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202308266858A-0003
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 0.665 1.0 0.921 134 0.3%
Calibration 2 219 300.0 0.664 1.0 0.921 134 0.3%
Calibration 3 219 300.0 0.664 1.0 0.920 134 0.3%
100% 220 300.0 0.662 1.0 0.919 134 0.3%
90% 220 300.0 0.594 1.0 0.910 119 0.3%
80% 220 300.0 0.554 1.0 0.903 110 0.3%
70% 220 300.0 0.513 1.0 0.896 101 0.3%
60% 220 300.0 0.471 1.0 0.888 91.9 0.4%
50% 220 300.0 0.444 1.0 0.884 86.2 0.4%
40% 219 300.0 0.419 1.0 0.877 80.6 0.4%
30% 219 300.0 0.398 1.0 0.868 75.7 0.4%
20% 220 300.0 0.378 1.0 0.859 71.2 0.4%
10% 219 300.0 0.354 0.5 0.847 65.6 0.3%
Active Idle 219 300.0 0.288 0.5 0.797 50.3 0.4%

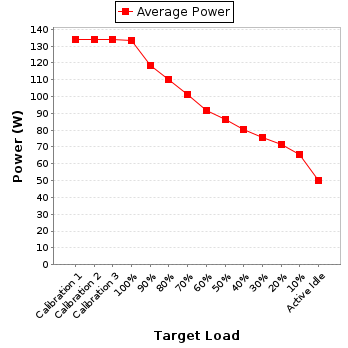

Power details for pwr1
