Lenovo Global Technology ThinkEdge SE455V3 SPECpower_ssj2008 = 24,520 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jan 25, 2024
Hardware Availability: Nov-2023 Software Availability: Jan-2023 Publication: Mar 1, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 208 23.4
Calibration 2 210 23.7
Calibration 3 210 23.8
100% 209 23.9
90% 182 23.7
80% 168 23.5
70% 148 23.5
60% 135 23.6
50% 126 23.5
40% 117 23.4
30% 107 23.5
20% 96.6 23.5
10% 83.8 23.5
Active Idle 53.2 23.6

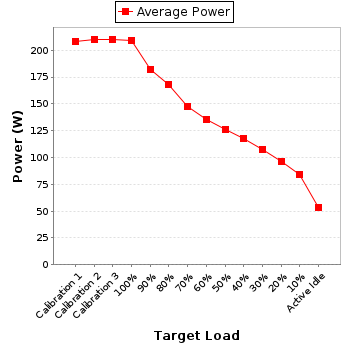

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: J202308266858A-0001-G1
Date of Calibration: 16-Oct-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 0.993 1.0 0.952 208 0.2%
Calibration 2 220 300.0 1.00 1.0 0.953 210 0.2%
Calibration 3 220 300.0 1.00 1.0 0.953 210 0.2%
100% 220 300.0 1.000 1.0 0.953 209 0.2%
90% 220 300.0 0.880 1.0 0.939 182 0.3%
80% 220 300.0 0.812 1.0 0.940 168 0.3%
70% 220 300.0 0.724 1.0 0.927 148 0.3%
60% 220 300.0 0.674 1.0 0.913 135 0.3%
50% 220 300.0 0.635 1.0 0.902 126 0.3%
40% 220 300.0 0.600 1.0 0.888 117 0.3%
30% 220 300.0 0.560 1.0 0.871 107 0.3%
20% 220 300.0 0.516 1.0 0.851 96.6 0.4%
10% 220 300.0 0.461 1.0 0.825 83.8 0.4%
Active Idle 220 300.0 0.349 1.0 0.692 53.2 0.5%
Power details for pwr1
