SPECpower_ssj2008
Aggregate Performance Report
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkSystem SD550 V3 | ssj_ops@100% = 32,812,382 ssj_ops@100% per Host = 16,406,191 ssj_ops@100% per JVM = 128,173 |
||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Multi Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Jan 16, 2024 |
| Hardware Availability: | Mar-2024 | Software Availability: | Jan-2024 | Publication: | Feb 16, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

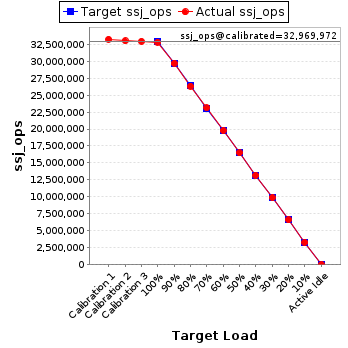

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 33,238,844 | ||
| Calibration 2 | 32,998,651 | ||
| Calibration 3 | 32,941,293 | ||
| ssj_ops@calibrated=32,969,972 | |||
| 100% | 99.5% | 32,969,972 | 32,812,382 |
| 90% | 90.0% | 29,672,975 | 29,684,428 |
| 80% | 79.9% | 26,375,977 | 26,329,013 |
| 70% | 70.1% | 23,078,980 | 23,107,346 |
| 60% | 60.0% | 19,781,983 | 19,782,562 |
| 50% | 50.0% | 16,484,986 | 16,474,647 |
| 40% | 40.0% | 13,187,989 | 13,184,452 |
| 30% | 30.0% | 9,890,992 | 9,886,177 |
| 20% | 20.0% | 6,593,994 | 6,599,084 |
| 10% | 10.0% | 3,296,997 | 3,299,578 |
| Active Idle | 0 | 0 | |
| # of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
|---|---|---|---|---|---|---|
| 2 | 4 | 256 | 512 | 1,024 | 2 | 256 |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 2 |
| Comment: | 'SUT' |
| Hardware per Node | |
|---|---|
| Hardware Vendor: | Lenovo Global Technology |
| Model: | ThinkSystem SD550 V3 |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon Platinum 8592+ |
| CPU Characteristics: | 64 Core, 1.9GHz, 320MB L3 Cache |
| CPU Frequency (MHz): | 1900 |
| CPU(s) Enabled: | 128 cores, 2 chips, 64 cores/chip |
| Hardware Threads: | 256 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 48 KB D on chip per core |
| Secondary Cache: | 128 MB I+D on chip per chip |
| Tertiary Cache: | 320 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 512 |
| # and size of DIMM: | 16 x 32768 MB |
| Memory Details: | 32GB 2Rx8 PC5-4800; slots 1 to 16 populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 960GB M.2 SSD |
| Disk Controller: | Integrated NVMe controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x ThinkSystem 1GbE RJ45 4-port |
| NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software per Node | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Microsoft Windows Server 2022 Datacenter |
| OS Version: | Version 21H2 (OS Build 20348.2227) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode) |
| JVM Command-line Options: | -server -Xmn1900m -Xms2048m -Xmx2048m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 |
| JVM Affinity: | start /NODE[0-3] /AFFINITY [0x3, 0xc, 0x30, 0xc0, 0x300, 0xc00, 0x3000, 0xc000, 0x30000, 0xc0000, 0x300000, 0xc00000, 0x3000000, 0xc000000, 0x30000000, 0xc0000000, 0x300000000, 0xc00000000, 0x3000000000, 0xc000000000, 0x30000000000, 0xc0000000000, 0x300000000000, 0xc00000000000, 0x3000000000000, 0xc000000000000, 0x30000000000000, 0xc0000000000000, 0x300000000000000, 0xc00000000000000, 0x3000000000000000, 0xc000000000000000] |
| JVM Instances: | 128 |
| JVM Initial Heap (MB): | 2048 |
| JVM Maximum Heap (MB): | 2048 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | FNE113F |
| Management Firmware Version: | USX335C |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | KB5034129 |

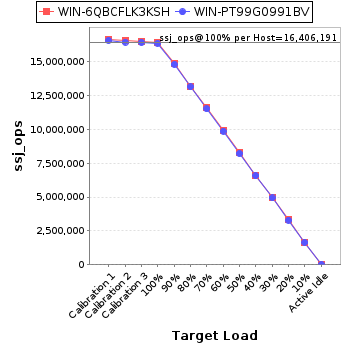

| Host | ssj_ops@100% |
|---|---|
| WIN-6QBCFLK3KSH | 16,443,817 |
| WIN-PT99G0991BV | 16,368,565 |
| ssj_ops@100% | 32,812,382 |
| ssj_ops@100% per Host | 16,406,191 |
| ssj_ops@100% per JVM | 128,173 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 16,664,965 | ||
| Calibration 2 | 16,539,749 | ||
| Calibration 3 | 16,512,889 | ||
| ssj_ops@calibrated=16,526,319 | |||
| 100% | 99.5% | 16,526,319 | 16,443,817 |
| 90% | 90.1% | 14,873,687 | 14,883,553 |
| 80% | 79.8% | 13,221,055 | 13,194,046 |
| 70% | 70.1% | 11,568,423 | 11,587,592 |
| 60% | 60.0% | 9,915,792 | 9,912,098 |
| 50% | 50.0% | 8,263,160 | 8,264,445 |
| 40% | 40.0% | 6,610,528 | 6,612,046 |
| 30% | 30.0% | 4,957,896 | 4,956,275 |
| 20% | 20.0% | 3,305,264 | 3,304,527 |
| 10% | 10.0% | 1,652,632 | 1,653,611 |
| Active Idle | 0 | 0 | |

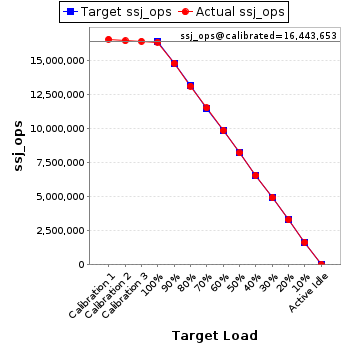

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 16,573,879 | ||
| Calibration 2 | 16,458,901 | ||
| Calibration 3 | 16,428,404 | ||
| ssj_ops@calibrated=16,443,653 | |||
| 100% | 99.5% | 16,443,653 | 16,368,565 |
| 90% | 90.0% | 14,799,287 | 14,800,876 |
| 80% | 79.9% | 13,154,922 | 13,134,968 |
| 70% | 70.1% | 11,510,557 | 11,519,754 |
| 60% | 60.0% | 9,866,192 | 9,870,463 |
| 50% | 49.9% | 8,221,826 | 8,210,201 |
| 40% | 40.0% | 6,577,461 | 6,572,406 |
| 30% | 30.0% | 4,933,096 | 4,929,902 |
| 20% | 20.0% | 3,288,731 | 3,294,557 |
| 10% | 10.0% | 1,644,365 | 1,645,968 |
| Active Idle | 0 | 0 | |
