SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkSystem SD550 V3 | SPECpower_ssj2008 = 17,045 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Multi Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Jan 16, 2024 |
| Hardware Availability: | Mar-2024 | Software Availability: | Jan-2024 | Publication: | Feb 16, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

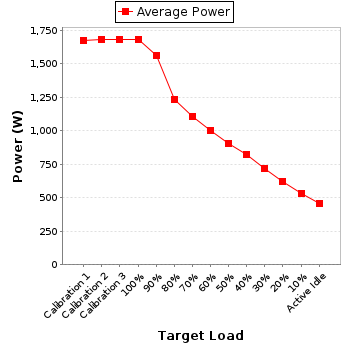

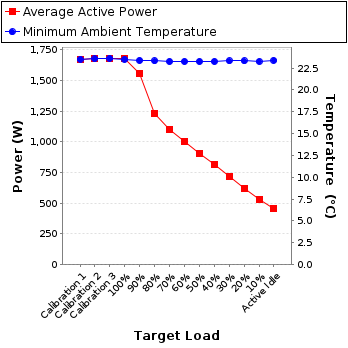

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,670 | 23.5 |
| Calibration 2 | 1,682 | 23.6 |
| Calibration 3 | 1,680 | 23.6 |
| 100% | 1,677 | 23.5 |
| 90% | 1,559 | 23.4 |
| 80% | 1,235 | 23.3 |
| 70% | 1,104 | 23.2 |
| 60% | 1,003 | 23.2 |
| 50% | 903 | 23.2 |
| 40% | 819 | 23.2 |
| 30% | 721 | 23.3 |
| 20% | 618 | 23.3 |
| 10% | 531 | 23.2 |
| Active Idle | 458 | 23.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3UD17025E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | GRG METROLOGY & TEST (BEIJING) CO.,LTD. |
| Calibration Label: | J202308266858A-0002 |
| Date of Calibration: | 16-Oct-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU 1 and PSU 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 219 | 300.0 | 7.62 | 10.0 | 0.998 | 1,670 | 0.2% |
| Calibration 2 | 219 | 300.0 | 7.68 | 10.0 | 0.998 | 1,682 | 0.2% |
| Calibration 3 | 219 | 300.0 | 7.67 | 10.0 | 0.998 | 1,680 | 0.2% |
| 100% | 219 | 300.0 | 7.66 | 10.0 | 0.998 | 1,677 | 0.2% |
| 90% | 219 | 300.0 | 7.12 | 10.0 | 0.998 | 1,559 | 0.2% |
| 80% | 219 | 300.0 | 5.65 | 10.0 | 0.996 | 1,235 | 0.2% |
| 70% | 219 | 300.0 | 5.05 | 10.0 | 0.996 | 1,104 | 0.3% |
| 60% | 219 | 300.0 | 4.60 | 10.0 | 0.994 | 1,003 | 0.3% |
| 50% | 220 | 300.0 | 4.15 | 5.0 | 0.992 | 903 | 0.2% |
| 40% | 220 | 300.0 | 3.77 | 5.0 | 0.990 | 819 | 0.2% |
| 30% | 220 | 300.0 | 3.33 | 5.0 | 0.987 | 721 | 0.2% |
| 20% | 220 | 300.0 | 2.85 | 5.0 | 0.987 | 618 | 0.3% |
| 10% | 220 | 300.0 | 2.46 | 5.0 | 0.982 | 531 | 0.3% |
| Active Idle | 220 | 300.0 | 2.14 | 5.0 | 0.974 | 458 | 0.3% |
