Lenovo Global Technology Wentian WR5220 G3 SPECpower_ssj2008 = 15,445 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jul 25, 2023
Hardware Availability: Oct-2023 Software Availability: Aug-2021 Publication: Feb 2, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 14,736,586 823 17,916
90% 90.2% 13,330,209 734 18,160
80% 79.8% 11,794,584 626 18,845
70% 70.0% 10,348,442 559 18,519
60% 59.6% 8,798,503 500 17,614
50% 50.0% 7,387,644 455 16,225
40% 40.0% 5,902,741 411 14,367
30% 30.0% 4,431,318 372 11,923
20% 20.0% 2,953,173 331 8,927
10% 10.0% 1,480,584 289 5,121
Active Idle 0 156 0
∑ssj_ops / ∑power = 15,445

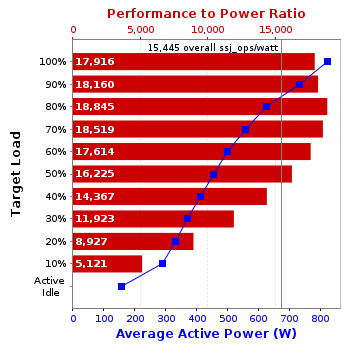

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Wentian WR5220 G3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8480+
CPU Characteristics: 56-Core, 2.0GHz, Intel Turbo Boost Technology up to 3.8GHz, 105MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 112 cores, 2 chips, 56 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
Tertiary Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 1Rx8 PC5-4800B-RD0-1010-XT; slot DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050, DIMM060, DIMM070, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, DIMM150, DIMM160, DIMM170 populated
Power Supply Quantity and Rating (W): 1 x 1200
Power Supply Details: Lenovo P/N:4N67A12970
Disk Drive: 1 x 480GB M.2 SSD (P/N:4XB7A85918)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Broadcom 5719 1GbE RJ45 4-port OCP Ethernet Adapter (P/N:4XC7A08235)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: 1809 (OS Build 17763.2114)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 20.14-b01, mixed mode),version 1.6.0_43
JVM Command-line Options: -server -Xmn1650m -Xms1800m -Xmx1800m -XX:SurvivorRatio=6 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /NODE[0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0x300, 0xC00, 0x3000, 0xC000, 0x30000, 0xC0000, 0x300000, 0xC00000, 0x3000000, 0xC000000]
JVM Instances: 112
JVM Initial Heap (MB): 1800
JVM Maximum Heap (MB): 1800
JVM Address Bits: 64
Boot Firmware Version: T8E124X-1.02
Management Firmware Version: 6.35.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo
Model: ThinkCentre M930t-N000
CPU Description: Intel(R) Core(TM)i5-10500 CPU 3.10GHz
Memory amount (GB): 16
Software
Operating System (OS): Windows 10
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 20.14-b01, mixed mode),version 1.6.0_43
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Chroma
Model: 66205
Serial Number: 662050005420
Connectivity: GPIB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: GRG METROLOGY & TEST (BEIJING) CO.,LTD.
Calibration Label: DB-GNJ001
Date of Calibration: 25-May-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.10.0-82175bac-20220817
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 823 23.2
90% 734 22.8
80% 626 22.6
70% 559 22.5
60% 500 22.4
50% 455 23.0
40% 411 22.0
30% 372 22.1
20% 331 21.8
10% 289 21.6
Active Idle 156 22.2
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 21.6 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,774,998
Calibration 2     14,772,722
Calibration 3     14,777,104
ssj_ops@calibrated=14,774,913
100% 99.7% 14,774,913 14,736,586
90% 90.2% 13,297,422 13,330,209
80% 79.8% 11,819,930 11,794,584
70% 70.0% 10,342,439 10,348,442
60% 59.6% 8,864,948 8,798,503
50% 50.0% 7,387,457 7,387,644
40% 40.0% 5,909,965 5,902,741
30% 30.0% 4,432,474 4,431,318
20% 20.0% 2,954,983 2,953,173
10% 10.0% 1,477,491 1,480,584
Active Idle   0 0

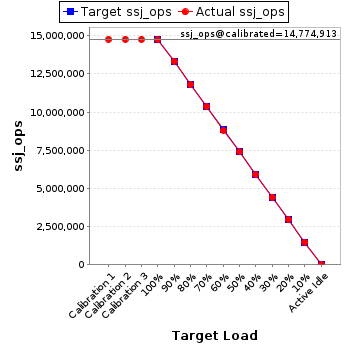

Graph of results
See the Host Performance Report for additional details.
