SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Lenovo Global Technology Wentian WR5220 G3 | SPECpower_ssj2008 = 15,788 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Jul 25, 2023 |
| Hardware Availability: | Oct-2023 | Software Availability: | Aug-2021 | Publication: | Feb 2, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

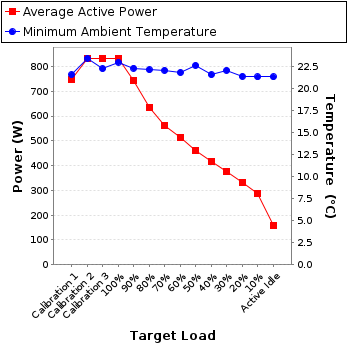

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 746 | 21.6 |
| Calibration 2 | 833 | 23.4 |
| Calibration 3 | 831 | 22.2 |
| 100% | 831 | 23.0 |
| 90% | 743 | 22.3 |
| 80% | 633 | 22.1 |
| 70% | 562 | 22.1 |
| 60% | 511 | 21.8 |
| 50% | 461 | 22.6 |
| 40% | 417 | 21.6 |
| 30% | 376 | 22.1 |
| 20% | 333 | 21.4 |
| 10% | 289 | 21.3 |
| Active Idle | 157 | 21.3 |

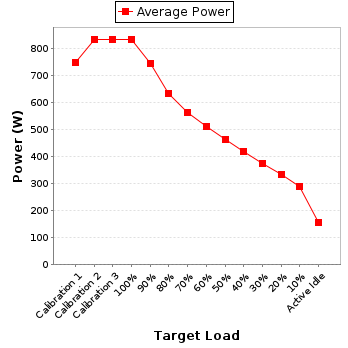

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Chroma |
| Model: | 66205 |
| Serial Number: | 662050005420 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | GRG METROLOGY & TEST (BEIJING) CO.,LTD. |
| Calibration Label: | DB-GNJ001 |
| Date of Calibration: | 25-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 226 | 300.0 | 3.32 | 5.0 | 0.994 | 746 | 0.2% |
| Calibration 2 | 226 | 300.0 | 3.70 | 5.0 | 0.995 | 833 | 0.2% |
| Calibration 3 | 227 | 300.0 | 3.68 | 5.0 | 0.995 | 831 | 0.2% |
| 100% | 227 | 300.0 | 3.68 | 5.0 | 0.995 | 831 | 0.2% |
| 90% | 227 | 300.0 | 3.29 | 5.0 | 0.994 | 743 | 0.2% |
| 80% | 227 | 300.0 | 2.82 | 5.0 | 0.991 | 633 | 0.2% |
| 70% | 227 | 300.0 | 2.50 | 5.0 | 0.991 | 562 | 0.2% |
| 60% | 227 | 300.0 | 2.28 | 5.0 | 0.988 | 511 | 0.2% |
| 50% | 227 | 300.0 | 2.07 | 5.0 | 0.984 | 461 | 0.3% |
| 40% | 228 | 300.0 | 1.85 | 5.0 | 0.988 | 417 | 0.3% |
| 30% | 228 | 300.0 | 1.67 | 5.0 | 0.985 | 376 | 0.3% |
| 20% | 228 | 300.0 | 1.49 | 5.0 | 0.981 | 333 | 0.3% |
| 10% | 228 | 300.0 | 1.30 | 5.0 | 0.976 | 289 | 0.4% |
| Active Idle | 229 | 300.0 | 0.738 | 5.0 | 0.928 | 157 | 0.6% |
