SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. RS720A-E12-RS12 | SPECpower_ssj2008 = 36,210 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Computer Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Computer Inc. | Test Location: | Taipei, Taiwan. | Test Date: | Nov 29, 2023 |
| Hardware Availability: | Jun-2023 | Software Availability: | Nov-2023 | Publication: | Jan 12, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

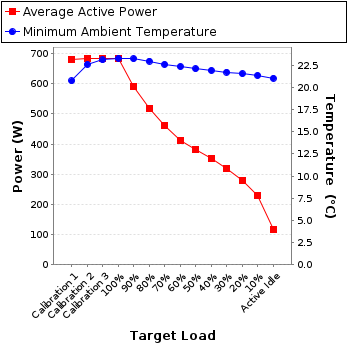

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 680 | 20.8 |
| Calibration 2 | 685 | 22.6 |
| Calibration 3 | 685 | 23.1 |
| 100% | 685 | 23.3 |
| 90% | 591 | 23.2 |
| 80% | 519 | 23.0 |
| 70% | 461 | 22.6 |
| 60% | 412 | 22.4 |
| 50% | 382 | 22.1 |
| 40% | 353 | 21.9 |
| 30% | 319 | 21.8 |
| 20% | 278 | 21.6 |
| 10% | 231 | 21.4 |
| Active Idle | 117 | 21.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91J615902 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | National Measurement Laboratory of the R.O.C. |
| Accredited by: | OMNIO Calibration Laboratory Ltd. |
| Calibration Label: | OCL-230602F02201 |
| Date of Calibration: | 2-Jun-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50 mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 220 | 300.0 | 3.13 | 10.0 | 0.985 | 680 | 0.6% |
| Calibration 2 | 220 | 300.0 | 3.16 | 10.0 | 0.985 | 685 | 0.6% |
| Calibration 3 | 220 | 300.0 | 3.16 | 10.0 | 0.985 | 685 | 0.6% |
| 100% | 220 | 300.0 | 3.16 | 10.0 | 0.985 | 685 | 0.6% |
| 90% | 220 | 300.0 | 2.75 | 10.0 | 0.977 | 591 | 0.7% |
| 80% | 220 | 300.0 | 2.42 | 10.0 | 0.977 | 519 | 0.8% |
| 70% | 220 | 300.0 | 2.13 | 5.0 | 0.984 | 461 | 0.5% |
| 60% | 220 | 300.0 | 1.90 | 5.0 | 0.984 | 412 | 0.5% |
| 50% | 220 | 300.0 | 1.76 | 5.0 | 0.984 | 382 | 0.6% |
| 40% | 221 | 300.0 | 1.63 | 5.0 | 0.982 | 353 | 0.6% |
| 30% | 221 | 300.0 | 1.48 | 5.0 | 0.979 | 319 | 0.7% |
| 20% | 221 | 300.0 | 1.29 | 5.0 | 0.974 | 278 | 0.7% |
| 10% | 221 | 300.0 | 1.07 | 5.0 | 0.969 | 231 | 0.9% |
| Active Idle | 222 | 300.0 | 0.568 | 2.0 | 0.928 | 117 | 0.7% |
